Gree GFH09K3FI

DC Inverter U-match Series Duct Type Unit
11

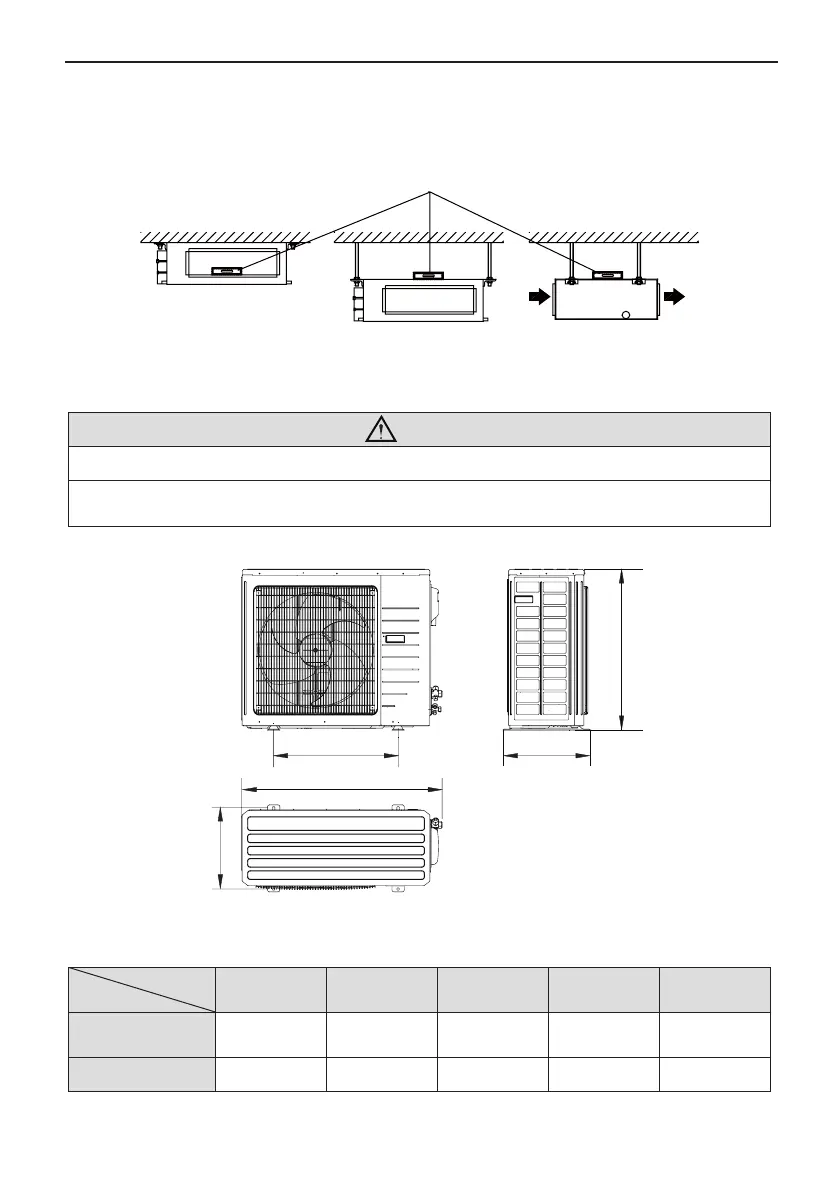

4.1.4 Leveling
The water level test must be done after installing the indoor unit to make the unit is horizontal,
as shown below.
Horizontal tester
4.2 Installation of the Outdoor Unit
WARNING
① .
Install the unit where it will not be tilted by more than 5°.
② .
During installation, if the outdoor unit has to be exposed to strong wind, it must be fixed
securely.
4.2.1 Outdoor unit dimension
D
A
B
C
E
Fig.11
Table 6 Unit: mm
Item
Model
A B C D E
GUHD09NK3FO
GUHD12NK3FO
848 320 540 540 286
GUHD18NK3FO 955 396 700 560 360
Fig.10
