DC Inverter U-match Series Duct Type Unit
27
Single phase:
09K~12K
18K~30K
36K~48K

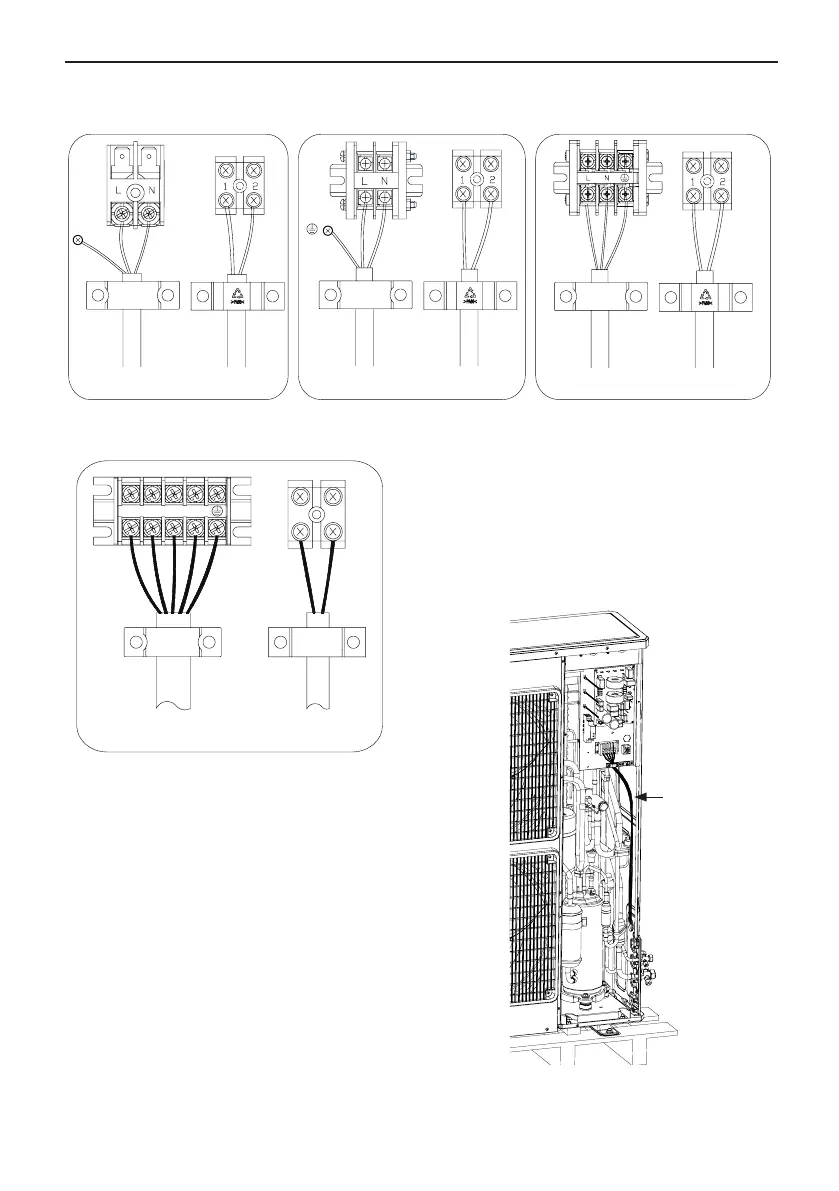

Fig.44
Power lines should go along the right side plate and
be fixed to the fixation hook with binding wires to keep
no contact with pipelines. Communication lines between
indoor and outdoor units also should go along the right side
plate and keep away from power lines.
Routing of
External
Power Lines
Fig.46
Three-phase:
36K~60K
L1 L2 L3 N
1
2
Fig.45
To Next Page
