4.Put wiring cover back and then tighten the screw.
5.Close the panel.
Installation of indoor unit
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
for a new one. Avoid extending the wire by yourself.
installation.
● For the air conditioner without plug, an air switch must be installed in the line.
The air switch should be all-pole parting and the contact parting distance should
be more than 3mm.
power connection
wire
cable-cross
hole

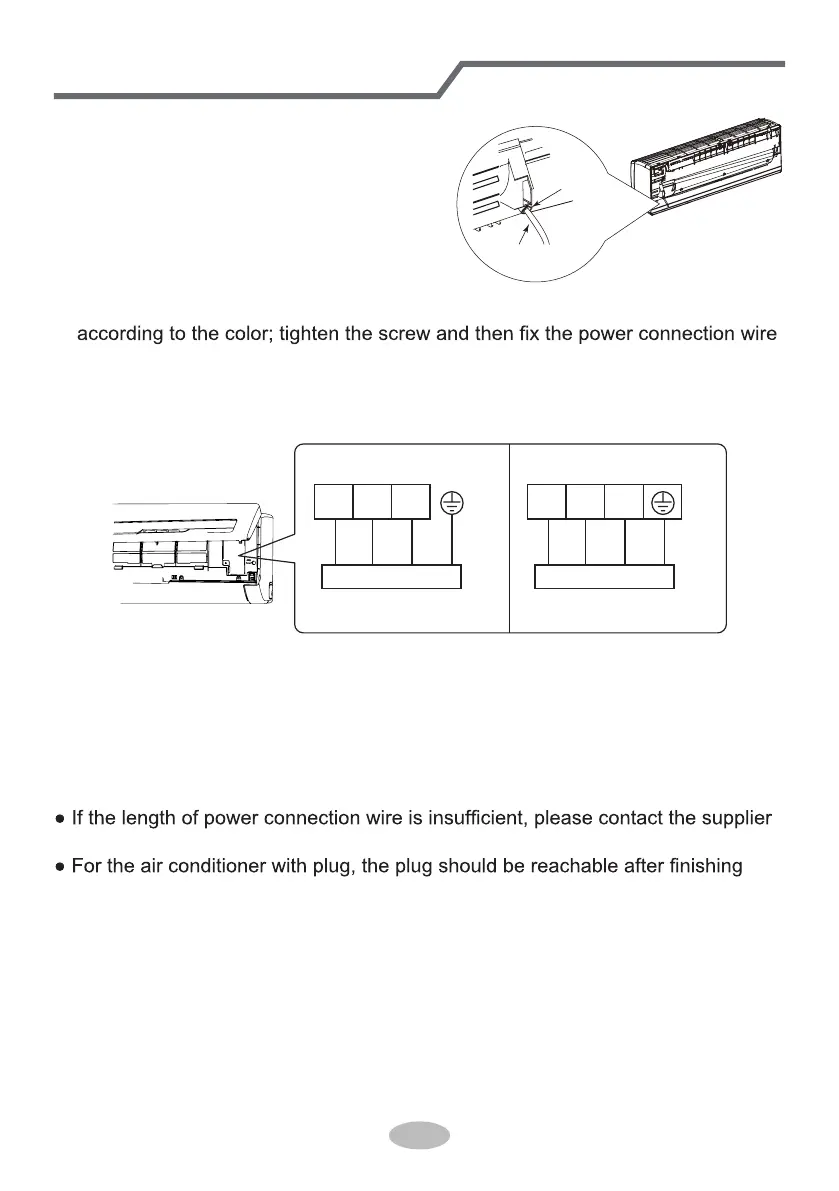

2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from
the front side.
with wire clip.
Outdoor unit connection
N(1) 2 3
brownblackblue yellow-
green
Outdoor unit connection
09K: 12、18、24K:
N(1) 2 3
brownblackblue yellow-
green
3. Remove the wire clip; connect the power connection wire to the wiring terminal
