GREE DC Inverter Multi VRF System II Service Manual
149

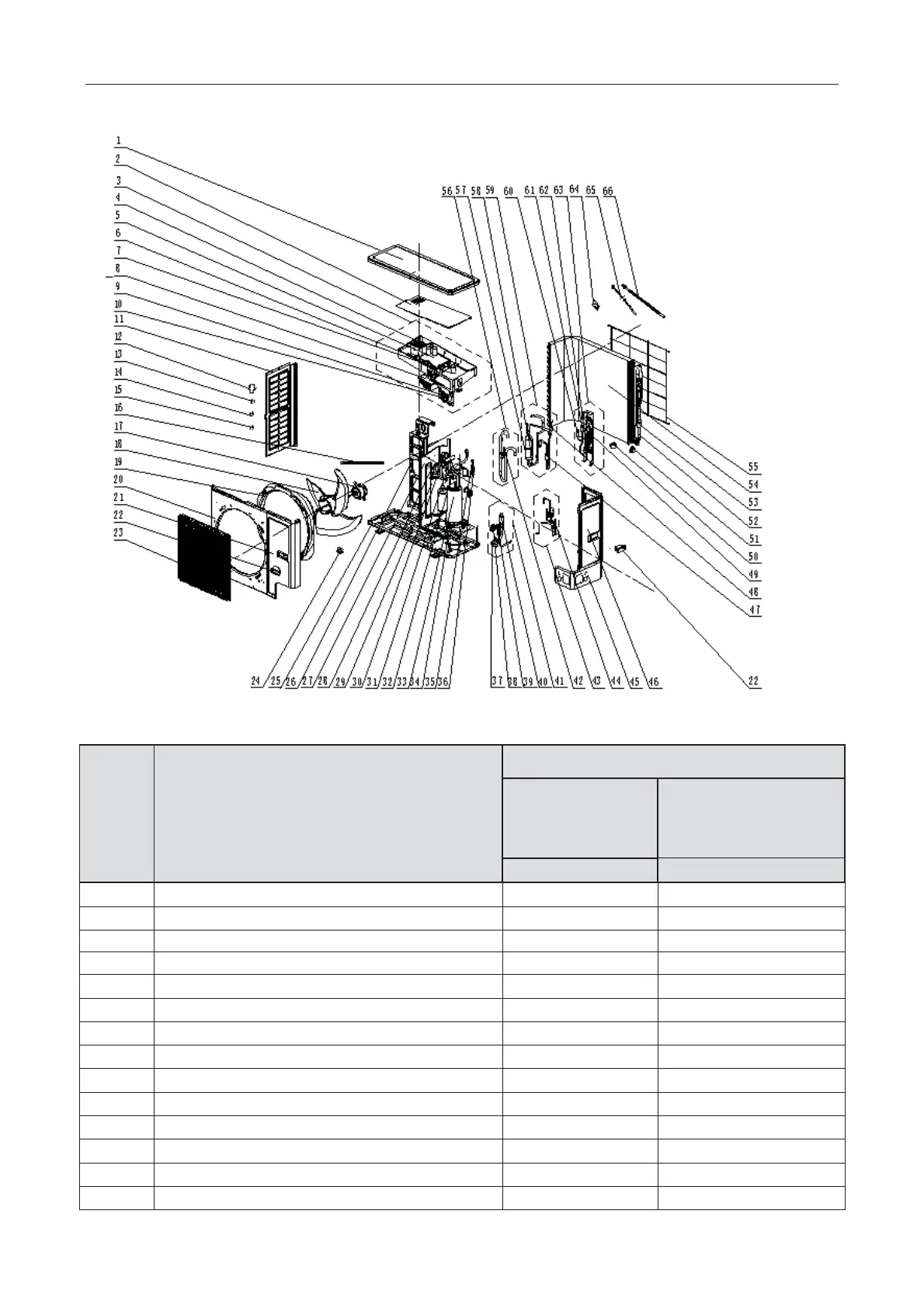

2) Model: GMV-121WL/A-TǃGMV-121WL/C-T Exploded view
NO.
Name of Part
GMV-121WL/A-T
GMV-121WL/C-T
Product Code
CN850W0420
CN850W0640
Part Code
Quantity
1
Coping
'01264100027P
1
2
Electric Box Cover
'01424100064
1
3
Electric Box Assy
'100002000960
1
4
PFC Inductance
'43120011
1
5
Main Board
'30221000024
1
6
Filter Board
'300020000004
1
7
Main Board
'30226000045
1
8
Radiator
'4901800007501
1
9
Terminal Board
'42011242
1
10
Terminal Board
'42018000026
1
11
Left Side Plate
'01314100043P
1
12
Drainage Connecter
'06123401
1
13
Compressor Overload Protector(External)
'00180030
1
14
Compressor Overload Protector(External)
'00183032
1
