GREE DC Inverter Multi VRF System II Service Manual
163
8) Model: GMV-H224WL/A-X,GMV-224WL/C-X

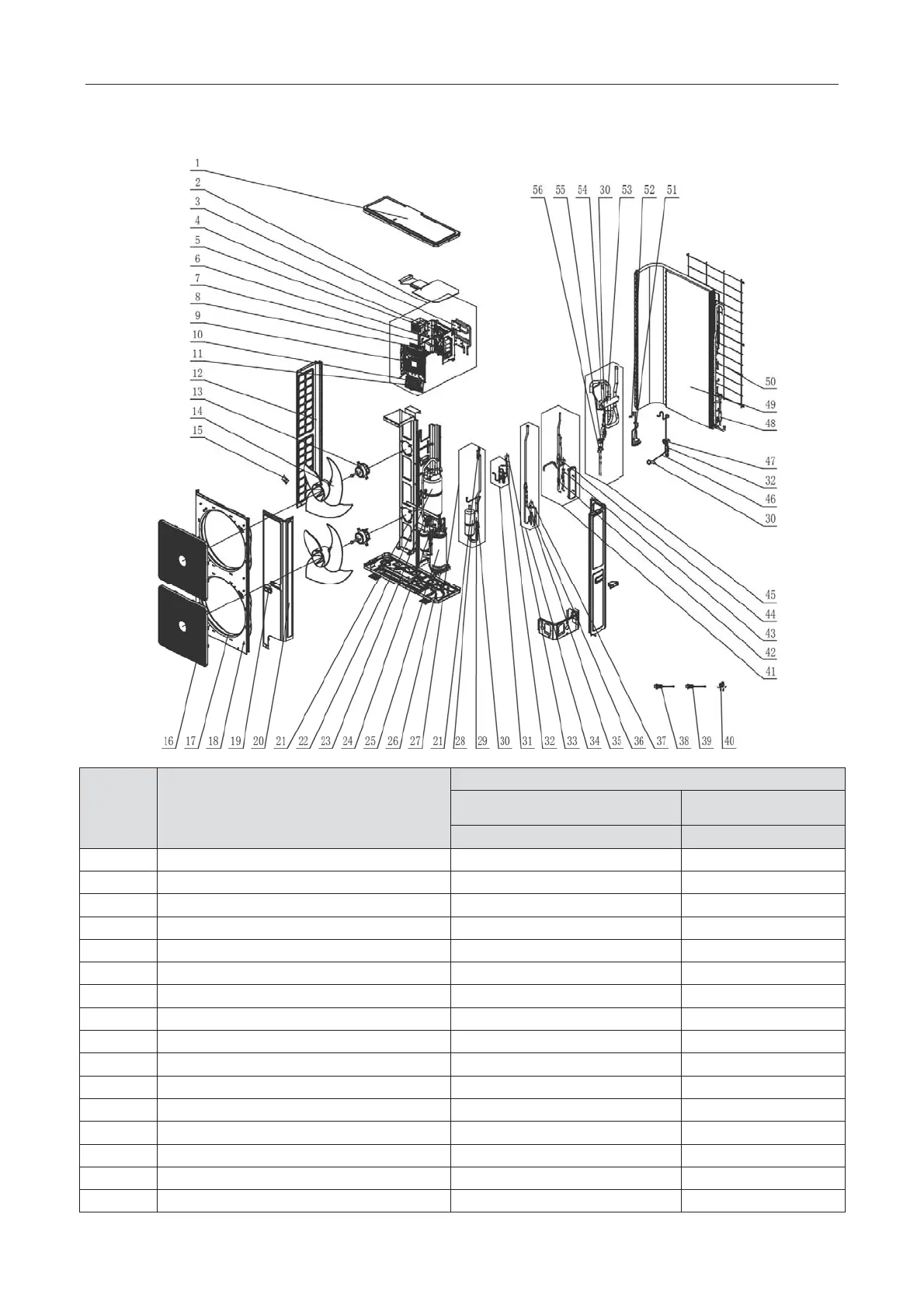

Exploded view
Parts list
NO.
Name of Part
GMV-H224WL/A-X,GMV-224WL/C-X
Product Code
CN850W0330
CN850W0510
Part Code
Quantity
1
Coping
01264100047P
1
2
Electric Box Assy
01394100349
1
3
Radiator
49018000083
2
4
Rectifier
46010604
1
5
Reactor
4313017401
1
6
Main Board
30223000045
1
7
Phase Reverse Protector
32218018
1
8
Filter Board
30228000015
1
9
Main Board
30226000045
1
10
Terminal Board
42011043
4
11
Terminal Board
42018000026
1
12
Left Side Plate
01314100084P
1
13
Fan Motor
1570280206
2
14
Axial Flow Fan
10434100006
2
15
Sensor Sub-assy
39008000061G
1
16
Front Grill
01574100008
2
