GREE DC Inverter Multi VRF System II Service Manual
159
6) Model: GMV-120WL/C-TǃGMV-140WL/C-TǃGMV-160WL/C-T

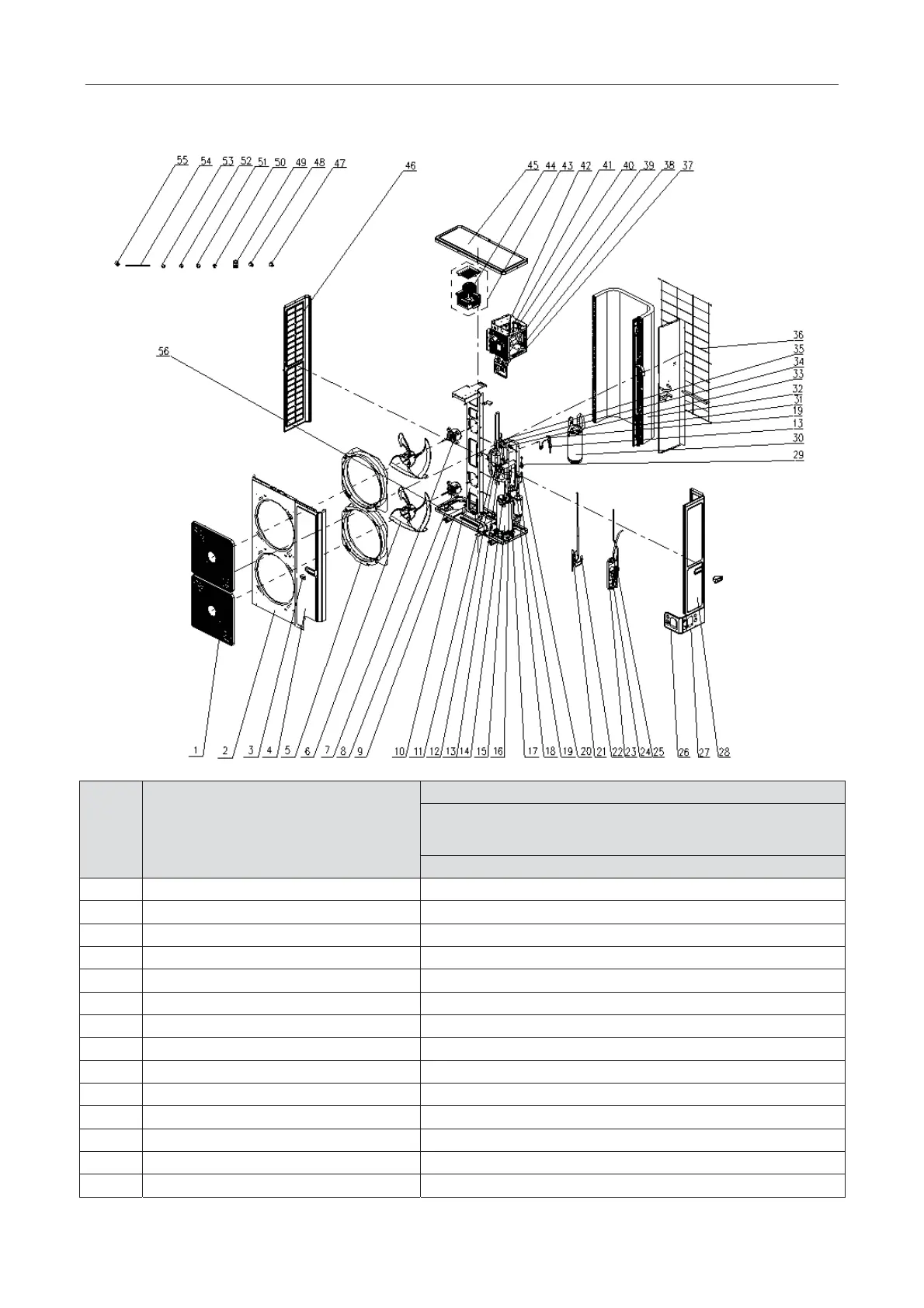

Exploded view
NO.
Name of Part
GMV-120WL/C-T
ǃ
GMV-140WL/C-T
ǃ
GMV-160WL/C-T
CN850W0440
CN850W0450
CN850W0460
Quantity
1
Front Grill
2
2
Cabinet
1
3
Handle
2
4
Front Side Plate
1
5
Diversion Circle
2
6
Axial Flow Fan
1
7
Brushless DC Motor
1
8
Brushless DC Motor
1
9
Chassis Sub-assy
1
10
Motor Support Sub-assy
1
11
Oil Separator
1
12
One way Valve
1
13
Strainer
1
14
Cut off Valve
1
