manually. Only the addresses of master unit and central control are needed to be set (address
of central control is only needed when there are multiple refrigeration systems).
Note: When installing remote monitor or central controller, displacement on indoor units’
project codes must be made. Otherwise, there will be collision malfunction of the project codes.
For detail operation methods, please refer to the Installation and Maintenance Manual.
4.7 Connection Method and Steps for System Communication
4.7.1 Communication connection between IDU and ODU
Note: The centralized controller can be installed when it is necessary.
Connect IDU and ODU via terminal D1/D2 of wiring board XT2. Below are the connection
graphics of single unit and modular units:

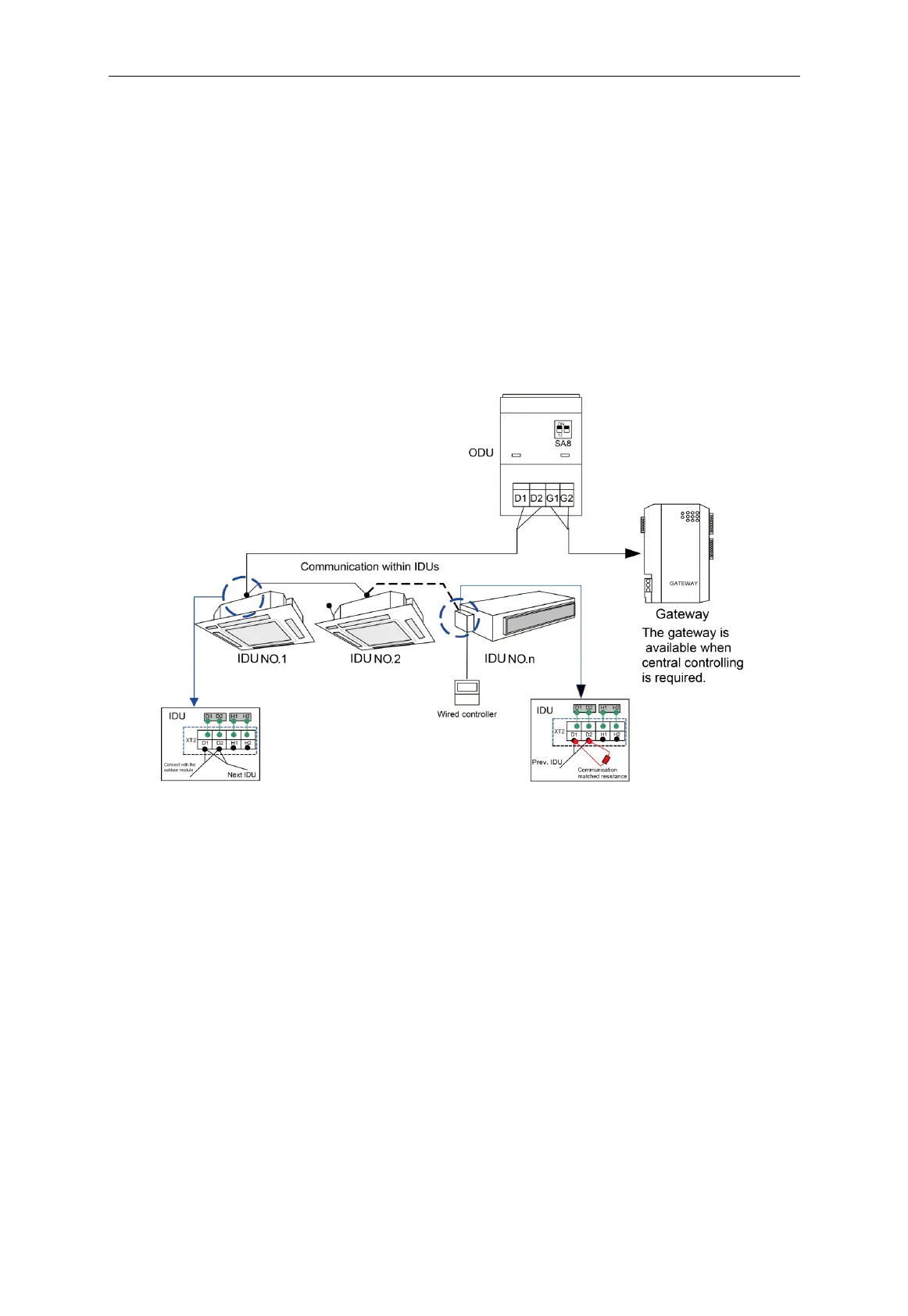

Fig. 4.7.1 Connection of single unit
