GMV DC Inverter VRF
24
Basic Module(single module)
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-224WM/E-X
Φ19.05
Φ9.52
GMV-280WM/E1-X
Φ22.2
Φ9.52
GMV-280WM/E-X
Φ22.2
Φ9.52
GMV-335WM/E-X
Φ25.4
Φ12.7
GMV-400WM/E-X
Φ25.4
Φ12.7
GMV-450WM/E1-X
Φ28.6
Φ12.7
GMV-450WM/E-X
Φ28.6
Φ12.7
GMV-504WM/E-X
Φ28.6
Φ15.9
GMV-560WM/E-X
Φ28.6
Φ15.9
GMV-615WM/E-X
Φ28.6
Φ15.9
For multiple modules, the piping from ODU to the first branch of IDU is based on the total
rated capacity of outdoor modules.

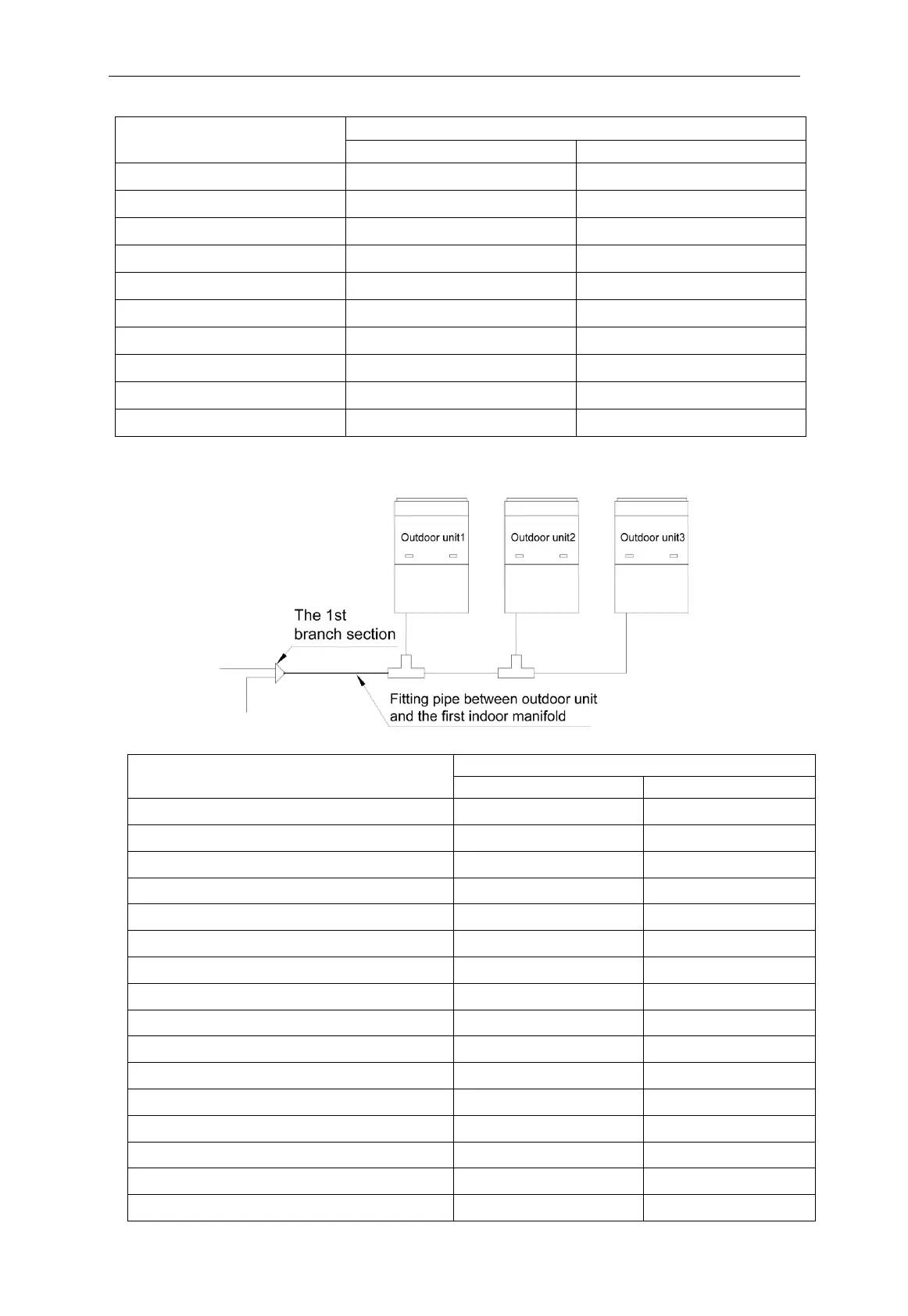

Fig. 4.2.12
Total rated capacity of outdoor modules
(multi-modular system)
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-680WM/E-X
Ф28.6
Ф15.9
GMV-730WM/E-X
Ф31.8
Ф19.05
GMV-785WM/E-X
Ф31.8
Ф19.05
GMV-850WM/E-X
Ф31.8
Ф19.05
GMV-900WM/E-X
Ф31.8
Ф19.05
GMV-960WM/E-X
Ф31.8
Ф19.05
GMV-1010WM/E-X
Ф38.1
Ф19.05
GMV-1065WM/E-X
Ф38.1
Ф19.05
GMV-1130WM/E-X
Ф38.1
Ф19.05
GMV-1180WM/E-X
Ф38.1
Ф19.05
GMV-1235WM/E-X
Ф38.1
Ф19.05
GMV-1300WM/E-X
Ф38.1
Ф19.05
GMV-1350WM/E-X
Ф38.1
Ф19.05
GMV-1410WM/E-X
Ф41.3
Ф19.05
GMV-1460WM/E-X
Ф41.3
Ф19.05
GMV-1515WM/E-X
Ф41.3
Ф19.05
