Gree GMV-280WM/E1-X

GMV DC Inverter VRF
25
Total rated capacity of outdoor modules
(multi-modular system)
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-1580WM/E-X
Ф41.3
Ф19.05
GMV-1630WM/E-X
Ф41.3
Ф19.05
GMV-1685WM/E-X
Ф41.3
Ф19.05
GMV-1750WM/E-X
Ф41.3
Ф19.05
GMV-1800WM/E-X
Ф41.3
Ф19.05
GMV-1845WM/E-X
Ф41.3
Ф19.05
GMV-1908WM/E-X
Ф44.5
Ф22.2
GMV-1962WM/E-X
Ф44.5
Ф22.2
GMV-2016WM/E-X
Ф44.5
Ф22.2
GMV-2072WM/E-X
Ф44.5
Ф22.2
GMV-2128WM/E-X
Ф44.5
Ф22.2
GMV-2184WM/E-X
Ф44.5
Ф22.2
GMV-2240WM/E-X
Ф44.5
Ф22.2
GMV-2295WM/E-X
Ф44.5
Ф22.2
GMV-2350WM/E-X
Ф44.5
Ф22.2
GMV-2405WM/E-X
Ф44.5
Ф22.2
GMV-2460WM/E-X
Ф44.5
Ф22.2

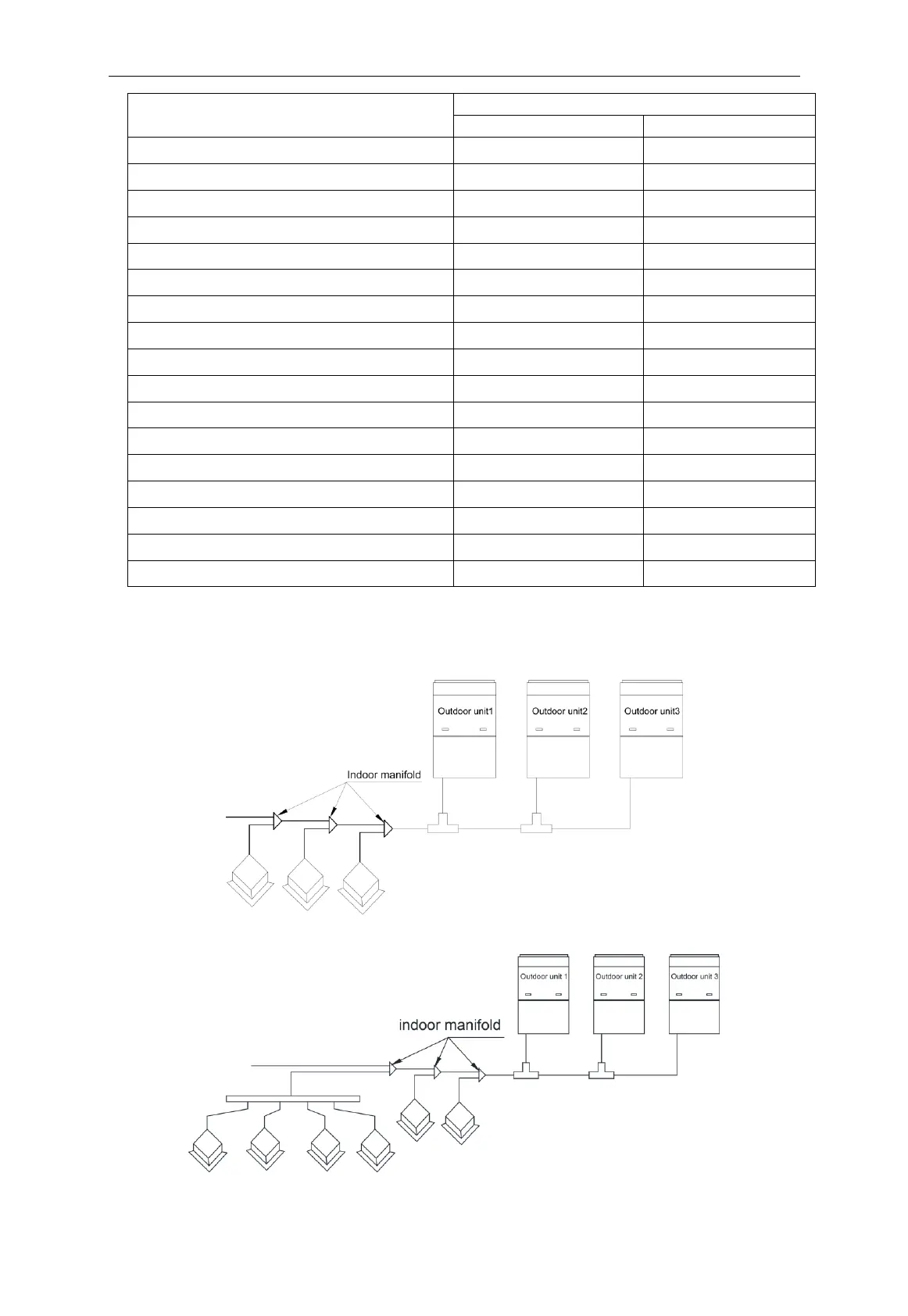

4.2.5.5 Manifold at indoor unit side
Manifold at indoor unit side can be selected as per total capacity of downstream indoor
unit(s). Refer to the following table.
Fig. 4.2.13(a)
Fig. 4.2.13(b)
