GREE GMV5E DC INVERTER VRF UNITS SERVICE MANUAL
17
GMV-450WM/E-X, GMV-504WM/E-X, GMV-560WM/E-X and GMV-615WM/E-X
Note:

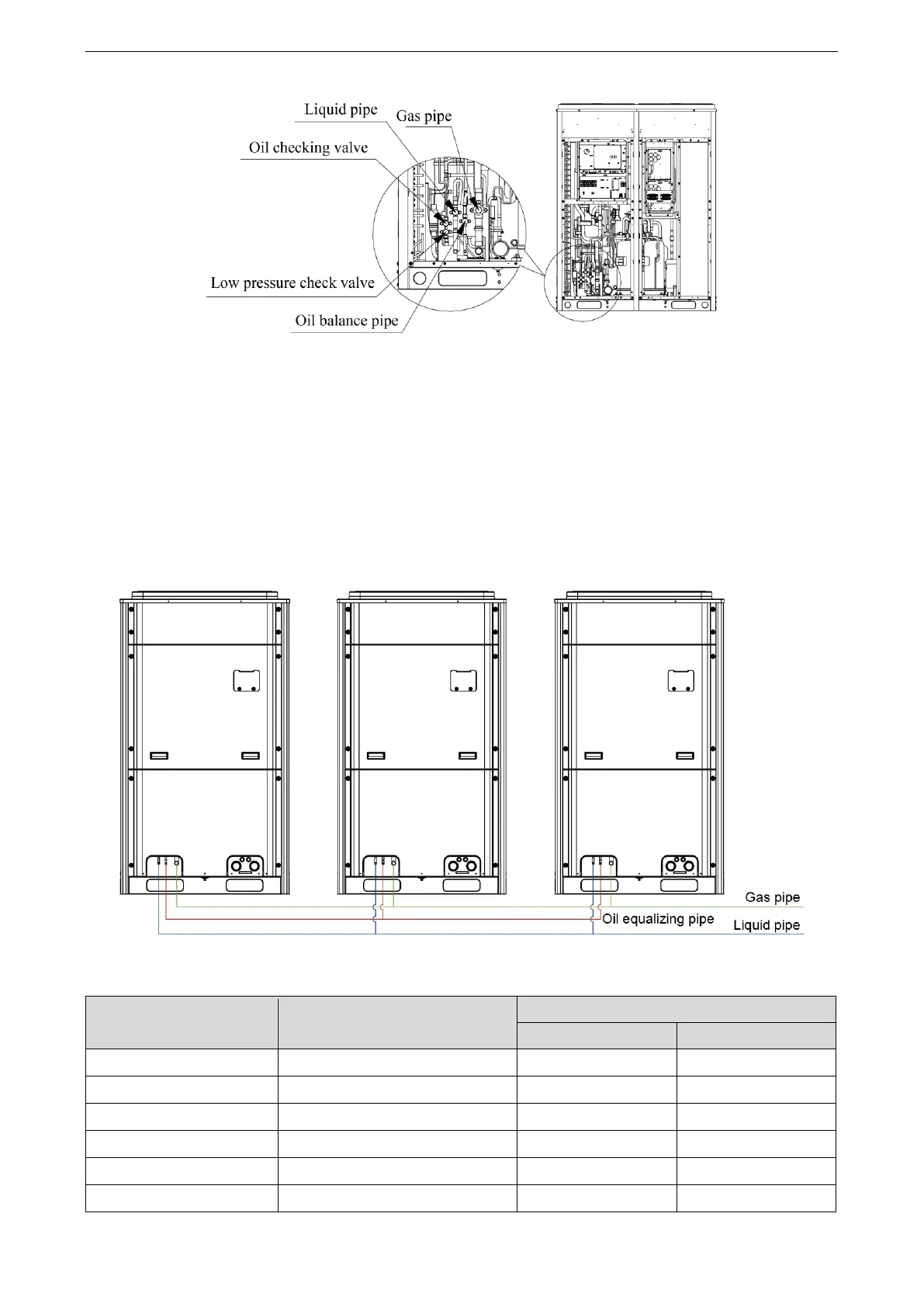

① Functions of oil check valve: During after-sale maintenance, the oil check valve can be used to
extract lubricating oil samples, which are further detected to analyze the oil quality in the system.
The oil check valve can also serve as the inlet for lubricating oil charging. Stop the system for at
least 12 hours before the extracting of lubricating oil from the system; otherwise, overheat oil
may burn the operator.
② Functions of low-pressure check valve: It is mainly used for low pressure detection of the system
and refrigerant charging during after-sale maintenance.
Pipe connection diagram of outdoor modules
(2) Each ODU system can be connected to multiple IDUs. Detailed information about the number of
units to be connected and capacity ranges is shown in the following table:
ODU model
Max number of connectable IDU (unit)
Capacity Range of Connected IDU (kW)
Minimum Capacity
Maximum Capacity
GMV-224WM/E-X
13
11.2
30.2
GMV-280WM/E1-X
16
14.0
37.8
GMV-280WM/E-X
16
14.0
37.8
GMV-335WM/E-X
19
16.8
45.2
GMV-400WM/E-X
23
20.0
54.0
GMV-450WM/E1-X
26
22.5
60.8
