4.2.4 Connection Pipe among Outdoor Modules

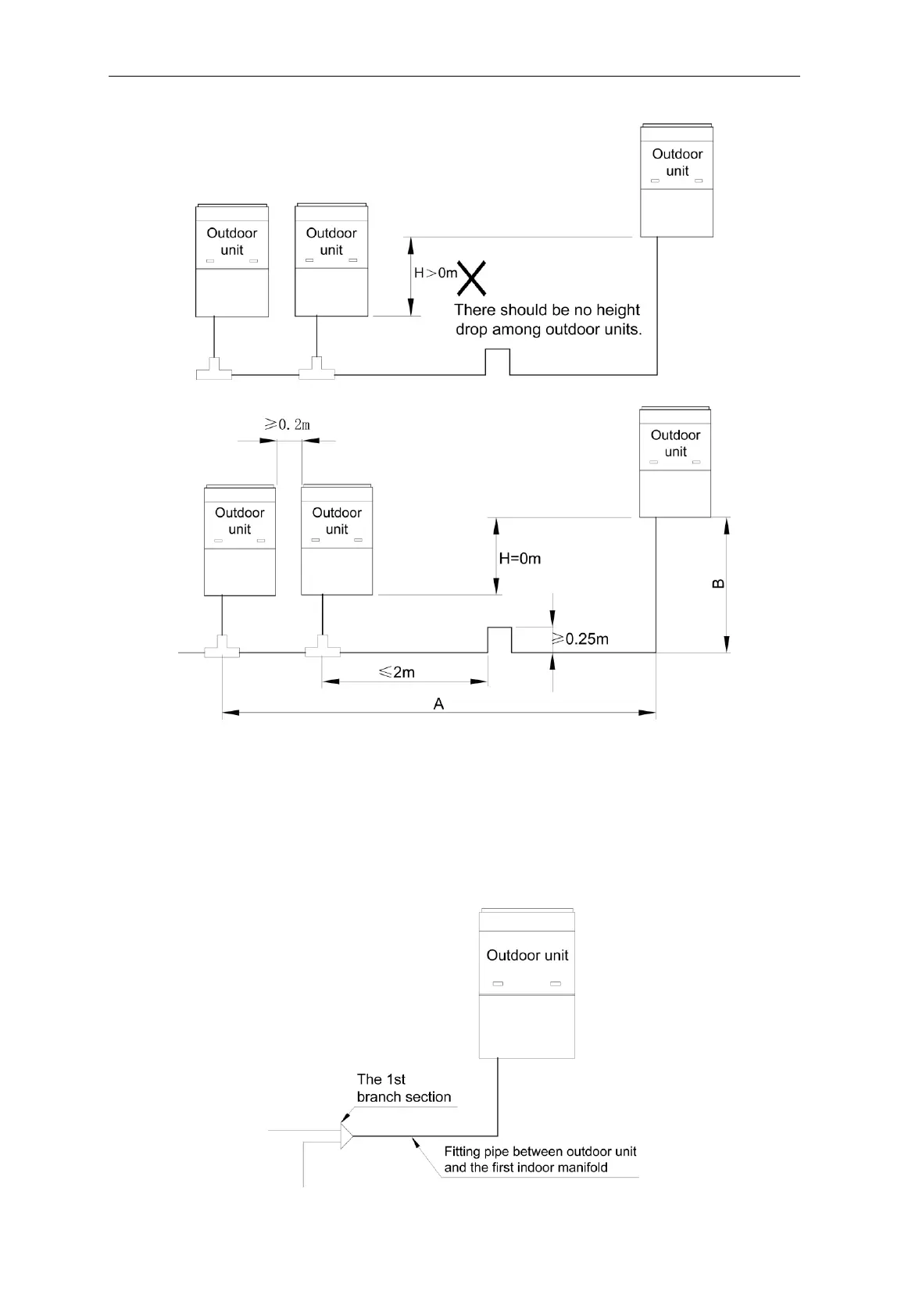

Fig. 4.2.6
Fig. 4.2.7
Note: When the distance between outdoor units exceeds 2m, U-type oil trap should be
added at low-pressure gas pipe. A+B
≤
10m.
4.2.5 Fitting pipe between Outdoor Unit and the First Manifold
4.2.5.1 For single module system, pipe size (between outdoor unit and the first manifold) is
determined by that of outdoor unit.
Fig. 4.2.8
