Gree GMV-450WM/B-X Service Manual

GMV5 DC INVERTER VRF UNITS SERVICE MANUAL
69
Use ties (support
heads) to fix the
external power cable.
Lead the power
cable through the
hole.
Lead the
power cable
through the
hole.
Routing 1 of
the external
power cable
Power
Power
Routing 2 of
the external
power cable

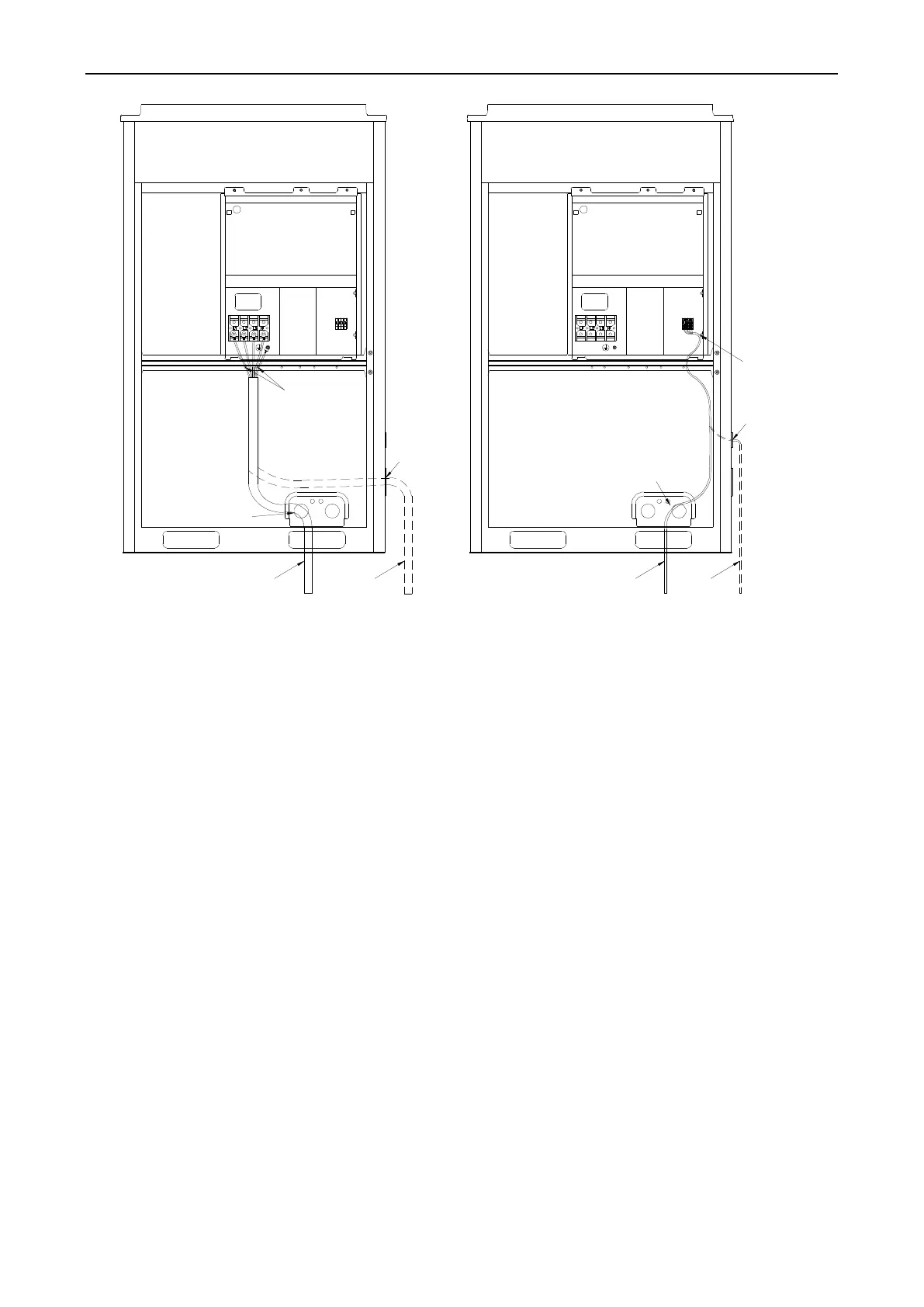

Routing diagram of the external power cable
Use ties (support
heads) to fix the
communication
cable.
Lead the
communication
cable through
the hole.
Lead the power cable
through the hole.
Routing 1 of the
communication
cable
Routing 2 of the
communication
cable
Routing diagram of the communication cable
Note: Provide a threading rubber ring when threading a strong power cable or a communication
cable.
