GMV DC Inverter VRF
19

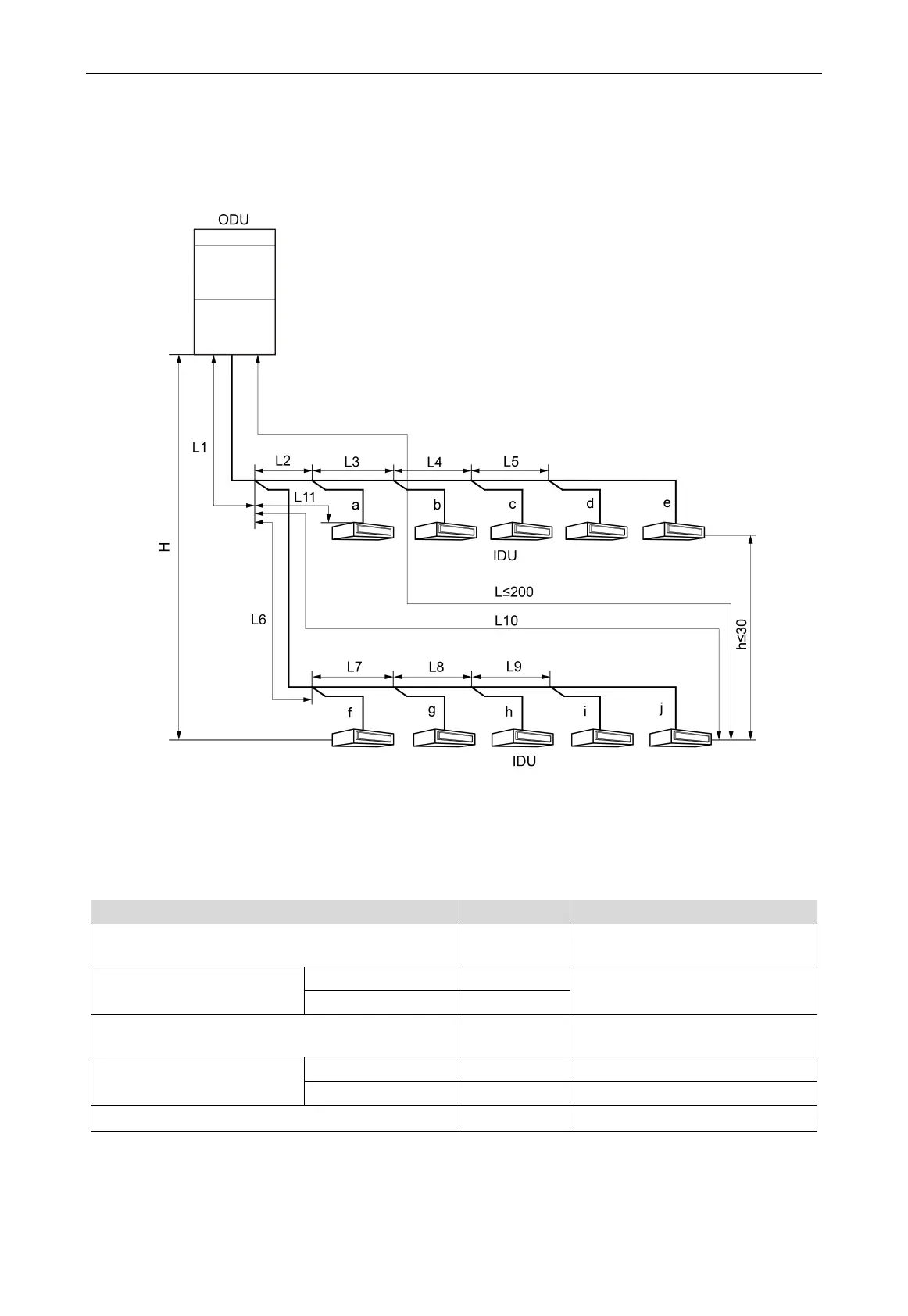

3.3.3 Allowable pipe length and height difference among indoor and outdoor units
Y type branch joint is adopted to connect indoor and outdoor units. Connecting method is shown
in the figure below.
Unit: m
Fig.3.3.1
L10: Length from the first branch to the farthest IDU;
L11: Length from the first branch to the nearest IDU;
Equivalent length of branch of IDU is 0.5m.
Total length (actual length) of fitting pipe ≤1000
L1+L2+L3+L4+…+L9+a+b+…+i+j
Length of farthest fitting pipe(m)
L1+L6+L7+L8+L9+j
Equivalent length from the first branch to the furthest
*1
≤120 L6+L7+L8+L9+j
Height difference between
outdoor unit and indoor unit H
*2
Height difference between indoor units
