GREE GMV5 INDOOR UNIT SERVICE MANUAL
220

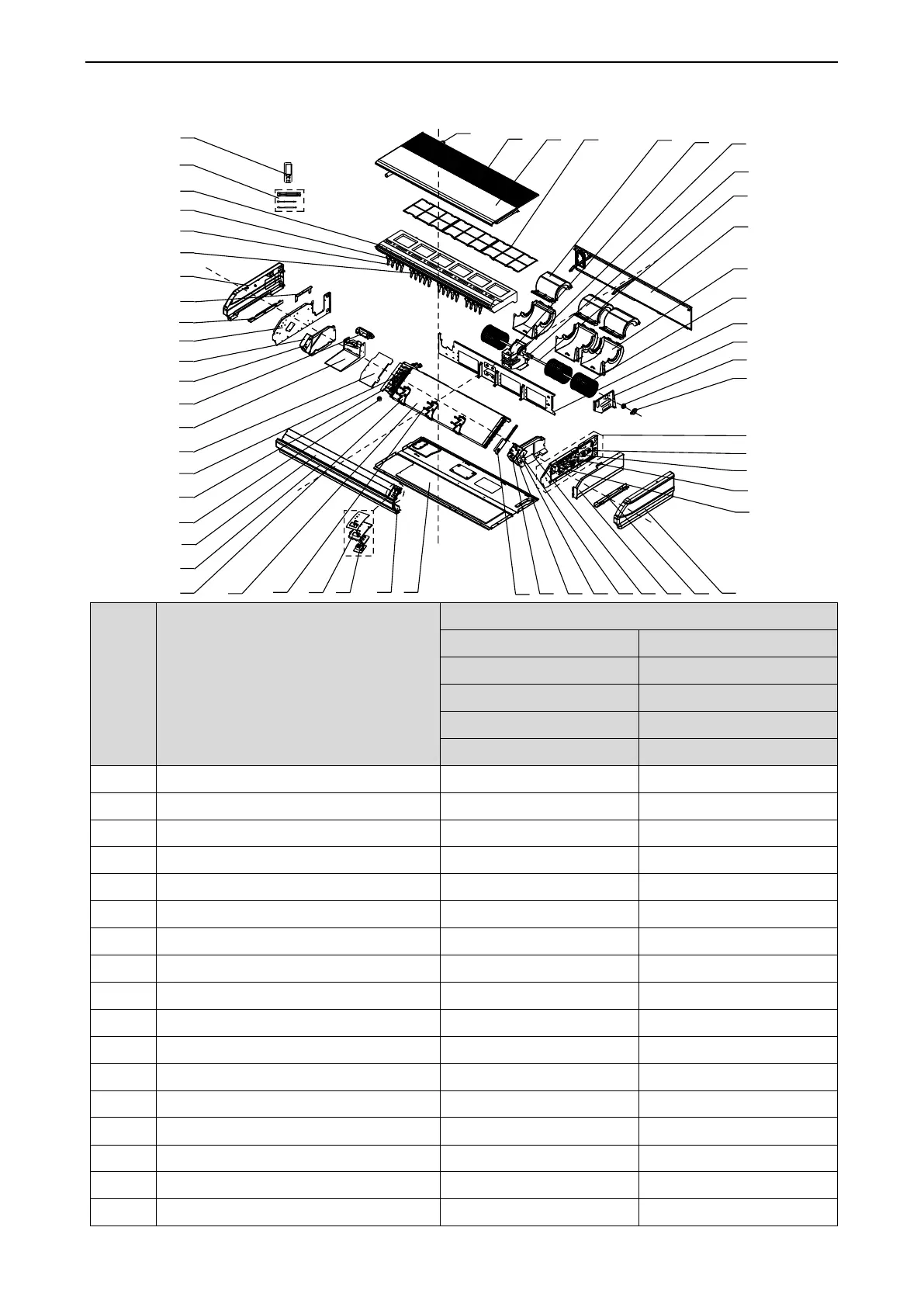

Exploded View of GMV-ND63ZD/A-T, GMV-ND71ZD/A-T, GMV-ND90ZD/A-T:
2
1
1
2
6
5
3
4
1
2
3
2
1
6
5
4
16
18
7
8
9
10
12
11
13
14
17
15
19
20
21
2524
2726
22
23
31 353433
32
29 30
28
36
39
40
38
41
37
42
43
44
45
46
48
50
49
51
52
56
55 54
53
57
47
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND63ZD/A-T
CM600N0410
GMV-ND71ZD/A-T
CM600N0370
GMV-ND90ZD/A-T
CM600N0330
Part code
Quantity
1
Remote Controller
30510589
1
2
Sensor Sub-assy
39008000100G
1
3
Water Tray Assy
01289405
1
4
Swing Lever
10582008
2
5
Air Louver
26909418
18
6
Swing Lever
10582009
2
7
Right Cover Plate
26909422
1
8
Connection Board
02229406
1
9
Installation Supporting Frame
01809402
1
10
Right Side Plate Sub-Assy
01319408
1
11
Right Foam Assy
12509425
1
12
Axile Bush
10542704
2
13
Plate Board of Water Releasing Flume
26909442
1
14
Water Releasing Flume
26909441
1
15
connected board (evaporator)
01344108
1
16
Strainer
0741410000601
2
17
Electronic Expansion Valve
07334466
1
