Gree GMV-N140U/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
238
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND72PL/B-T
CM800N3600
Part code
Quantity
25
Hook
02112446
2
26
Hook
01344100034
2
27
Display Board
30296000040
1
28
Sensor Sub-assy
39004168G
1
Above data is subject to change without notice, pls reference the SP in global service website.

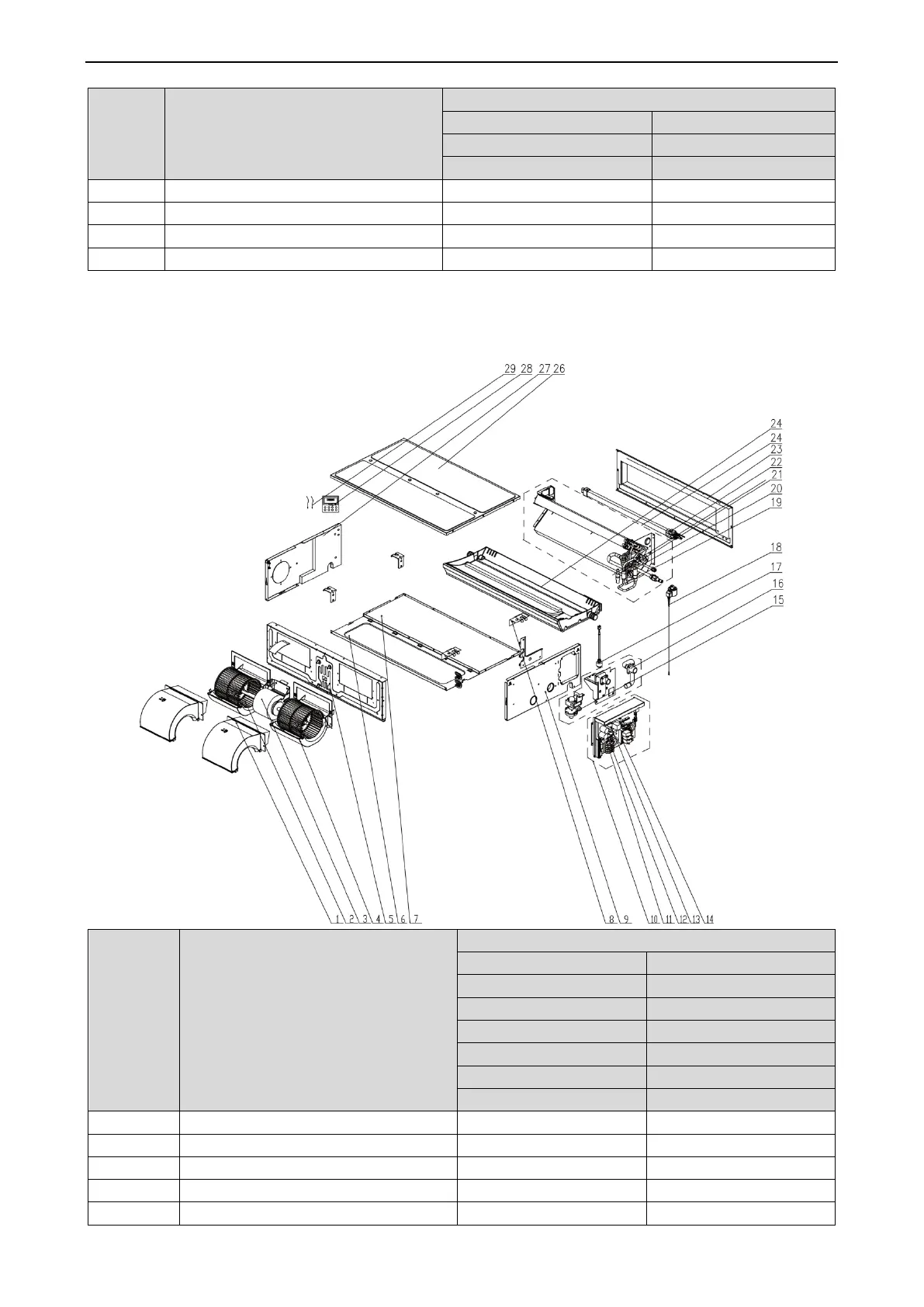

Exploded View of GMV-ND22PLS/B1-T, GMV-ND25PLS/B1-T, GMV-ND28PLS/B1-T, GMV-
ND32PLS/B1-T, GMV-ND36PLS/B1-T:
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND22SPL/B1-T
CM810N1580
GMV-ND25SPL/B1-T
CM810N1570
GMV-ND28SPL/B1-T
CM810N1340
GMV-ND32SPL/B1-T
CM810N1560
GMV-ND36SPL/B1-T
CM810N1330
Part code
Quantity
1
Propeller Housing(Upper)
26905200018
2
2
Centrifugal Fan
10425200003
2
3
Brushless DC Motor
15704100001
1
4
Propeller Housing(Lower)
26905200019
2
5
Blower Mounting Plate Sub-Assy
01325200034
1
