Gree GMV-N140U/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
240

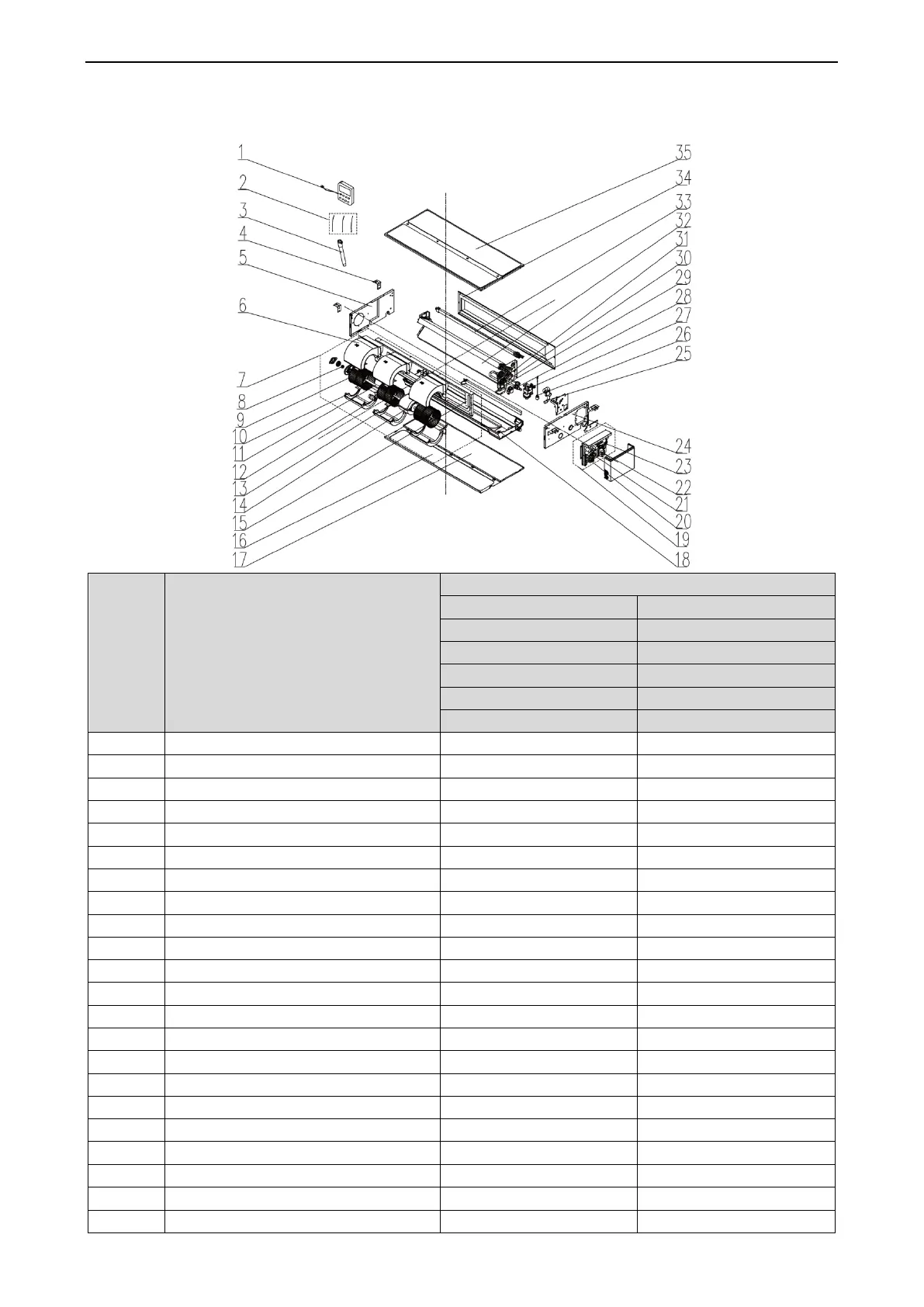

Exploded View of GMV-ND40PLS/B1-T, GMV-ND45PLS/B1-T, GMV-ND50PLS/B1-T, GMV-
ND56PLS/B1-T, GMV-ND63PLS/B1-T:
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND40SPL/B1-T
CM810N1550
GMV-ND45SPL/B1-T
CM810N1350
GMV-ND50SPL/B1-T
CM810N1540
GMV-ND56SPL/B1-T
CM810N1530
GMV-ND63SPL/B1-T
CM810N1360
1
Display Board
300001000054
1
2
Sensor Sub-Assy
390002000005
1
4
Hook
2112446
2
5
Right Side Plate Assy
1315200053
1
6
Propeller Housing(Upper)
26905200018
3
7
Centrifugal Fan Assy
15404100032
1
8
Fan Bearing
76512210
1
9
Centrifugal Fan
10425200003
3
10
Propeller Housing(Lower)
26905200019
3
11
Rotary Axis Sub-Assy
73018761
1
12
Joint Slack
73018731
1
13
Motor Support
1805200144
1
14
Brushless DC Motor
1570410000102
1
15
Blower Mounting Plate Sub-Assy
1325200035
1
16
Cover Of Air-In
1265200073
1
17
Bottom Cover Plate Assy
1264100103
1
18
Water Tray Assy
1285200022
1
19
Electric Box Assy
1394100615
1
20
Terminal Board
42011106
1
21
Terminal Board
4201800002601
1
23
Main Board
30226000029
1
24
Left Side Plate Assy
1314100136
1
