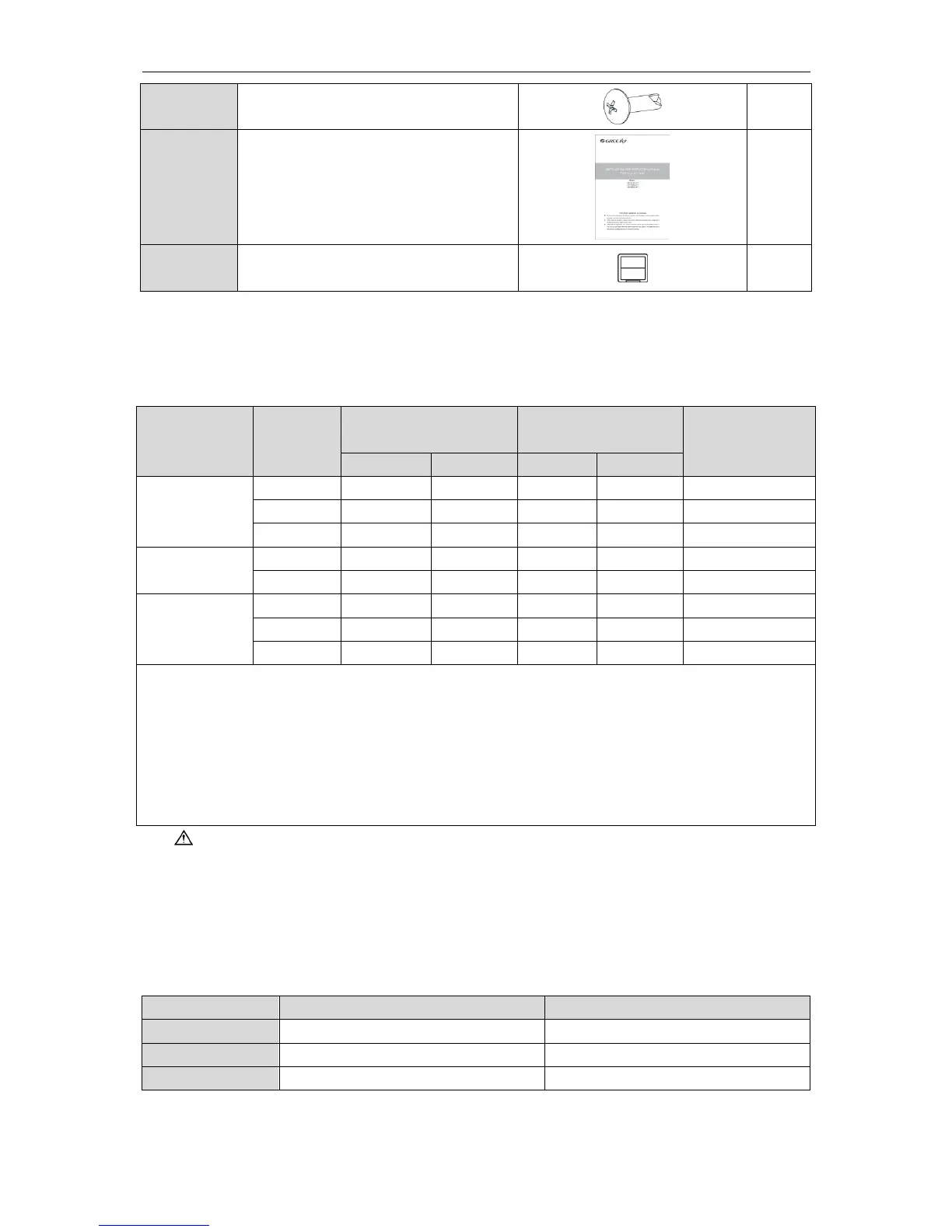

3.3 Selecting the Air Handling Unit
Select the air handling unit according to the technical data and limitations mentioned in the
following table. Lifetime of the outdoor unit, operation range or operation reliability may be
influenced if you neglect these limitations.
Model
capacity
（kW）
Allowable internal volume
of heat exchanger (dm
3
)
Allowable capacity of
heat exchanger (kW)
Suggested air
volume (m
3
/h)
Minimum
Maximum
Minimum
Maximum
GMV-N140U/A-T
9.0
2.09
2.64
7.9
9.9
1500~1850
11.2
2.65
3.3
10
12.3
1850~2100
14.0
3.31
4.12
12.4
15.4
2100~2400
GMV-N280U/A-T
22.4
4.63
6.60
17.7
24.6
3700~4200
28.0
6.61
8.25
24.7
30.8
4200~4800
GMV-N560U/A-T
45.0
10
11.8
42.5
47.5
7400~8000
50.4
11.9
13.7
47.6
53.2
8000~5600
56.0
13.8
15.6
53.3
58.7
8600~9200
Notes:
a) The capacity of heat exchanger is obtained at these test conditions: evaporation temperature at air outlet of
heat exchanger is 6℃, overheating degree of heat exchanger is 5℃ and the air return temperature is 27℃
DB/19℃WB.
b) The heat exchanger of air handling unit is designed for R410A, and it’s working pressure is 4.2MPa.
c) Quantity of rows of heat exchanger: no more than 4 rows.
d) The diameter of copper pipe of heat exchanger is no more than 12.7mm. 9.52mm is recommended.
Notes: The air handling unit can be connected as a standard indoor unit to the outdoor unit.
The limitations of connection are determined by the outdoor unit.
3.4 Selecting the AHU-KIT Unit
The corresponding AHU-KIT unit needs to be selected for your air handling unit. Select the
AHU-KIT unit according to the above limitations.
Capacity ranges of different AHU-KIT unit are as follows:
Model
Acquiescent capacity (kW)
Adjustable capacity (kW)
GMV-N140U/A-T
14.0
9.0/11.2/14.0
GMV-N280U/A-T
28.0
22.4/28
GMV-N560U/A-T
56.0
45/50.4/56
Different capacities of same model of AHU-KIT unit are achieved through dialing capacity
code of mainboard (shown as "S1").Capacity code setting is shown as follows:
