Multi Variable Air Conditioners Wall Mounted Type Indoor Unit
10

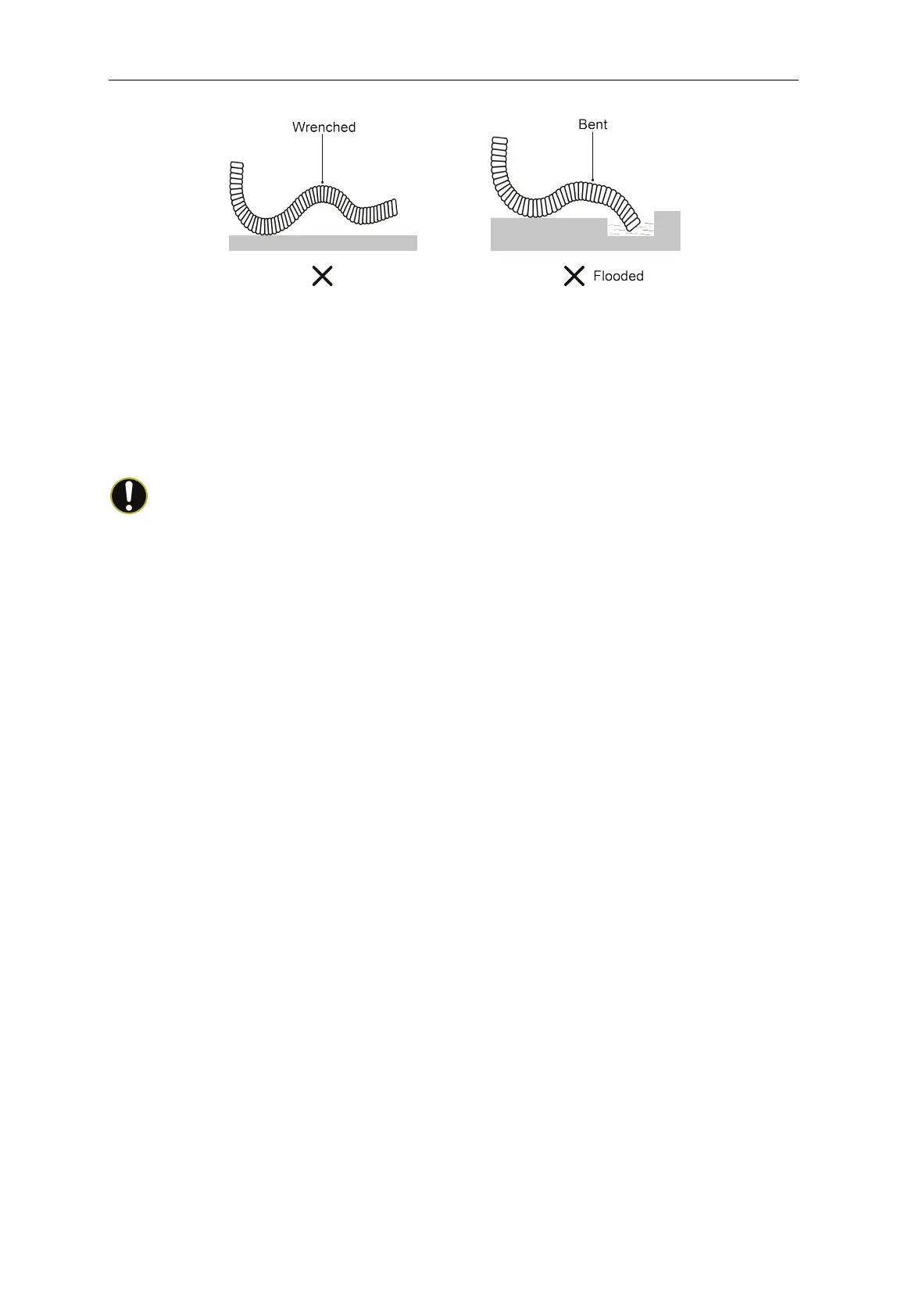

Fig 4.3
4.5 Installation the Connection Pipes
Connect the ends of the connection pipe with two leading pipes, and then tighten the joint
nuts tightly.
Connect the connect pipe with the two relative leading pipe, tie the nut on tie –in of the
connect pipe tightly.
NOTES!
① Be careful in bending the connection pipes, or you would damage the pipes.
② If the tightening torque for the flare nut is too great, leakage would happen.
