Gree GMV-ND22T/C-T User Manual

Multi Variable Air Conditioners Cassette Type Indoor Unit
12
Unit:mm
Fig.4.3.3
Unit:mm
Model
A
B
C
GMV-ND22~160T/C-T
220
980
930

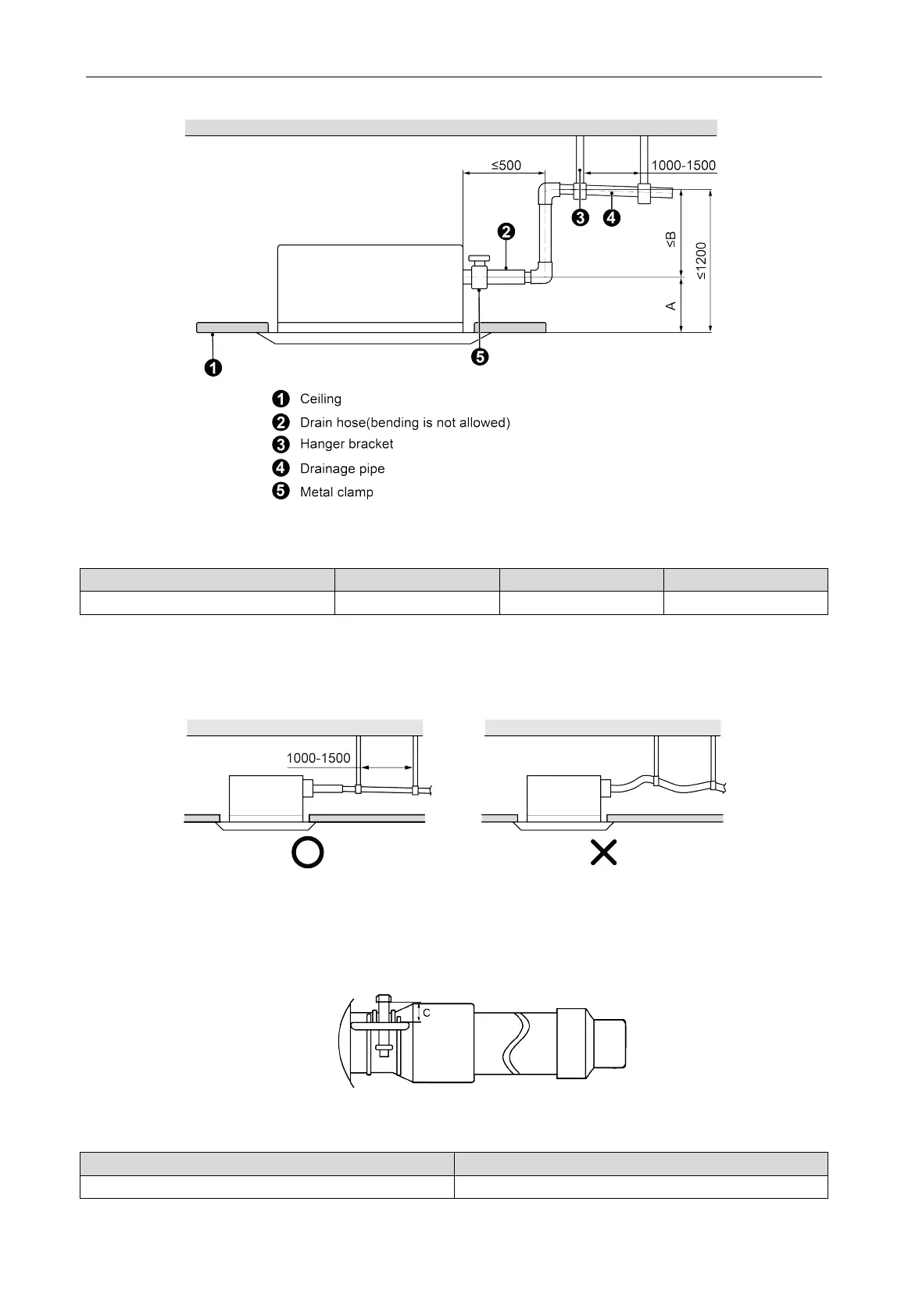

(9) Drain pipes should have a downward slope of at least 1%~2%, in order to prevent pipes
from sagging, install hanger bracket at intervals of 1000~1500mm.
Unit:mm
Fig. 4.3.4
(10) During the installation, distance from soft drain pipe to the gasket is C mm when the bolt is
tightened. It is not allowed to apply PVC or other related glue in the joints of two ends of
drain pipe.
Fig.4.3.5
Unit:mm
Model
C
GMV-ND22~160T/C-T
15±3
