Multi Variable Air Conditioners Two-way Cassette Type Indoor Unit
6
No. Name Appearance Q'ty Usage
4
Corrugated pipe
1
GMV-ND56~80TS/B-T
5 Remote controller
1+2 To control the indoor unit
6 Washer fixing plate
4 Prevent the washer from falling off
3.2 Installation Position Selection
(1) The location should be able to withstand the weight of unit.
(2) The water can be drained conveniently from drainage pipe.
(3) There should be no obstruction near air inlet and air outlet.

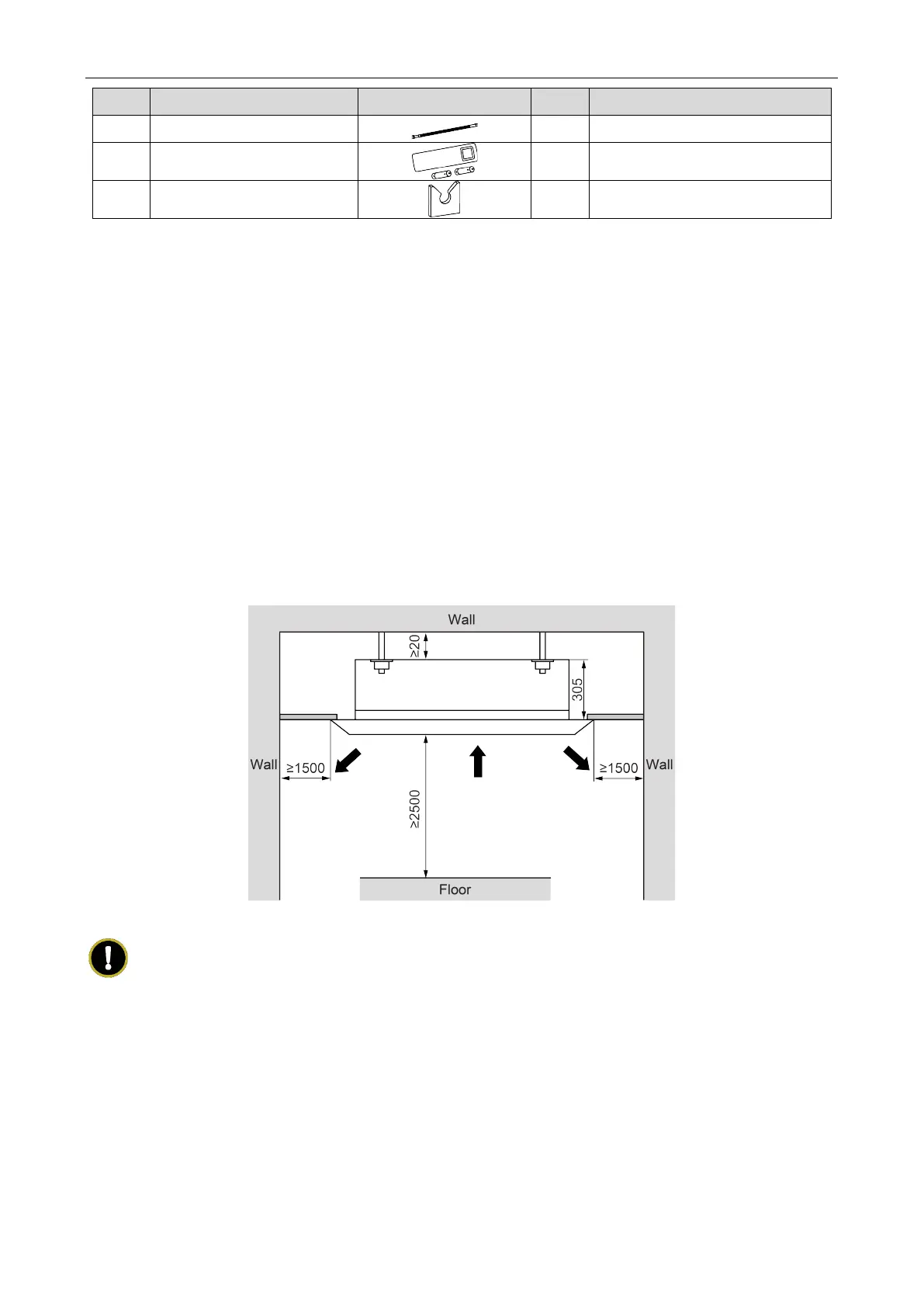

(4) Follow the installation distance required in the Fig.3.2.1 below to ensure sufficient space for
maintenance.
(5) The installation location should be far from heat sources, flammable or explosive gas, or smog
spread in the air.
(6) The appliance shall not be installed in the laundry.
(7) The indoor unit, outdoor unit, power cord and connection electricity wire should be at least 1m
from television and radio in order to prevent interference and noise (Even though 1m distance
is ensured, there may be noise if the electric wave is too strong) .
Unit: mm
Fig.3.2.1
NOTE:
① The unit shall be installed in accordance with national standards or local regulations.
② Only qualified personnel can carry out installation work, please contact with local dealer before
installation.
③ Make sure all the installation work completed before energizing.
④ When installed in the narrow room, corresponding measures must be taken to prevent the
concentration of refrigerant from exceeding the limit value when the refrigerant is leaking,
which might lead to anoxia or asphyxia.
To Next Page
