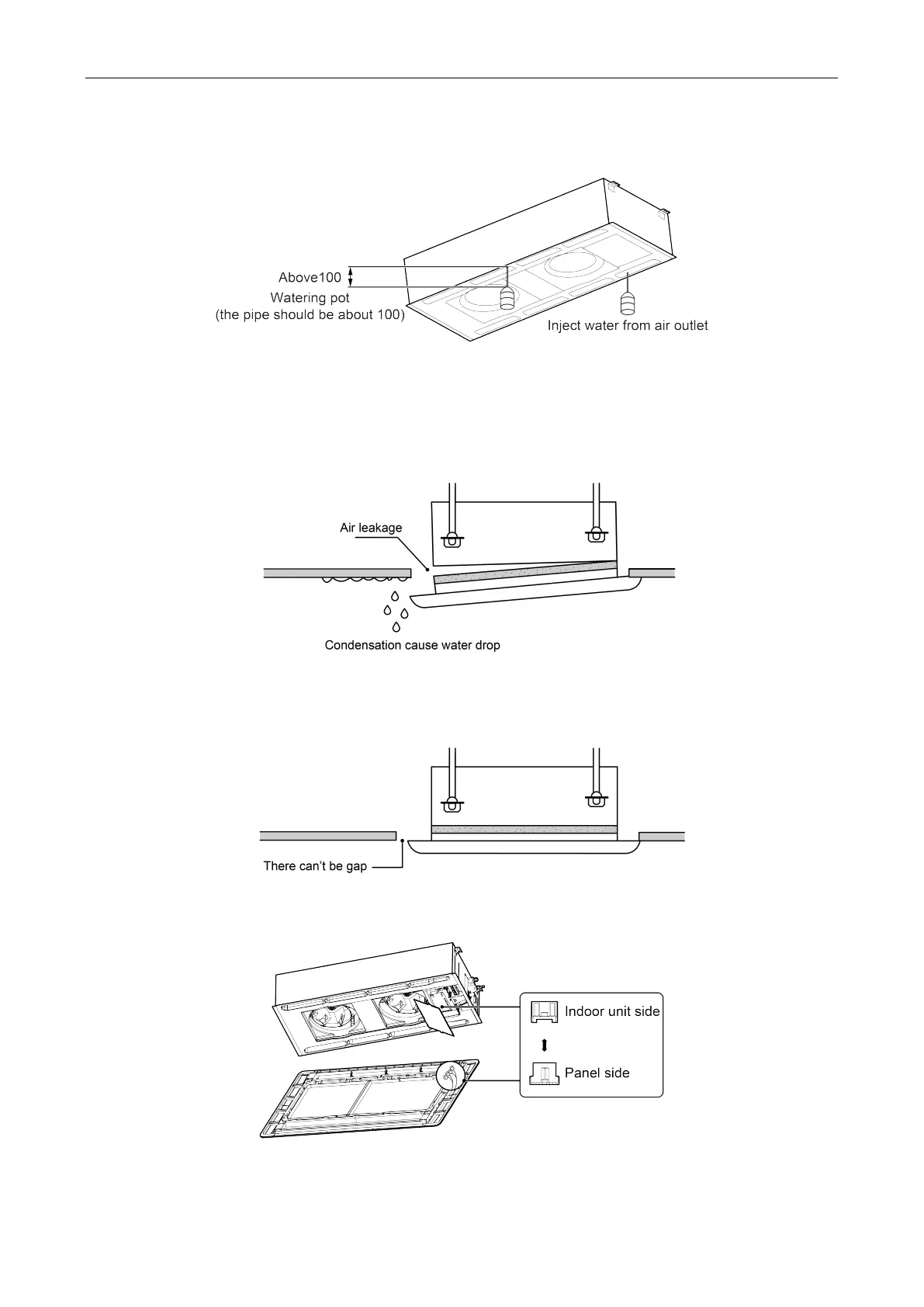

(2) During the test, please carefully check the drainage joint, make sure no any leakage occur.
(3) It’s strongly recommend to do the drain test before ceiling decoration.
Unit: mm
Fig.4.3.9
4.4 Panel Installation
4.4.1 Notices for Installation
(1) Improper decorative panel installation could cause the following problems.
Fig.4.4.1
(2) Ensure that it’s clearance-free between decoration panel and ceiling board after installation, if
not, please adjust the body position.
Fig.4.4.2
(3) Connect the decoration panel terminals (Female) to body terminals (male) as shown in Fig.4.4.3.
Fig.4.4.3
