Gree GMV-ND28TS/B-T

Multi Variable Air Conditioners Two-way Cassette Type Indoor Unit
5

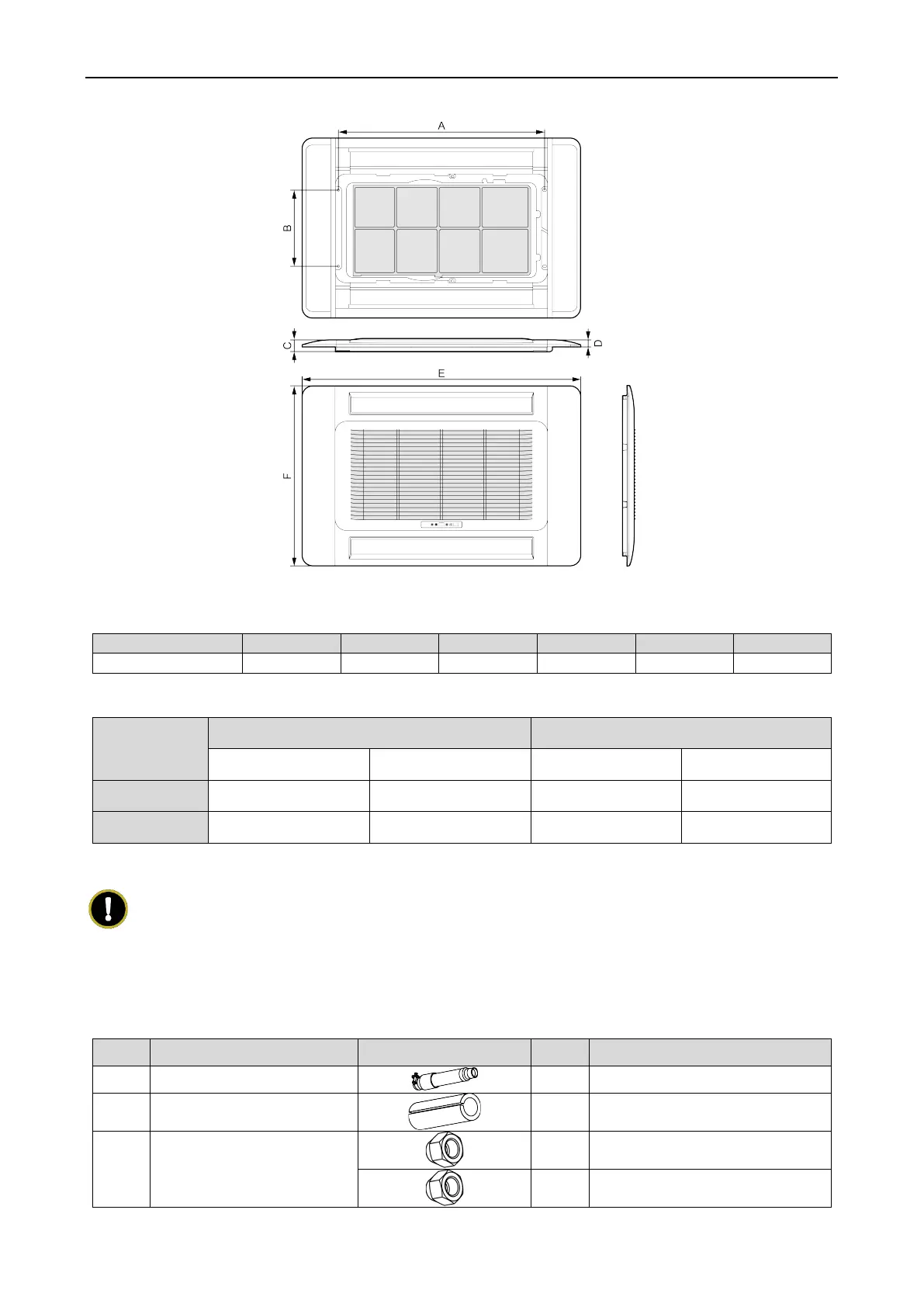

2.2.2 Three-view drawing of panel
Fig.2.2.2
Unit: mm
Model
A
B
C
D
E
F
TE03
813
300
46
28
1100
710
2.3 Rated Working Condition
—
Indoor Side Condition Outdoor Side Condition
Dry Bulb Temp
℃
Wet Bulb Temp
℃
Dry Bulb Temp
℃
Wet Bulb Temp
℃
Rated Cooling 27 19 35 24
Rated Heating 20 15 7 6
3 Preparations for Installation
NOTE:
this picture is for reference only, please refer to the actual product, the unit of dimension is
mm.
3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No. Name Appearance Q'ty Usage
1 Drainage hose assembly 1 To connect the drainage pipe
2 Insulation 2 To insulate the gas/ liquid pipe
3 Special Nut
2 GMV-ND28~50TS/B-T
1
GMV-ND56~80TS/B-T
