Gree GMV-ND36ZD/A-T

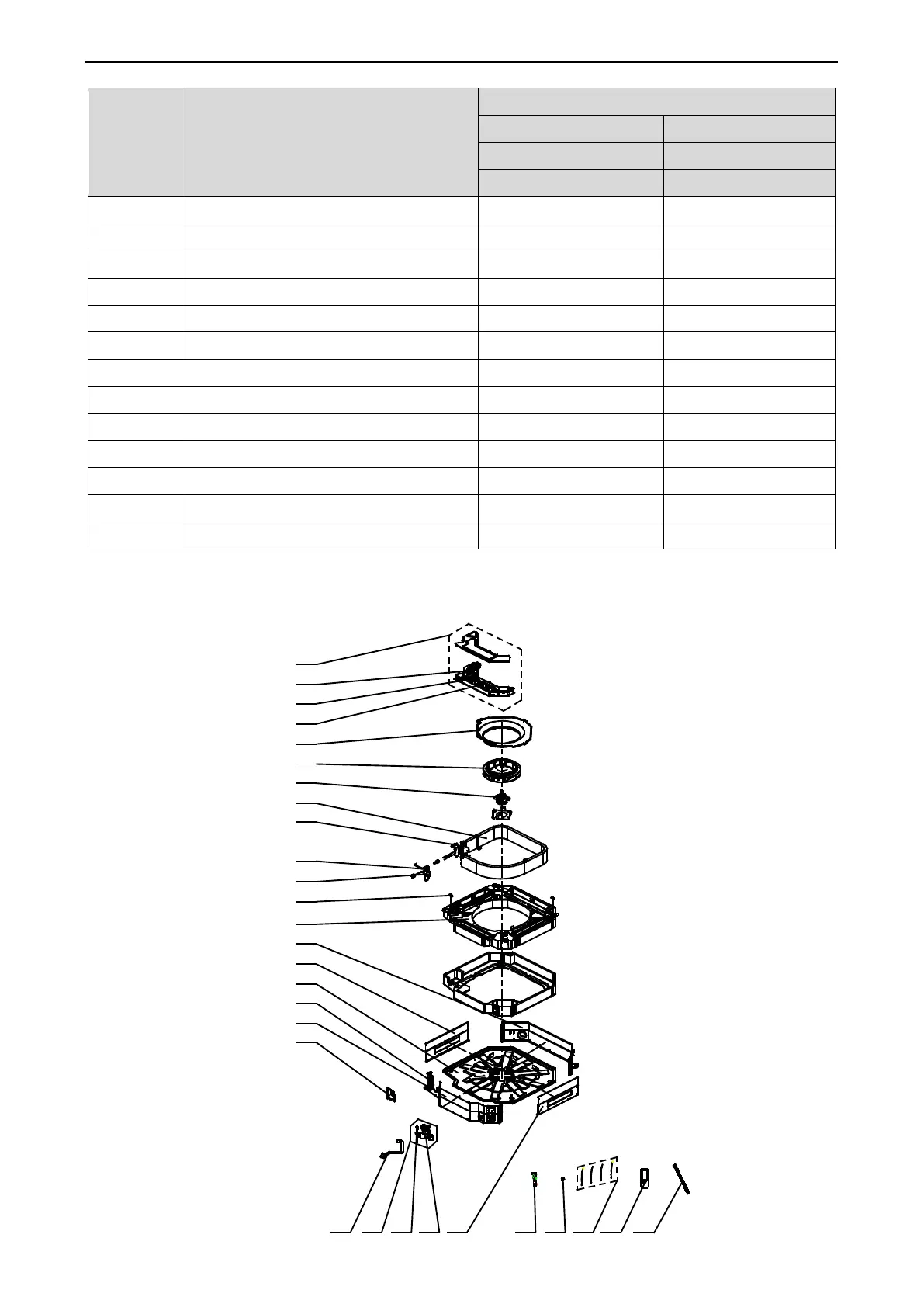

GREE GMV5 INDOOR UNIT SERVICE MANUAL
206
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND36T/A-T
CM500N0390
Part code
Quantity
18
Body Installing Plate
01332701
1
19
Front Side Plate
01302731
1
20
Tube Exit Plate Assy
01382717
1
21
Pump Drainpipe
05232721
1
22
Water Pump Assy
15409405
1
23
Water Level Switch
45020216
1
24
Water Pump
43138000068
1
25
Right Side Plate
01302734
1
26
Drain Hose Sub-Assy
007008000001
1
27
Electric Expand Valve Fitting
4304413215
1
28
Sensor Sub-assy
39008000013G
1
29
Remote Controller
30510589
30
Corrugated Pipe
0502513401
Above data is subject to change without notice, pls refer the SP in global service website.
1
2
3
4
5
6
7
8
9
14
15
16
17
18
19
13
10
11
12
20 21 22 23 24
25 26 27 28
29
