Gree GMV-ND36ZD/A-T

GREE GMV5 INDOOR UNIT SERVICE MANUAL
241
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND40SPL/B1-T
CM810N1550
GMV-ND45SPL/B1-T
CM810N1350
GMV-ND50SPL/B1-T
CM810N1540
GMV-ND56SPL/B1-T
CM810N1530
GMV-ND63SPL/B1-T
CM810N1360
25
Drain Hose Sub-Assy
5232050
1
26
Water Level Switch
4501270303
1
27
Water Pump
4313822002
1
28
Electric Expand Valve Fitting
4304413253
1
29
Electronic Expansion Valve
7334466
1
30
Strainer
721200102
1
31
Strainer
7213050
1
32
Evaporator Assy
1024100211
1
34
Air Outlet Frame Assy
1374100091
1
35
Top Cover Board Assy
1265200068
1
Above data is subject to change without notice, pls reference the SP in global service website.

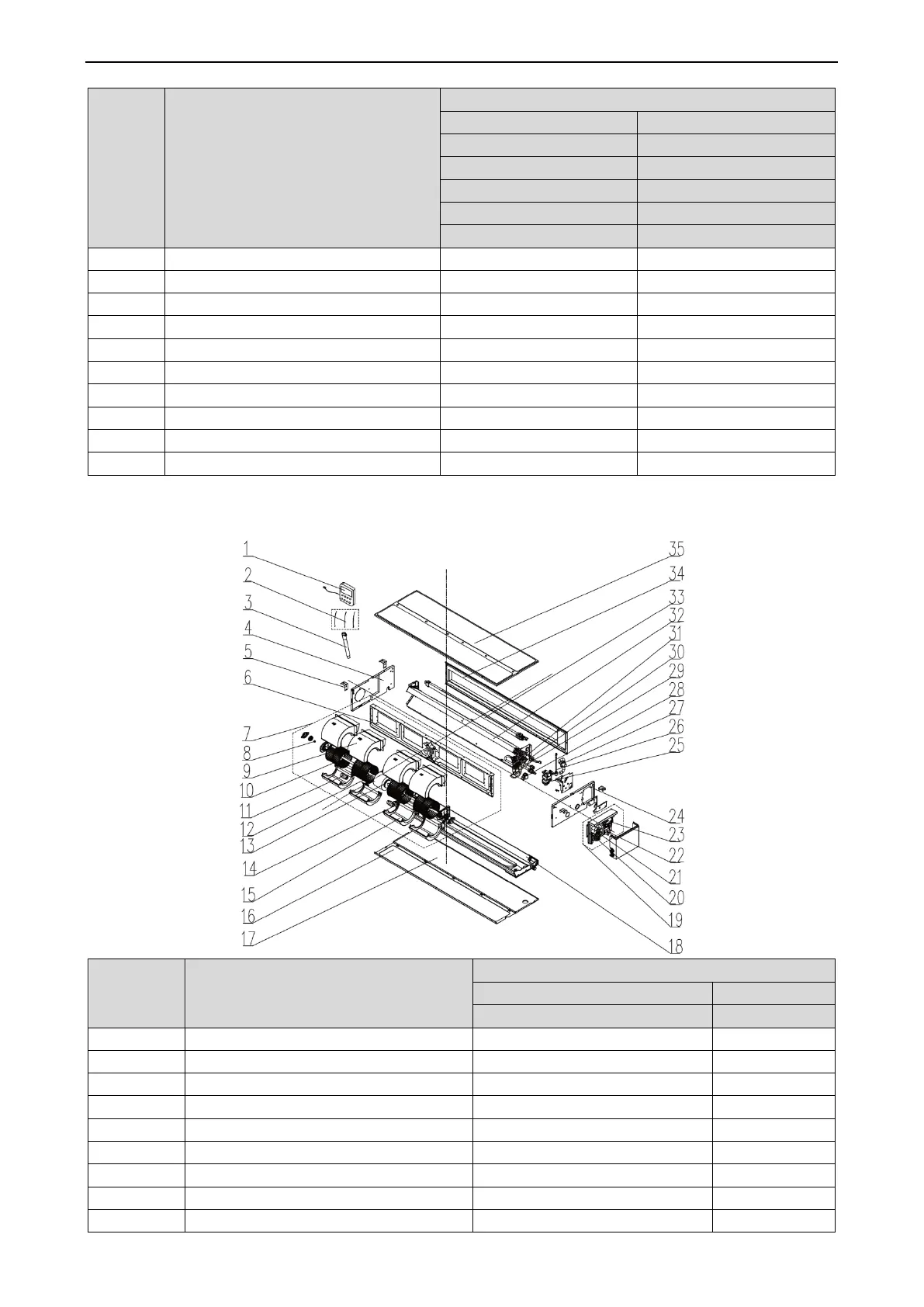

Exploded View of GMV-ND71PLS/B1-T
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND40SPL/B1-T
CM810N1550
1
Display Board
30296000026
1
2
Sensor Sub-Assy
39004168G
1
3
Corrugated Pipe
05010051
1
4
Right Side Plate Assy
01315200053
1
5
Hook
02112446
2
6
Blower Mounting Plate Sub-Assy
0132
520005
3
1
7
Centrifugal fan assy
15404100038
1
8
Fan Bearing
76512210
1
9
Propeller Housing(Upper)
26905200018
4
