Gree GMV5 Compact Series Service Manual

MAINTENACE 01020
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
6、Assemble unit
 Assemble the unit in the
the converse sequence
Removal operation of compressor
Remark: Before removing the compressor,make sure that there is no refrigerant inside the pipe system and that the
power has been cut off.
Process
Operation Instruction

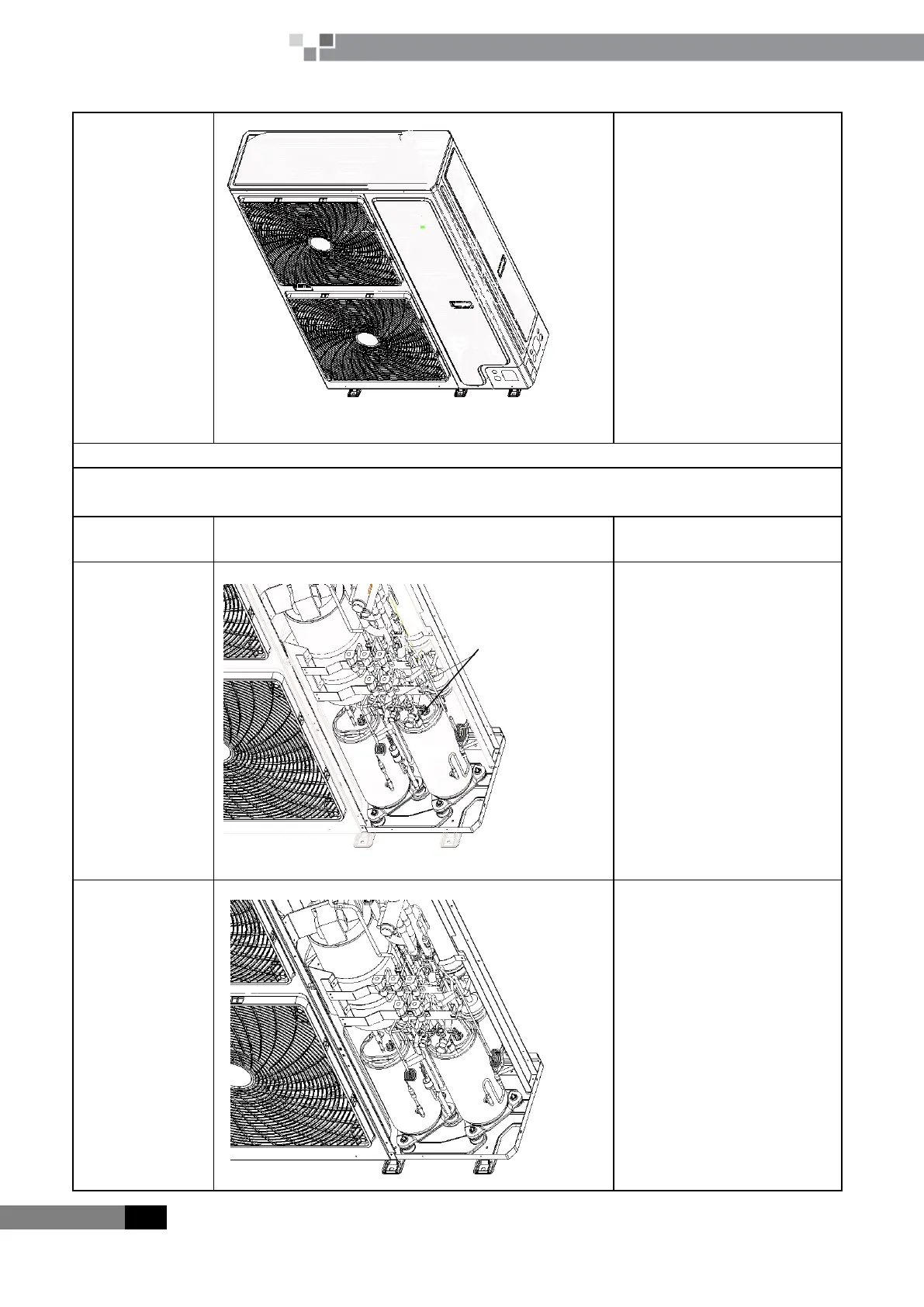

1、Remove wiring
cover of
compressor
 Loose screws fiixng the
compressor with screw-
driver
 Then pull out the power
cord
 Note:When removing the
power cord, make marks
for different color power
cords and corresponding
wiring terminals for wrong
terminal
2、 Disconnet the
compressor and
the conneting pipe
 Weld suction pipe and
discharge pipe of
compressor
 Then pull out the
connection pipe from the
compressor
 Note: During welding
process, do not let the
flame burn out other parts
When removing the
power cord, make
marks for different
color of power cords
and
corresponding
