Gree GMV5 Compact Series Service Manual

0 107 MAINTENACE
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
3、Replace the
electronic
expansion valve
 Weld the connection pipe
of electronic expansion
valve
 Inistall the coil of
electronic expansion valve
 Note ： During welding
process, do not let the
flame burn out other parts

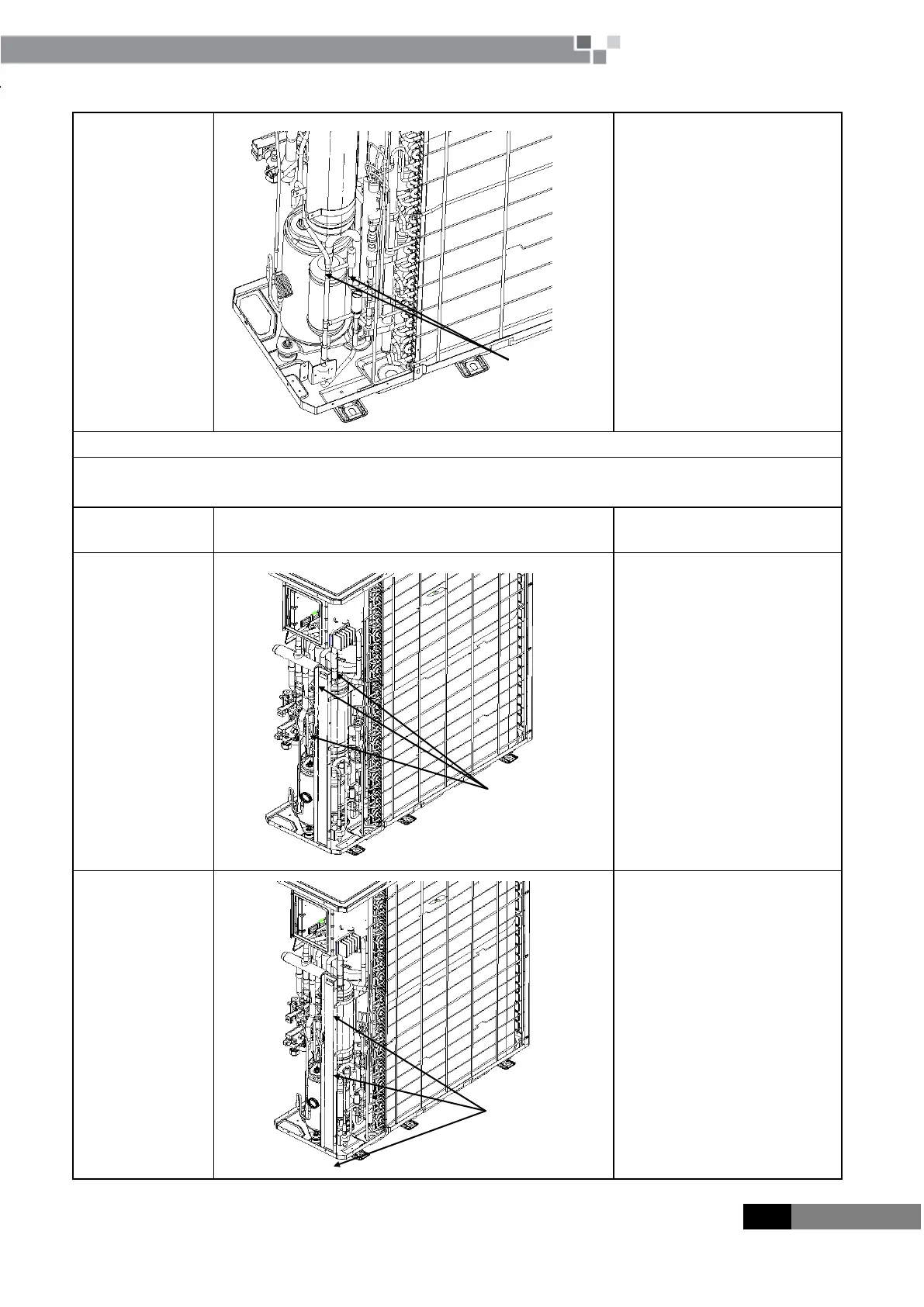

Removal operation Oil Separator
Remark: Before removing the oil separator, make sure that there is no refrigerant inside the pipe system and that
the power has been cut off.
Process
Operation Instruction
1、Disconnet the
oil separator and
the conneting pipe
 Remove the oil separator
at first
 Weld the connection pipe
for oil separator, and then
pull out the connection
pipe
 Note ： During welding
process, do not let flame
burn out other parts
2、Remove the oil
separator
 Loose the screws fixing
the oil separator with
screwdriver
Weld the connection pipe of
electronic expansion valve
Weld the connection
pipe for oil separator
Loose 3 screws
