When COOL or DRY is running, condensate will drain to water tank. When water tank is filled
buzzer will sound 8 timers for warn, water tank green indicated light on panel on with H8
onto pipe to prevent leakage of condensate and fix drainage pipe fixing clamp as shown in
following figure. The unit will resume running when water filled protect released and
compressor stops for 3 minutes.
displayed on display window and whole unit stop running. Plug out plug on drainage hose and
take off the hose from fixing clamp, then drain out water in tank. After that, plug the pipe plug
Install of drainage hose(as shown in following figure):
Note
Drainage hose must be installed before using otherwise block of drain may
occur and affects normal run of unit.

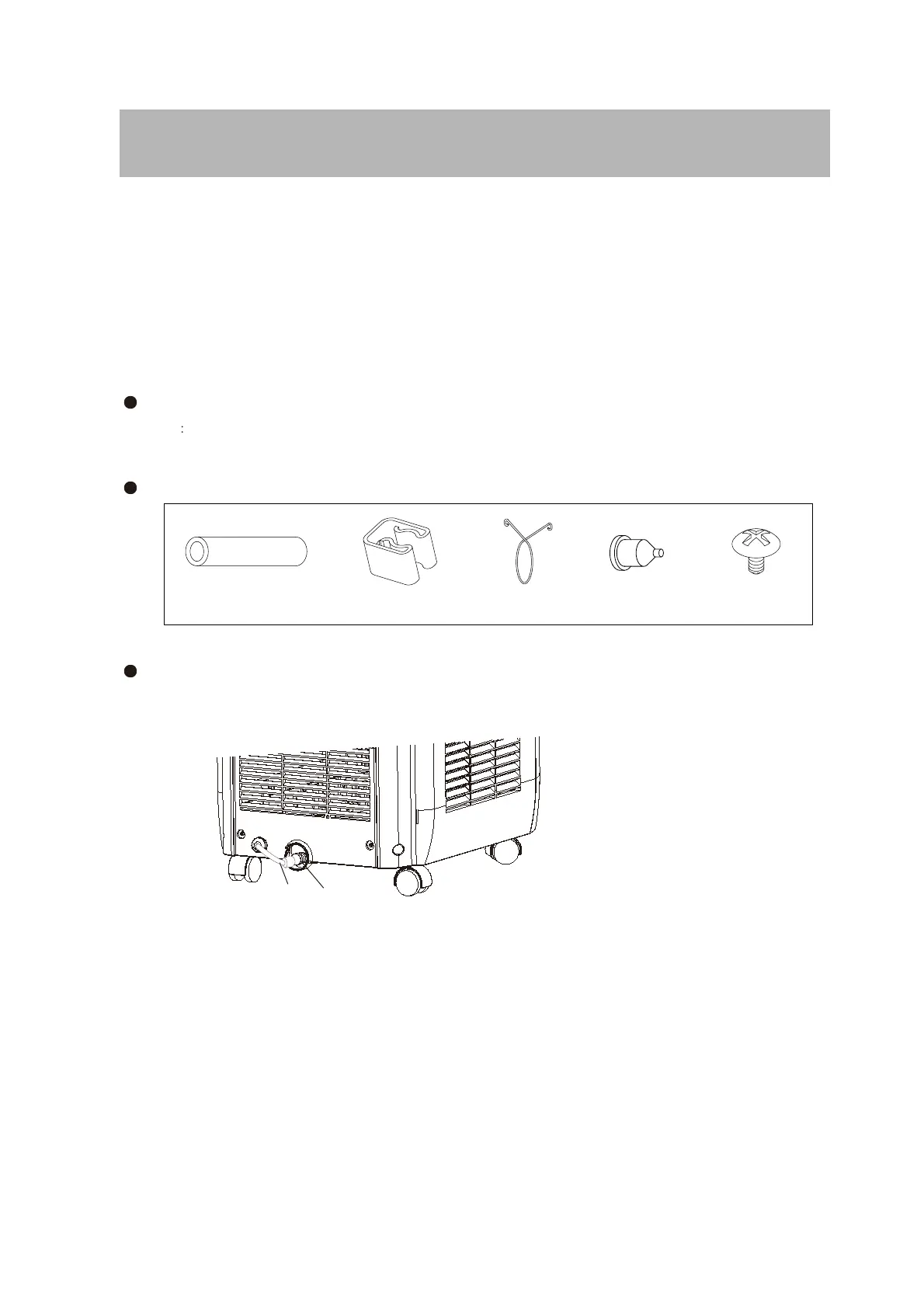

Drain Hose included:
Install Drain Hose
1. Remove drain cap from drain port.
Drain Cap
2. Attach one end of the drain hose to the drain port with the clamp. See Drain Hose graphic.
3. Insert the drain plug into the other end of the drain hose and secure with clamp. See Drain Hose graphic.
4. Attach the drain hose clip to the back panel of the air conditioner near the drain port with the screw
provided.
A. Drain port
B. Drain cap
A
B
Drainage pipe
Clamp
Pipe hoop
Rubber plug
Screw
DRAINAGE METHOD
-
