Bird Dual-Split type
Bird Dual-Split Type
Operation procedures/pictures

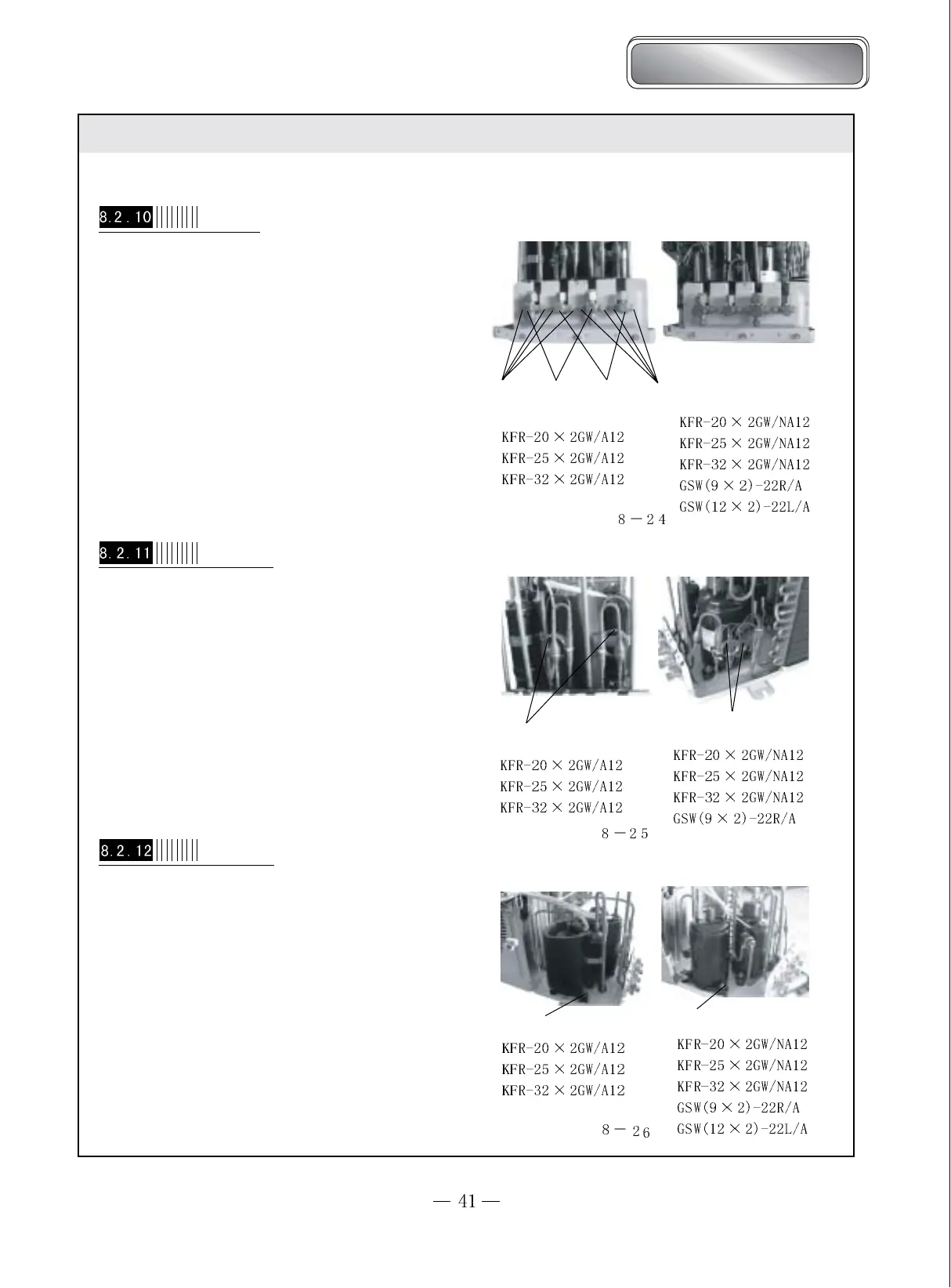

Disassemble the valve gate
Screw off 2pcs bolt of each valve gate,
and unsolder their connection pipe, and
take off the valve gate.(As shown in Fig.
8-24)
Disassemble the capillary
Capillary
Capillary
Fig.
Bolt
Gas valve
Liquid valve
Bolt
Fig.
U nsolder both sides solder joints of capillary,
and can take off the capillary.
(As shown in Fig.8-25)
Disassemble the compressor
Screw off 6pcs bottom nut from two compressors
and unsolder the connection pipe, and take off the
compressor.(As shown in Fig.8-26)
Fig.
Bottom nut
Bottom nut
