Gree GUD50T/A-T Service Manual

GREE U-Match 5 SERIES UNIT SERVICE MANUAL
35

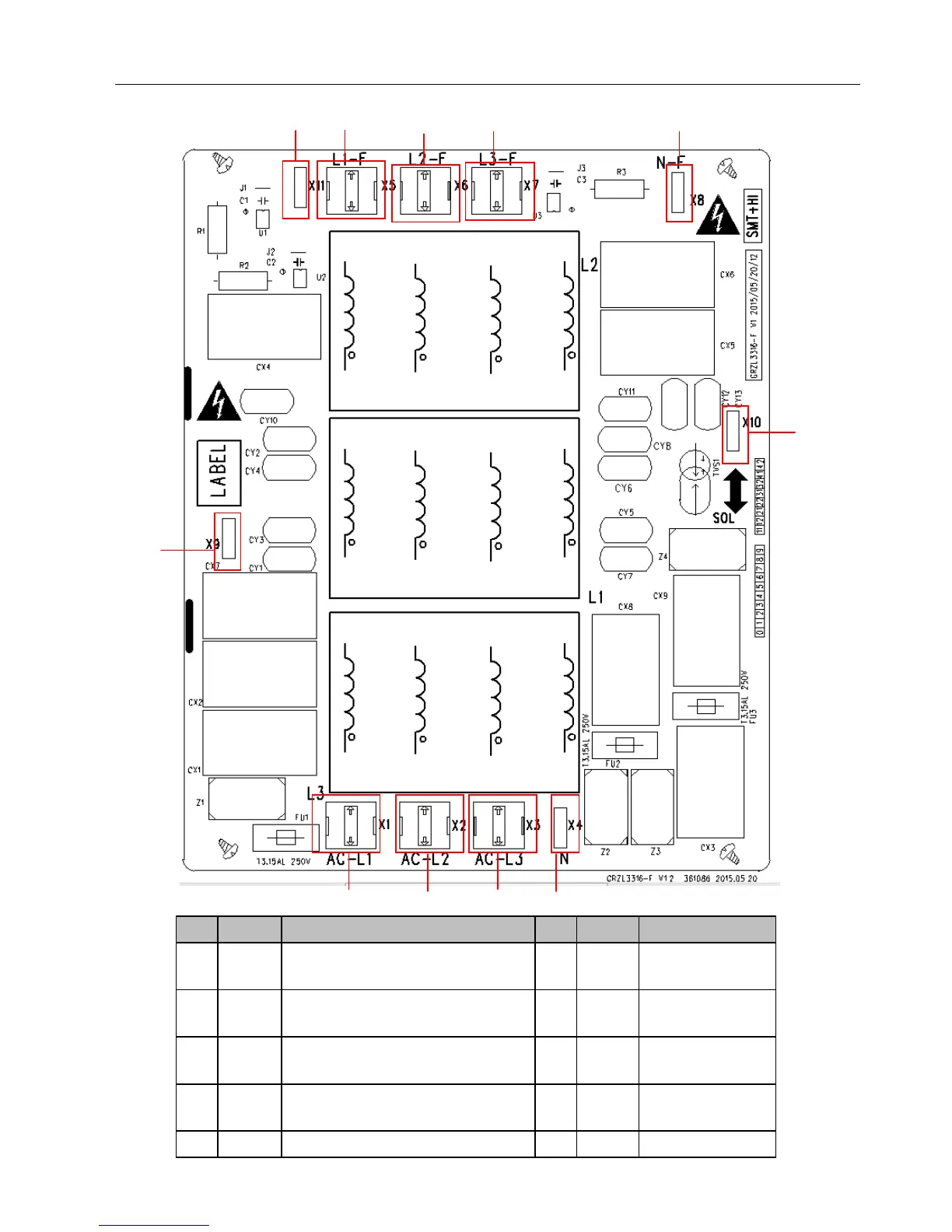

Filtering Board
No.
Printing
Interface
No.
Printing
Interface
1
X11
Power output live wire AC-L1 (connect to
master control board AC-L)
7
X3
Unit power input
wire AC-L3
2
X5
Power output wire L1-F (connect to drive
board L1-F)
8
X2
Unit power input
wire AC-L2
3
X6
Power output wire L2-F (connect to drive
board L2-F)
9
X1
Unit power input
wire AC-L1
4
X7
Power output wire L3-F (connect to drive
board L3-F)
10
X9
Ground wire
5
X8
Power output wire N-F (connect to
11
X4
Unit power input
10
1
⑩
2
⑩
3
⑩
4
⑩
6
7
10
5
⑩
8
9
