Technical Information
Service Manual

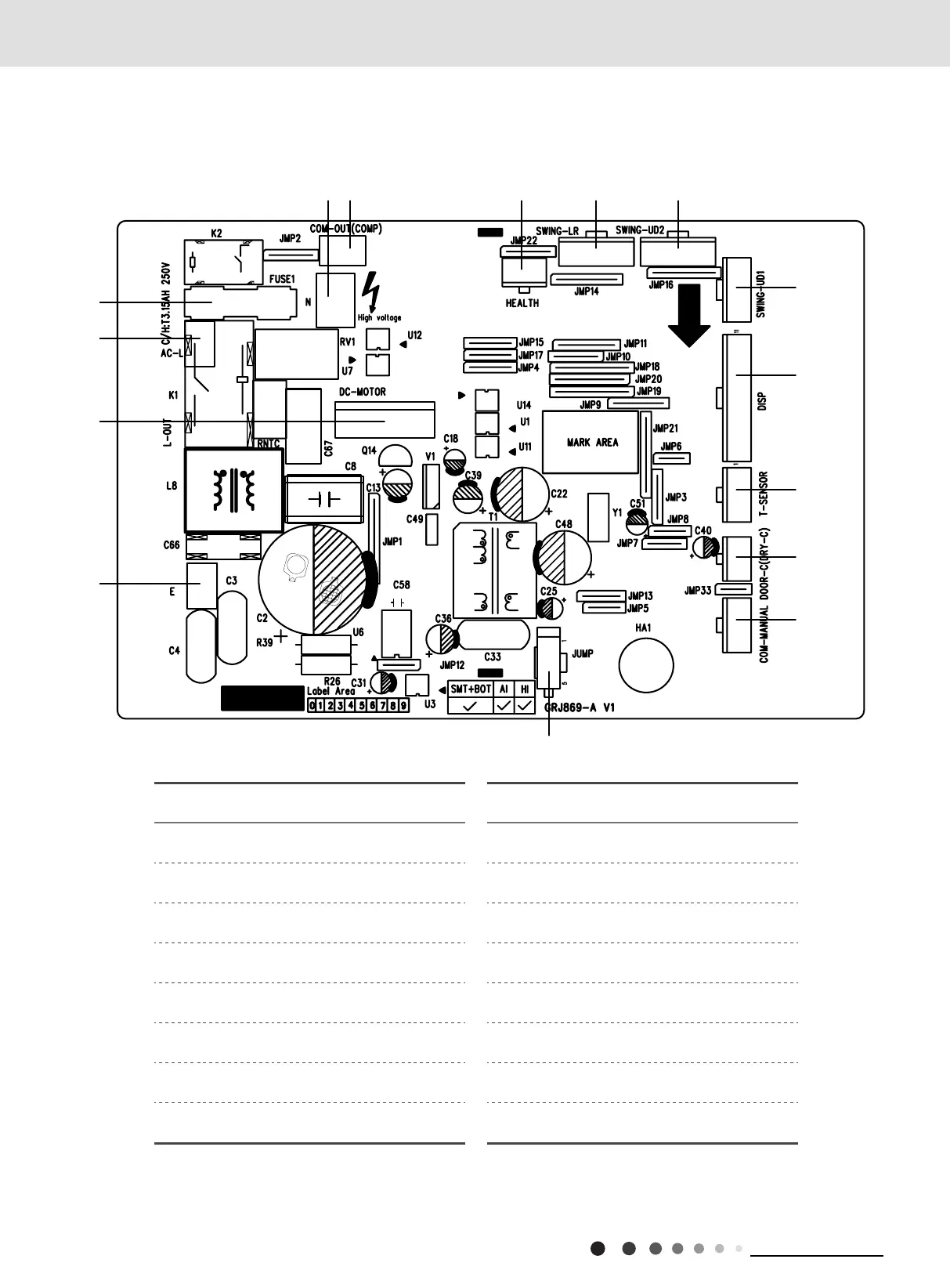

5.2 PCB Printed Diagram
Indoor Unit
1
2
3
4
15
869
10
11
12
13
14
75
No. Name No. Name
1 Earthing wire terminal 9 Up & down swing terminal 2
2 Brushless DC Motor terminal 10 Up & down swing terminal 1
3 Live wire terminal 11 Display board terminal
4 Fuse 12 Temperature sensor tube terminal
5 Neutral wire terminal 13 Door-control terminal (Dry contact)
6 Communication wire terminal 14 Wired controller
7 Health function terminal 15 Jumper cap terminal
8 Left & right swing terminal
