11.2 Removal Procedure of Outdoor Unit
Caution: discharge the refrigerant
completely before removal.
12K
NOTE:Take heat pump for example.
(The front grill appearance is for reference only)

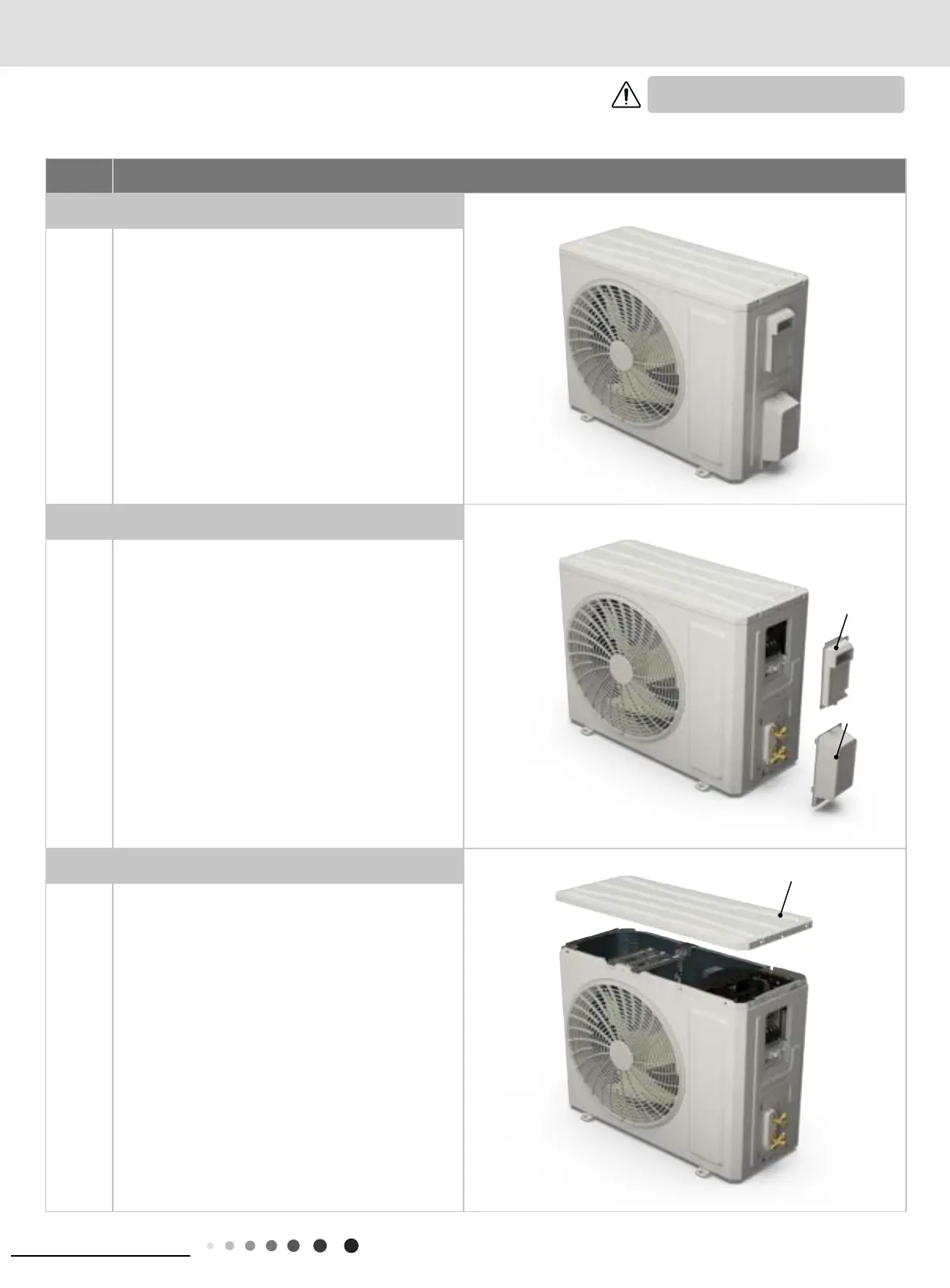

Step Procedure
1. Before disassembly
2. Remove big handle and valve cover
Remove the screws xing big handle
,
valve cover and
then remove them.
3. Remove top cover
Remove the screws xing top panel and then remove
the top panel.
Big handle
Valve cover
Top cover
