Technical Information
Service Manual
GWC24ATEXF-K6DNA1E/O
GWH24ATEXF-K6DNA1E/O
GWC28ATEXF-K6DNA1A/O
GWH28ATEXF-K6DNA1A/O

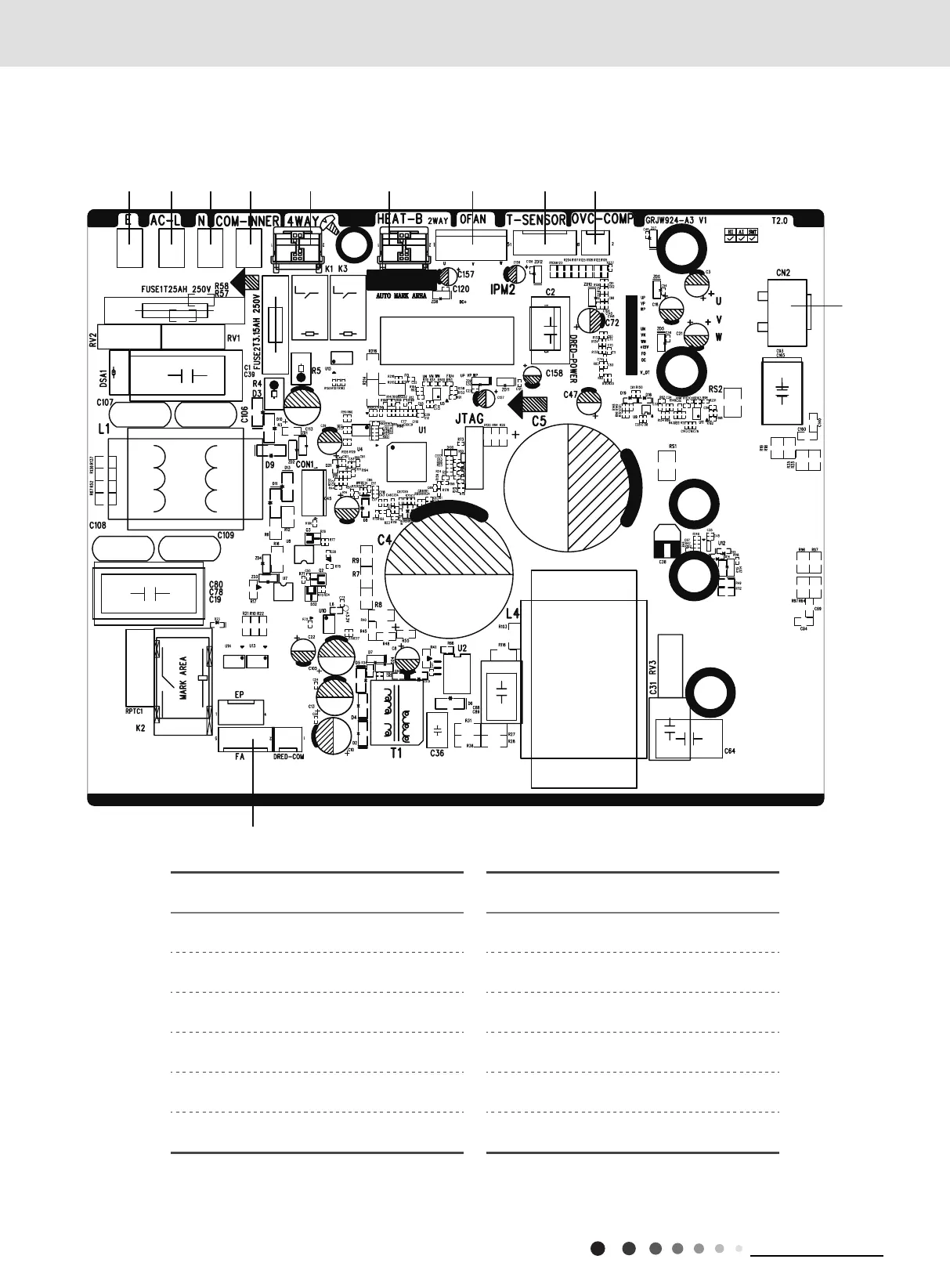

No. Name No. Name
1 Earthing wire terminal 7 Outdoor fan terminal
2 Live wire terminal 8 Temperature sensor terminal
3 Neutral wire terminal 9 Overload terminal
4 Communication cable terminal 10 Three-phase terminal of compressor
5 4-way valve terminal 11 Electronic expansion valve terminal
6 Electric heating belt of chassis terminal
