182
Installation and Maintenance
Service Manual

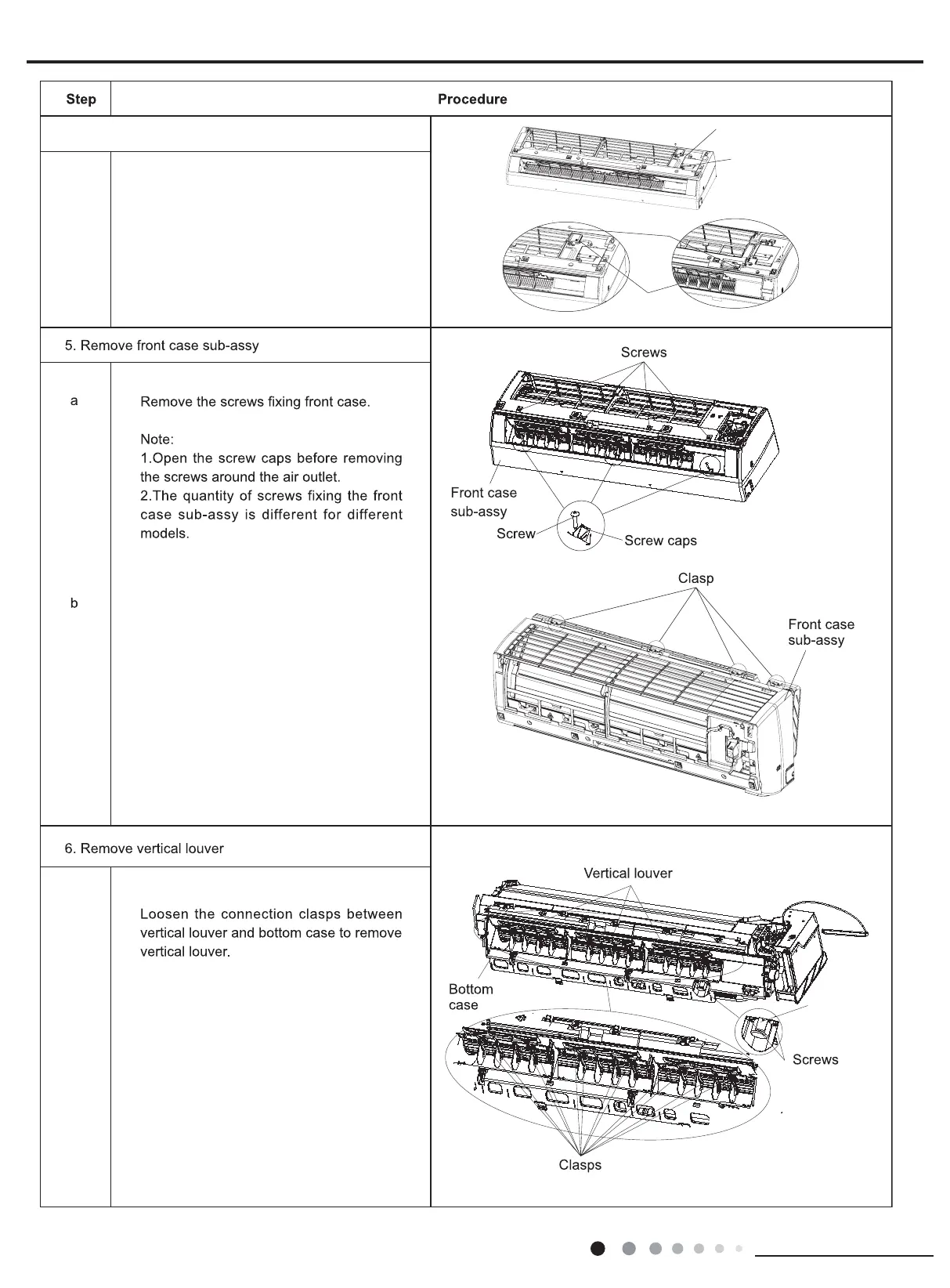

Loosen the connection clasps between
frontcase sub-assy and bottom case.
Lift up the
front case sub-assy and take
Swingmotor
Screw off the screws that are locking
theswing motor and take the motor off.
it out.
4. Remove electric box cover 2 and detecting plate(WIFI)
Remove the screws on the electric box
cover 2 and detecting plate(WIFI), then
remove the electric box cover 2 and
detecting plate(WIFI).
Detecting plate
(WIFI)
Screw
Screws
To Next Page
