53
Technical Information
Service Manual

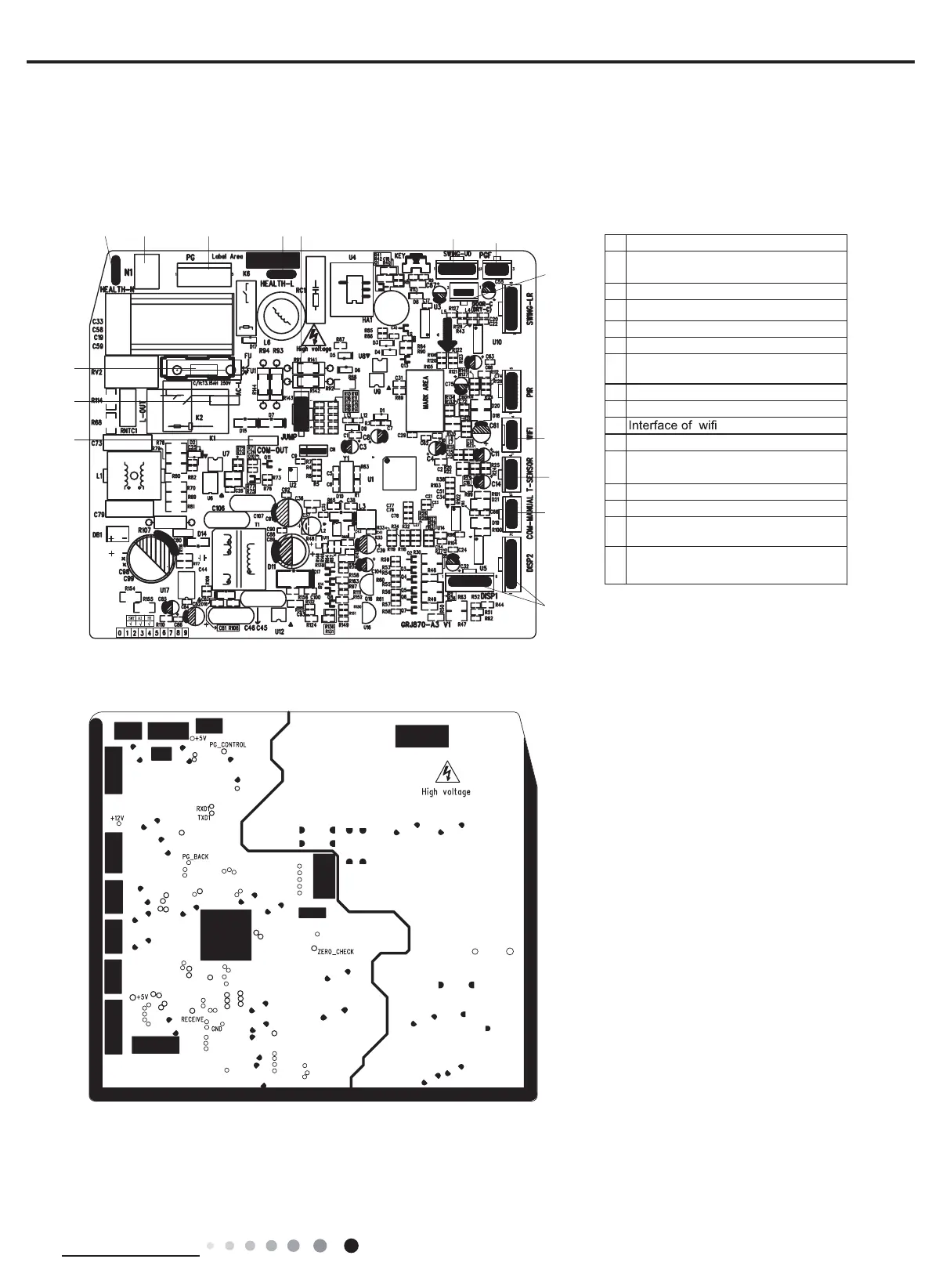

5.2 PCB Printed Diagram
Indoor Unit
No Name
1
Interface of communication wire for
indoor unit and outdoor unit
2Interface of live wire
3Interface of neutral wire
6
4Interface of fan
5Jumper cap
Interface of health function live wire
(only for the mode with this function)
9
10
7Up&down swing interface
8Feedback interface of indoor unit
11
12
13
Interface of tube temperature sensor
Wired controller
(only for the mode with this function)
14
15
● Top view
Display interface
Fuse
Interface of gate control
(only for the mode with this function)
● Bottom view
2
1
13
315
4
56
87
9
10
14
11
12
Interface of health function neutral wire
(only for the mode with this function)
GWH09QB-D3DNC6L GWH12QC-D3DNC6L GWH18QD-D3DNC6L GWH24QE-D3DNC6O
