208
Installation and Maintenance
Service Manual
Foot nuts
Compressor

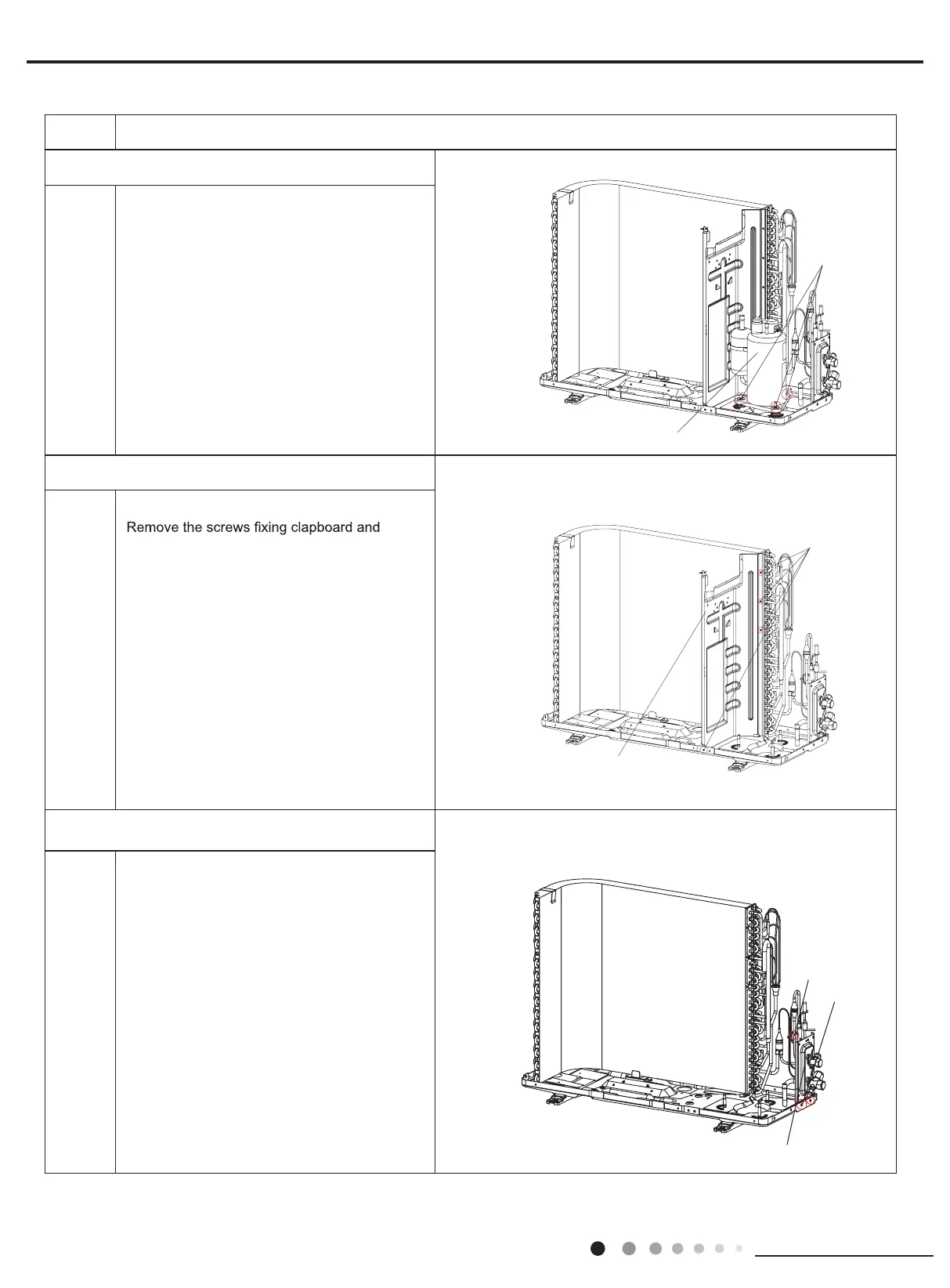

Remove 3 foot nuts on compressor, and
then remove the compressor.
Note:
Protect the ports of discharge pipe and
suction pipe to avoid foreign objects to
enter it.
10.Remove compressor
Procedure
Step
11.Remove clapboard
Screw
Clapboard
then remove the clapboard.
Remove Valve support sub-assy
Foot nuts
Screw
Valve Support Sub-Assy
Screw off the screws that are locking the
valve support sub-assy. Then remove it.
To Next Page
