Removal Procedure
1
Electrical box

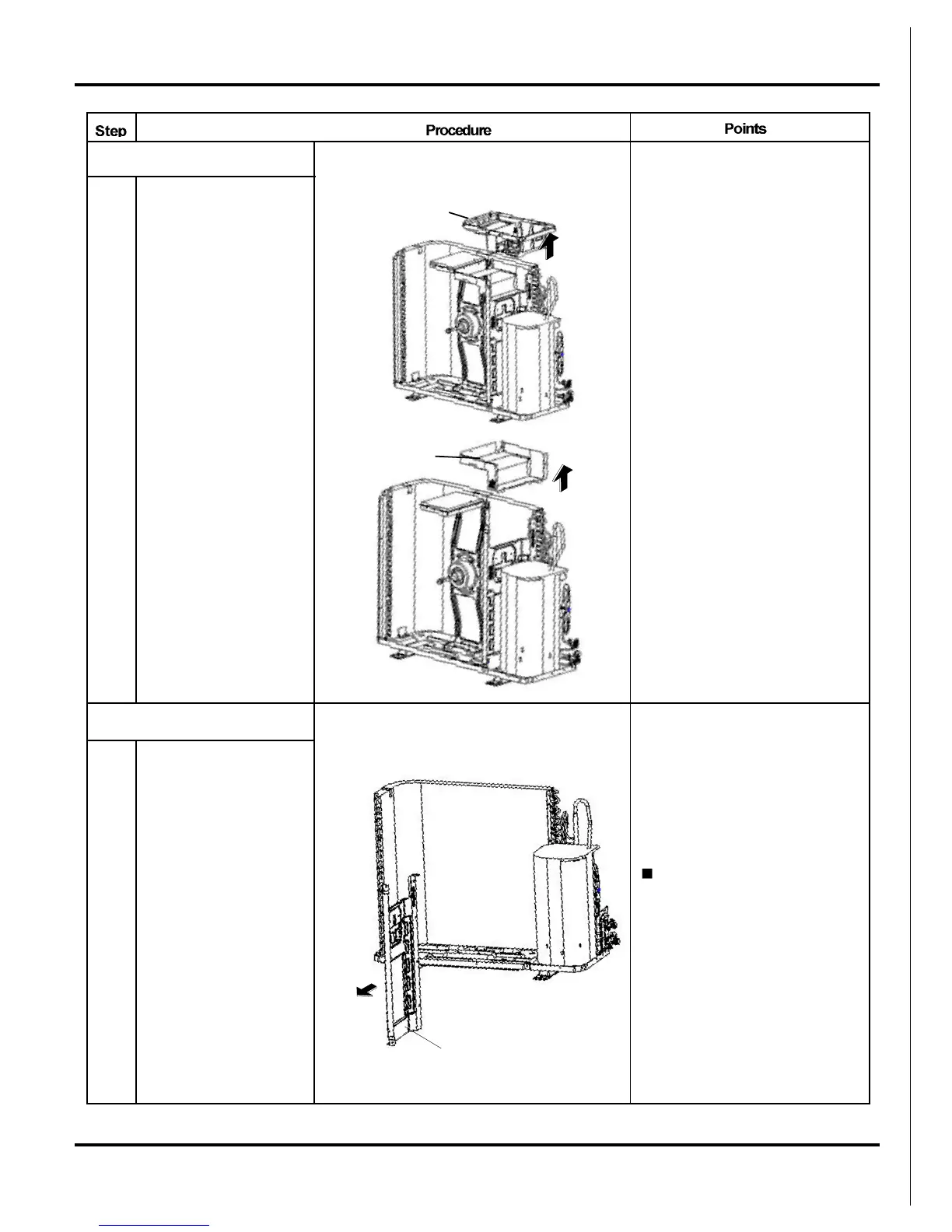

5.Remove the electrical box.
6.Remove the partition plate.
1
Loosen the 2 screws.
2
The partition plate has
a hook on the lower
side. Lift and pull the
partition plate to remove.
Partition plate
The partition plate is fixed to
the bottom frame with a hook.
Electrical box
(fire proofing)
2
Twist off the two screws
fixi
ng the electric box cover
with screwdriver, pull it
upward and then remove
the electric box cover.
Twist off the screws fixing
the electric box with
screwdriver, loosen the
tieline, pull out the wiring
terminal, pull it upward to
remove the electric box
sub-assy.
Twist off the screws fixing
the fire-proof electric box,
pull it upward to remove
the fire-proof electric box.
