2.Remove front grille and front panel
3.Remove right&left side plate

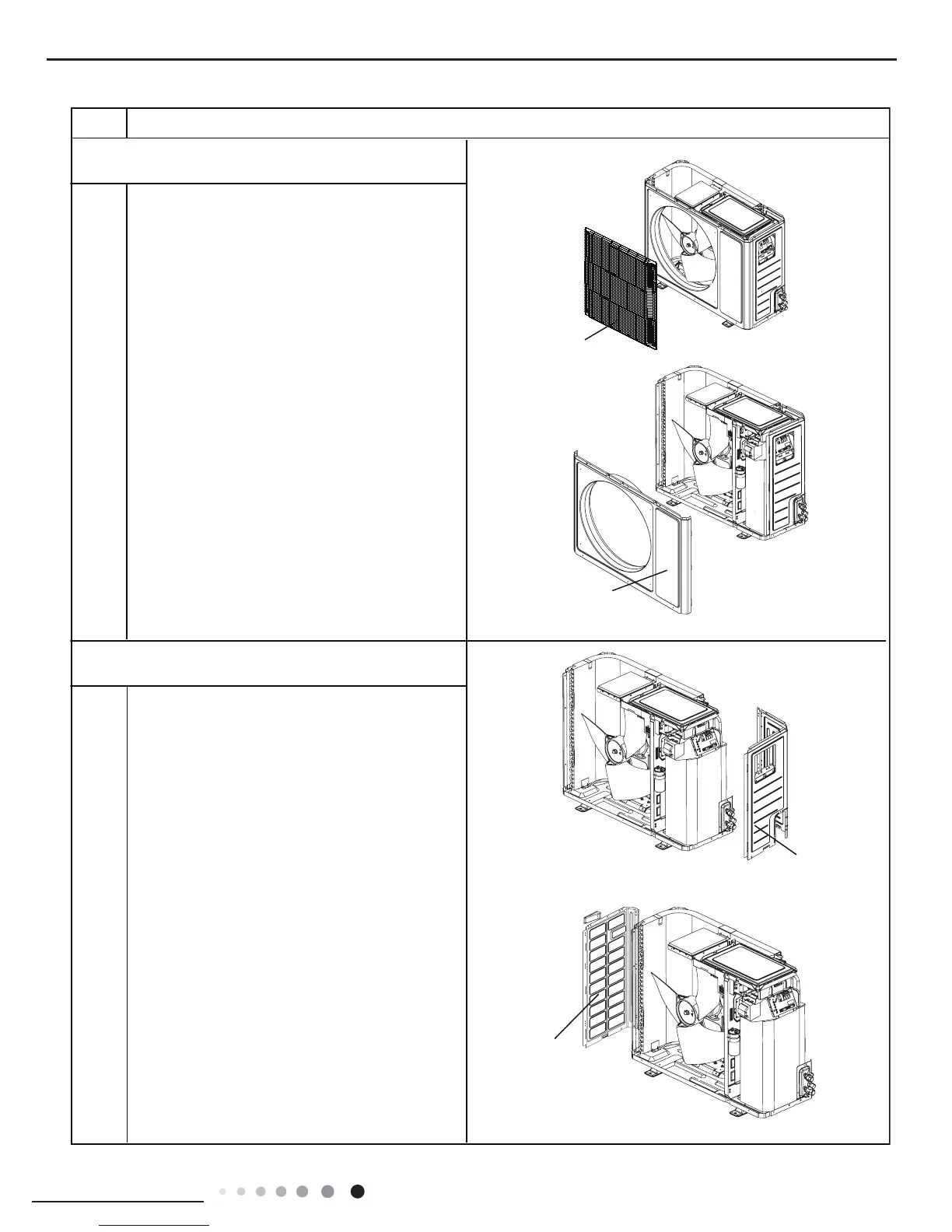

Remove the screws connecting the front grille and
the front panel. Remove the front grille.
1
Twist off the screws fi xing the panel, pull it upward,
loosen the clasp on the right side, rotate it to the
left and then remove the front panel.
2
Remove the screws connecting the right side plate
with the chassis,the valve support and the electric
box, and then remove the right side plate assy.
1
Remove the screws connecting the left side plate
and the chassis, and then remove the left side
plate assy.
2
front panel
right side plate
front grille
left side plate
ProcedureSteps
