5. Electrical Part

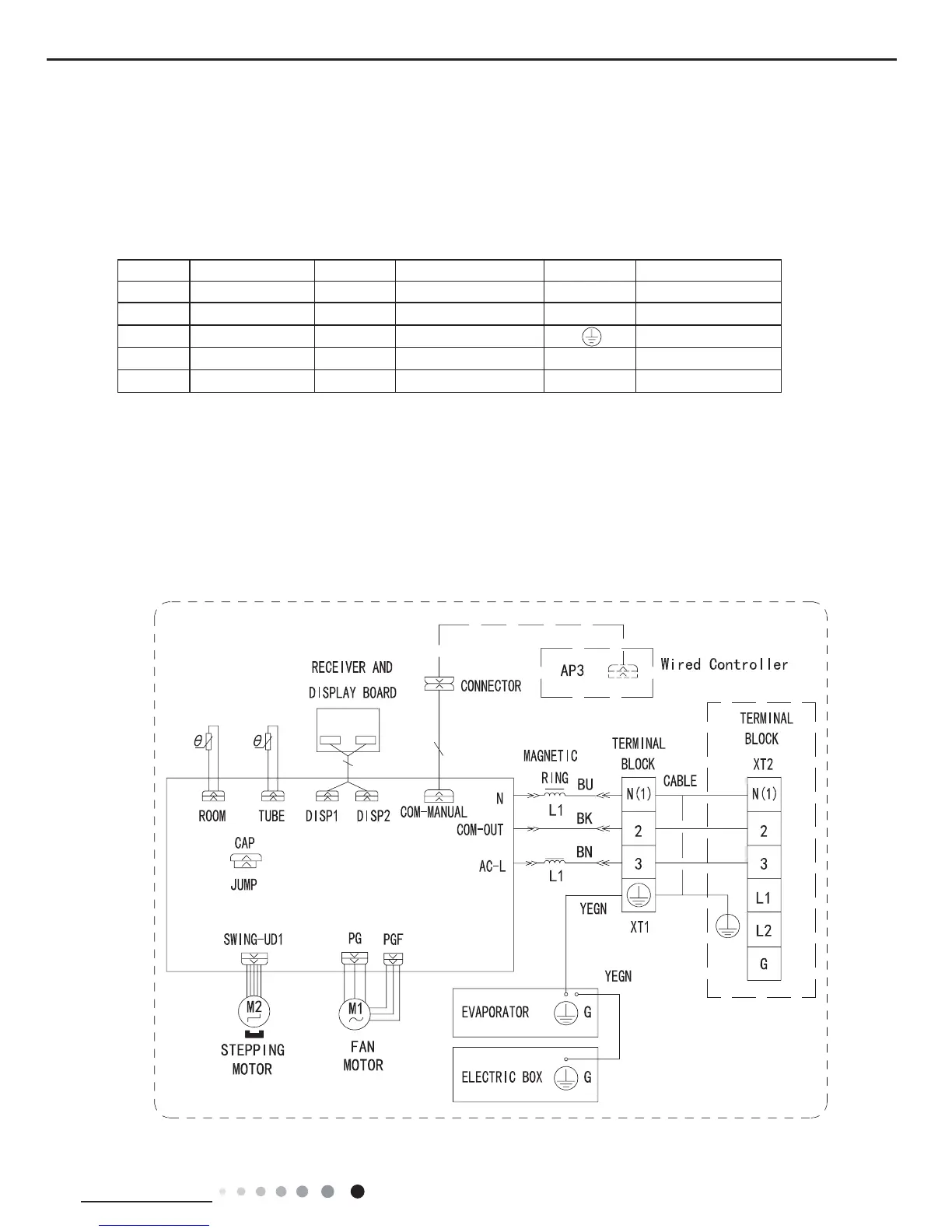

5.1 Wiring Diagram
● Indoor Unit
●Instruction
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green CAP Jumper cap
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model.
$3
$30$,1%2$5'
57
57
7(036(1625
7(036(1625
78%(
5220
287'22581,7
GWC18MC-D3DNA3F/I GWC18MC-D3DNA5F/I GWH18MC-D3DNA3F/I GWH18MC-D3DNA8F/I GWH18MC-D3DNA5F/I
