11.2 Removal Procedure of Outdoor Unit
Warning: Be sure to wait for a minimum of 20 minutes after
turning off all power supplies and discharge the refrigerant
completely before removal.

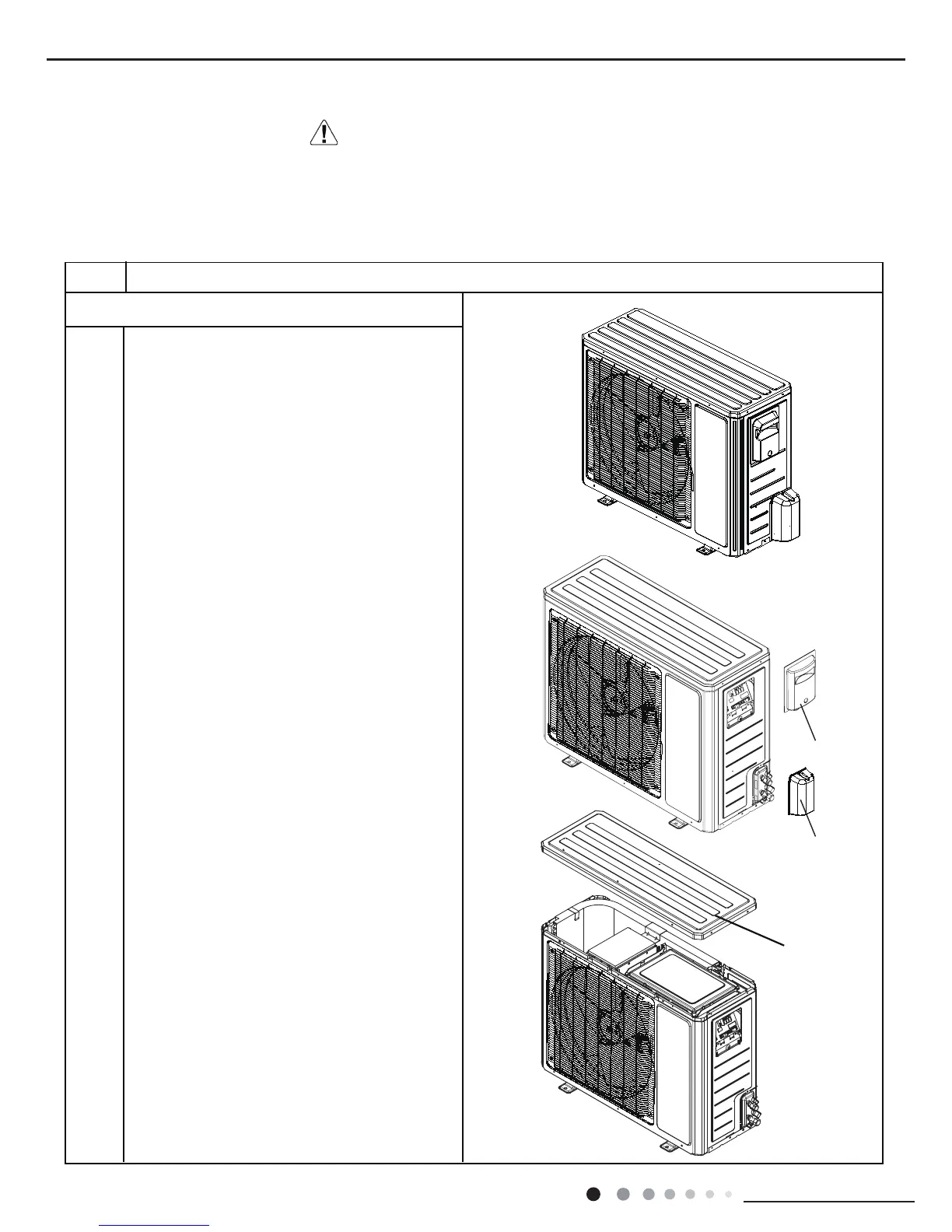

1. Remove top cover and handle
Before disassembly.
Twist off the screws used for fi xing the handle, pull
the handle upward to remove it.Loosen the screws
fixing the valve cover and then remove the valve
cover.
Twist off the screws used for fi xing the top cover, pull
the top cover upward to remove it.
top cover
1
2
3
handle
valve cover
ProcedureSteps
NOTE:Take heat model without electric heating belt for example.
18K:
