101
Installation and Maintenance
Service Manual
a
b
ProcedureSteps

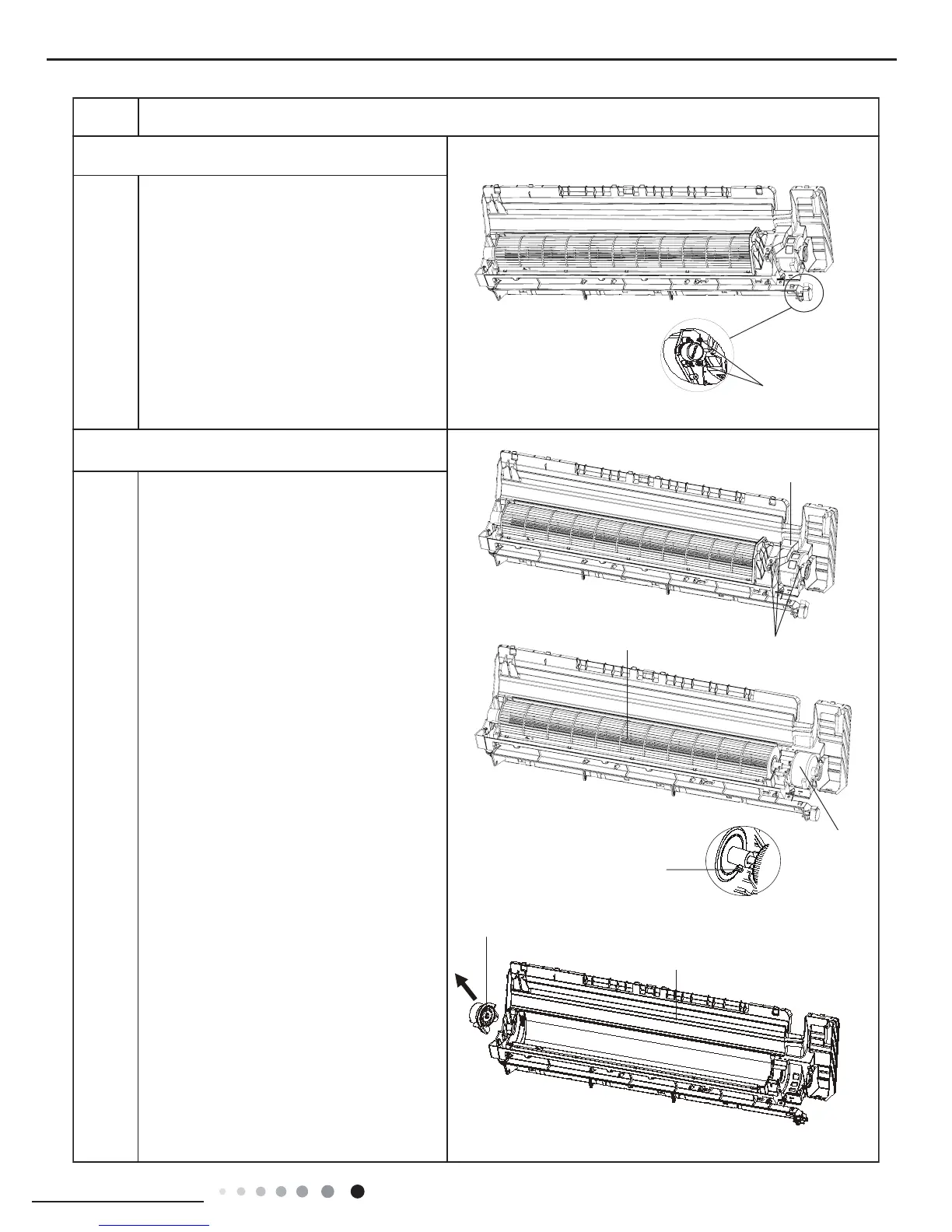

10. Remove motor and cross flow blade
9. Remove stepping motor
Remove the screws fixing motor clamp and
then remove the motor clamp.
Remove the screws at the connection place of
cross flow blade and motor; lift the motor and
cross flow blade upwards to remove them.
c Remove the bearing holder sub-assy.
Remove the screw fixing step motor and then
remove the step motor.
holder sub-assy
bottom case
cross flow
motor clamp
motor
screws
screw
screws
To Next Page
