100
Installation and Maintenance
Service Manual
a
c
d
b
ProcedureSteps

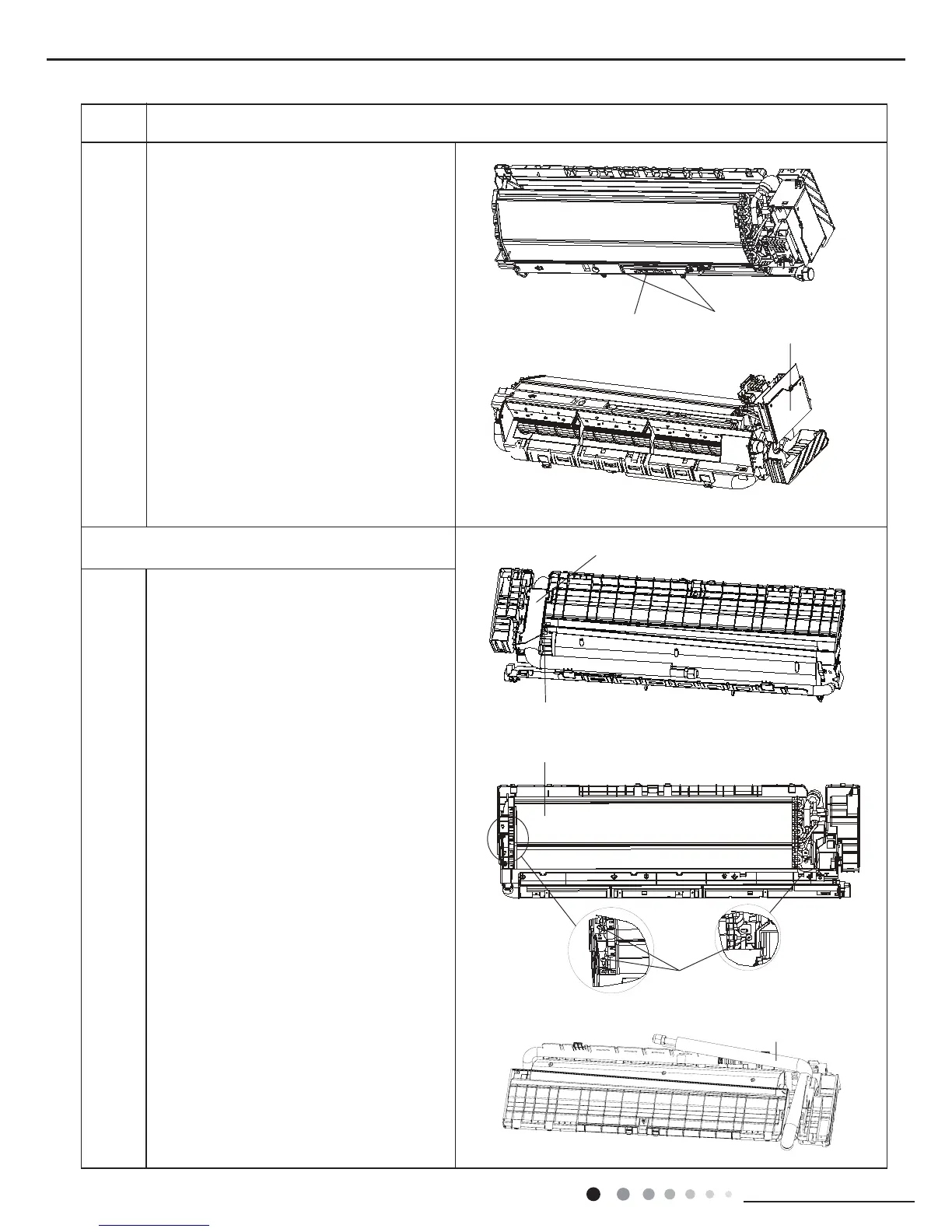

8. Remove evaporator assy
At the back of the unit, remove the screw fixing
connection pipe clamp and then remove the
connection pipe clamp.
Remove 3 screws fixing evaporator assy.
evaporator
c Adjust the position of connection pipe on
evaporator slightly and then lift the evaporator
upwards to remove it.
connection pipe
Remove two screws fixing display.
Note:
The display of some models is fixed on the
panel; unscrew the screws fixing the display on
the panel before removing the panel.
display
Remove the screw fixing electric box assy and
then remove the electric box assy.
electric box
screws
screws
screw
pipe clamp
To Next Page
