Step Procedure

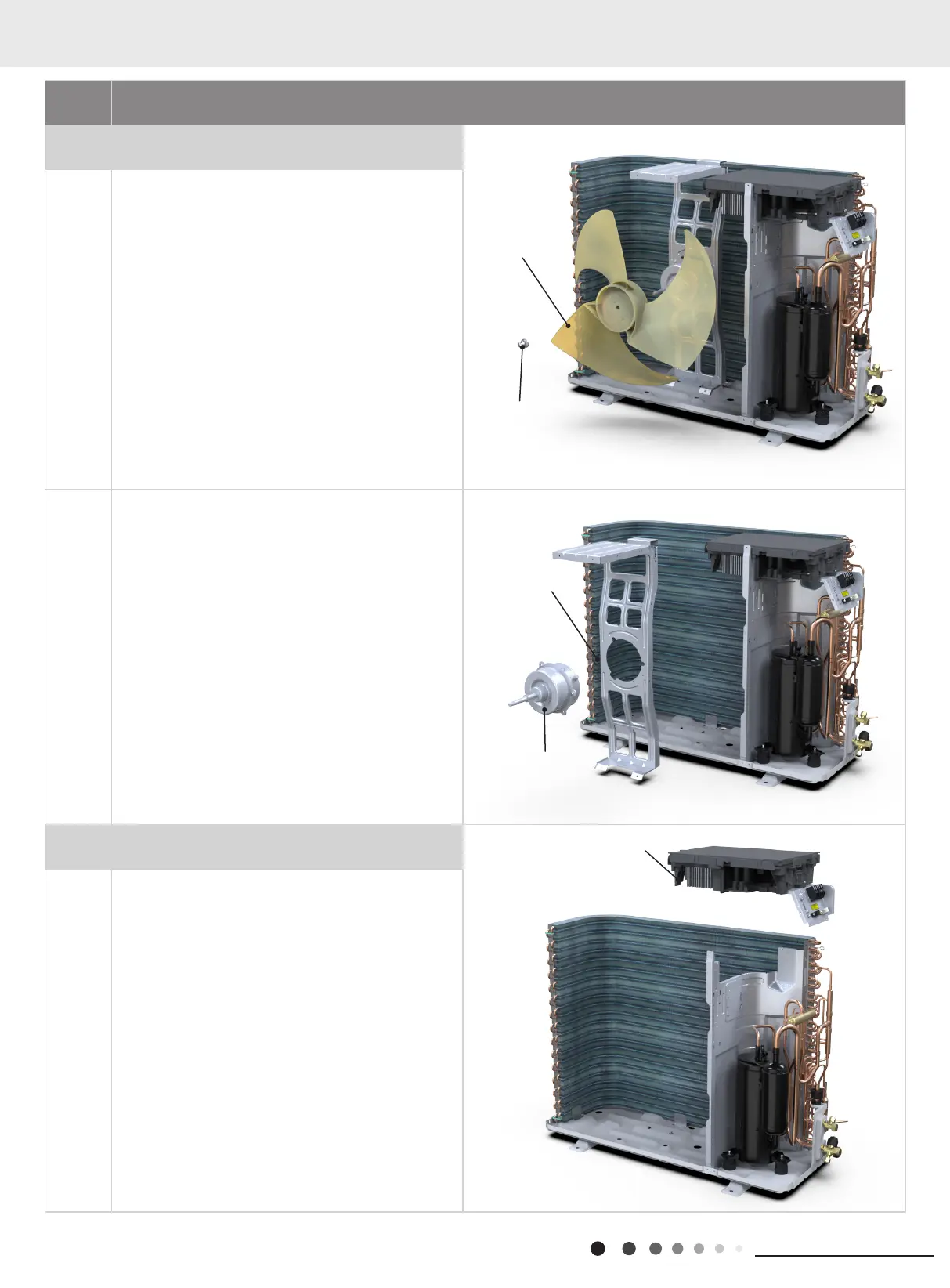

4. Remove axial ow blade
a
Remove the nut xing axial ow blade and then remove
the blade.
b
Remove the 6 screws xing the motor and then remove
the motor.
Remove the 2 screws connecting the motor support
and chassis, and then loosen the stopper to remove the
motor support.
6. Remove electric box assy
Remove the screws fixing electric box assy ; pull out
each wiring terminal; lift the electric box assy upwards
to remove it.
Note:
When pulling out the wiring terminal, pay attention to
loose the clasp and don't pull it so hard.
Axial ow blade
Motor support
Electric box assy
Motor
Nut
