Installation and Maintenance
Service Manual

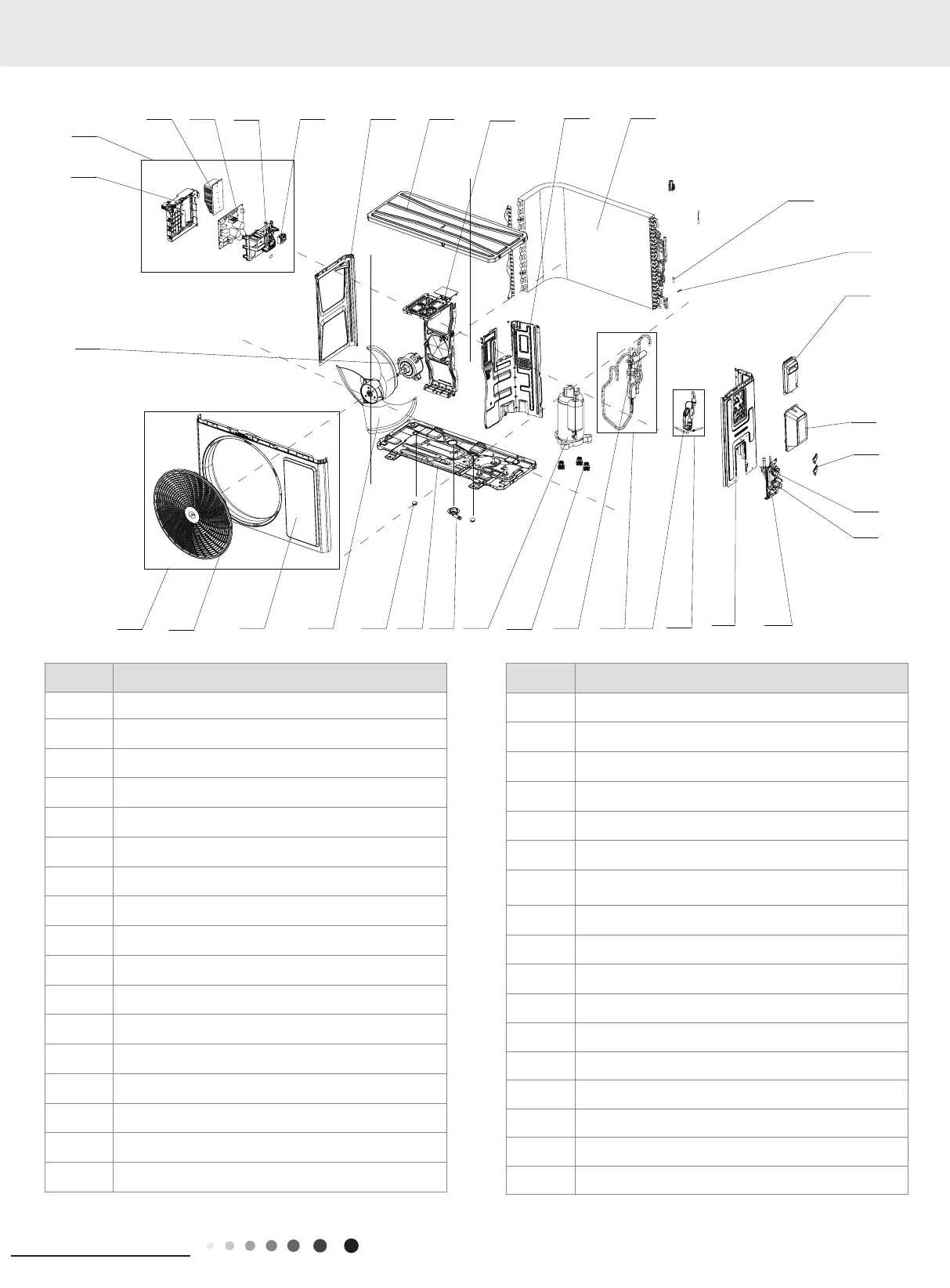

The component is only for rererence;please refer to the actual product
GWH24ALD-K6DNA1B/O
3
4
5
6
710
12
8
11
14
15
1
2
33
34
22
24
23
25
31
2628
2729
16
19
18
30
32
20
21
17
13
9
NO. Description
1 Front Panel Assy
2 Front grill
3 Front Panel
4 Axial Flow Fan
5 Drainage hole Cap
6 Chassis Sub-assy
7
Drainage Joint
8 Compressor and Fittings
9 Compressor Gasket
10 4-Way Valve
11 4-Way Valve Assy
12 Capillary Tube
13 Capillary Tube assy
14 Right Side Plate Assy
15 Valve Support
16 Cut-off valve 1/2(N)
17 Cut-off valve 1/4(N)
NO. Description
18 Valve Support Block
19 Valve Cover
20 handle
21 Sensor Insert
22 Temp Sensor Sleeving
23 Condenser Assy
24 Clapboard Sub-Assy
25 Motor Support Sub
26 Top Cover Sub-Assy
27 Left Side Plate
28 Terminal Board
29 Electric Box Cover
30 Main Board
31 Radiator
32 Electric Box Assy
33 Electric Box
34 Brushless DC Motor
Some models may not contain some parts, please refer to the actual product.
