Step Procedure

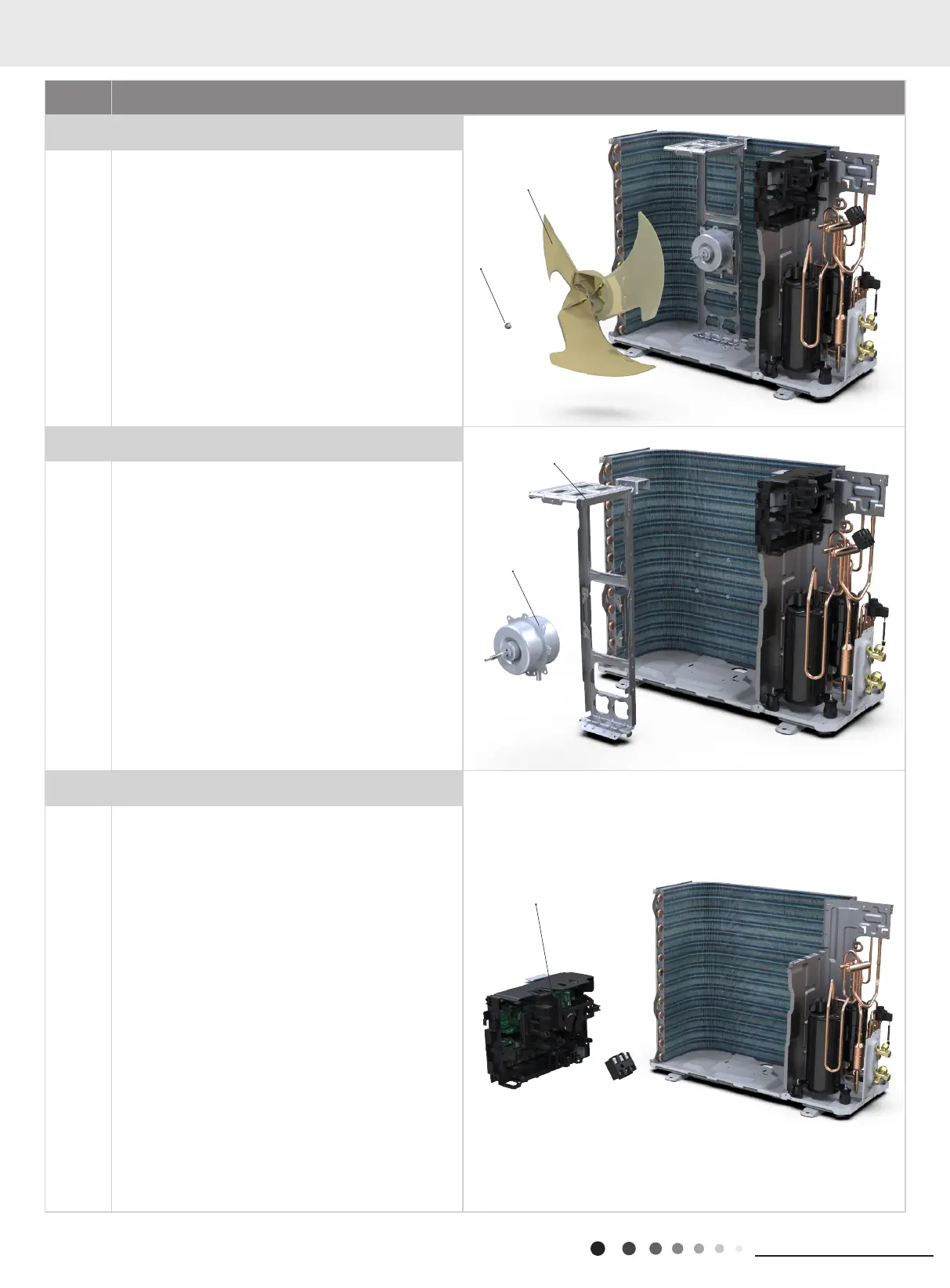

7. Remove axial ow blade
Remove the nut on the blade and then remove the axial
ow blade.
8. Remove motor and motor support
Remove the tapping screws fixing the motor and
disconnect the leading wire insert of the motor. Then
remove the motor.
Remove the tapping screws fixing the motor support
and lift the motor support to remove it.
9. Remove Electric Box Assy
Remove screws fixing the electric box subassembly;
loosen the wire bundle and unplug the wiring terminals.
Then lift the electric box to remove it.
axial ow blade
nut
motor support
motor
Electric Box Assy
