19
Service Manual
Technical Information
1
23 4567 8
9
10
11
12
13141516

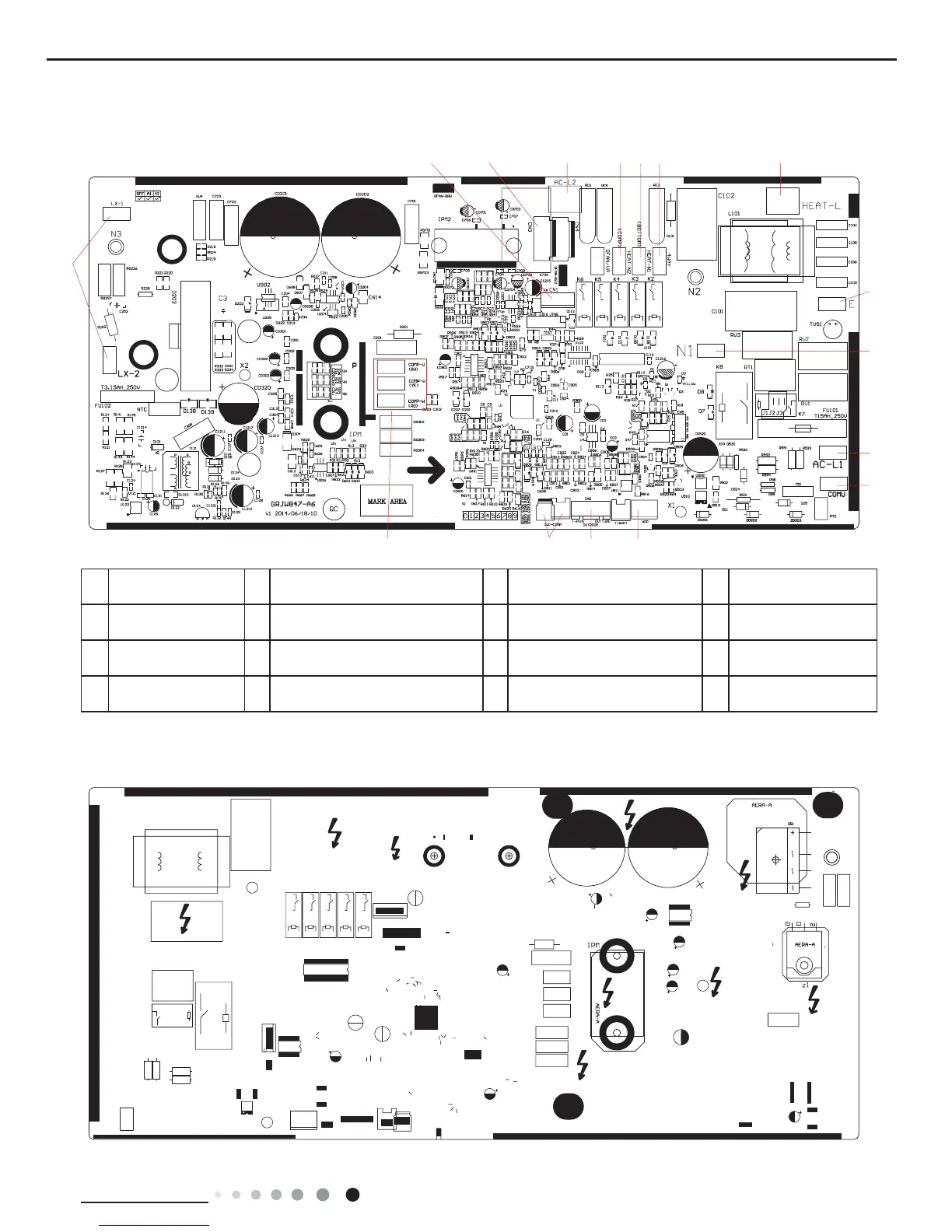

● Top view
● Bottom view
Outdoor Unit
1
Terminal of reactor
wire
5
Neutral wire interface for electric
heating of compressor
9 Earthing wire terminal 13
High-pressure switch
terminal
2
Terminal of electronic
expansion valve
6
Neutral wire interface of electric
heating belt for chassis
10 Neutral wire terminal 14
Terminal of temperature
sensor wire
3 Fan terminal 7
Neutral wire terminal of 4-way
valve
11 Live wire terminal 15
Terminal of overload
wire
4
Terminal of live wire
for 4-way valve
8
Live wire terminal of electric
heating
12
Communication wire terminal
for indoor unit and outdoor unit
16
Terminal of compressor
wire
