Gree GWH12AGB-K6DNA1A/O

54
Technical Information
Service Manual

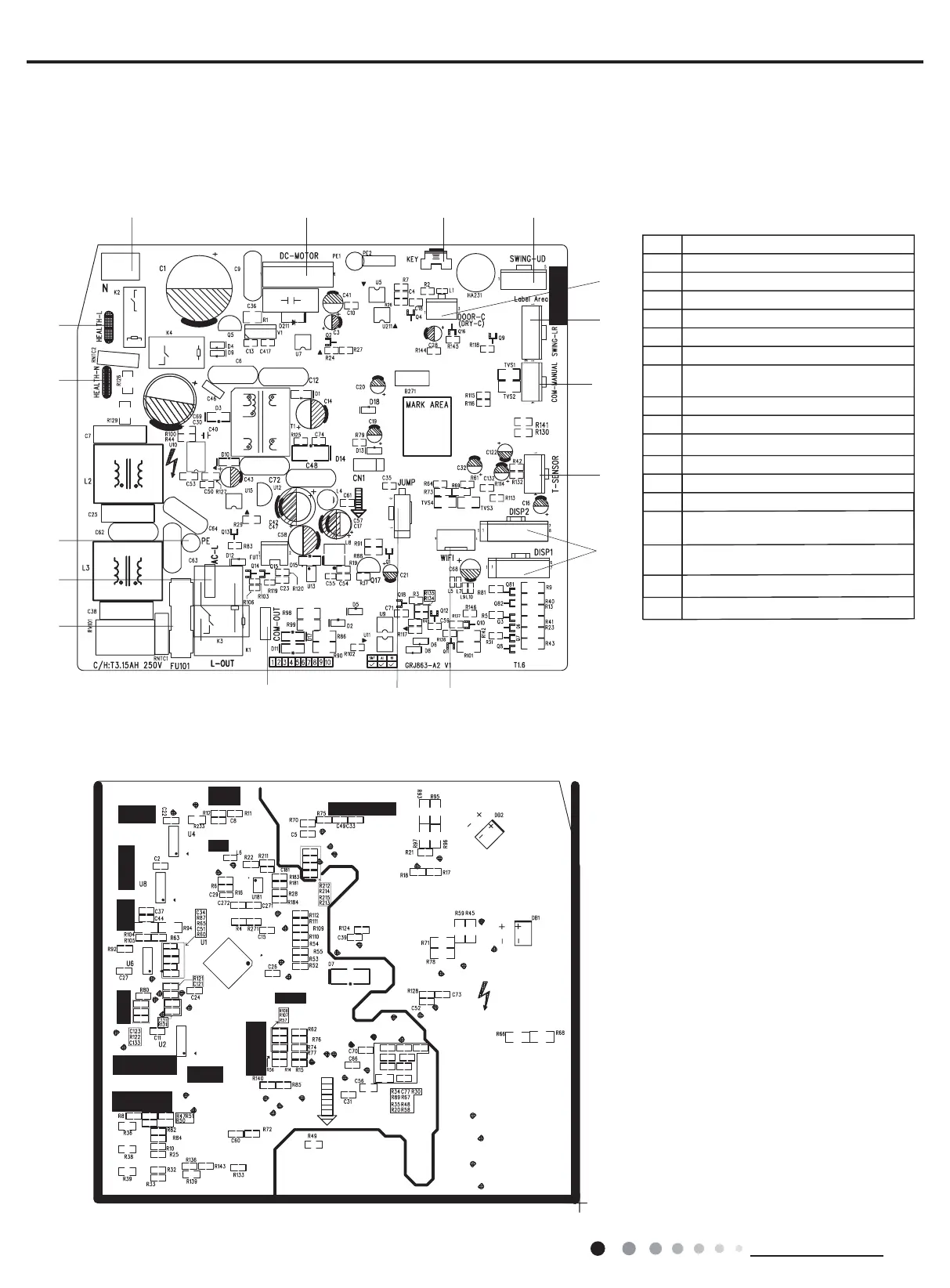

● Top view
● Bottom view
1234
5
16
6
10
7
8
913
11
12
17
14
15
No. Name
1 Neutral wire
2 Needle stand for indoor fan
3Auto button
4 Up&down swing motor
5Left&right swing motor
6Terminal of temperature sensor
7
Terminal for display board
connection
8Terminal of jumper cap
9 Communication wire
10
11 Fuse
12 Live wire interface
13 Detecting plate(WIFI )
14
15
Terminal of wired controlle
Interface of health function neutral
(only for the mode with this function)
Interface of health function live wire
(only for the mode with this function)
16 Terminal of dry contact
17 Terminal of earthing wire
GWH09QC-K6DNC2A/I GWH12QC-K6DNC2A/I GWH09QC-K6DND2A/I GWH12QC-K6DND2A/I GWH18QD-K6DND2A/I
GWH24QE-K6DND2I/I
