55

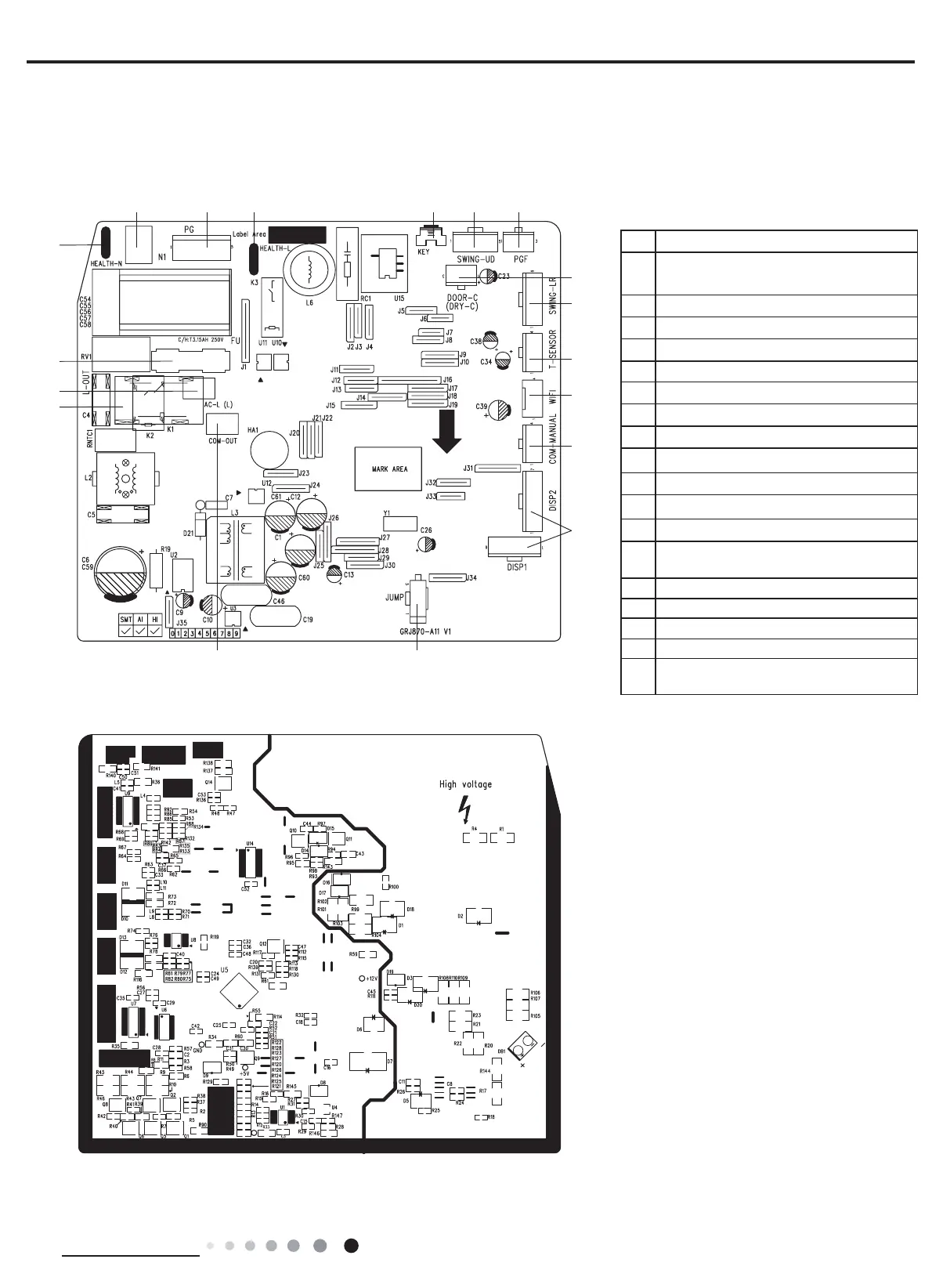

Technical Information
Service Manual
NO.ameN
Terminal of live wire used for supplying
power for outdoor unit
Terminal of live wire
Fuse
Interface of health function neutral wire
Interface of neutral wire
Up&down swing interface
Interface of PG feedback
Interface of fan
Interface of health function live wire
Auto button
Interface of gate-control
Terminal of left&right swing
sensor
Needle stand for tube temperature
5
Interface of wifi
1
2
3
4
6
7
8
10
12
13
14
15
Wired controller
16
Display interface
17
Jump
Terminal with indoor unit communication
18
wire
9
11
1
4
2
3
5
6 7 8 9 10
11
12
13
14
15
16
Top view
● Bottom view
1718
GWH09QA-K6DNB2A/I GWH12QB-K6DNB2A/I
