Technical Information
Service Manual
Outdoor Unit
09/12K for some model
4
5
6
7
8
9
1011
12
13
13
1
2
No. Name
1 Interface of compressor wire
2 Reactor wiring terminal 2
3 Reactor wiring terminal 1
4 Terminal of chassis electric heater
5
6
4-way valve terminal
7 Neutral wire
Grounding wire
8 Communication wire
9
Live wire
10 Terminal of electronic expansion valve
11 Interface of temperature sensor
12 Overload interface of compressor
13
Terminal of outdoor fan

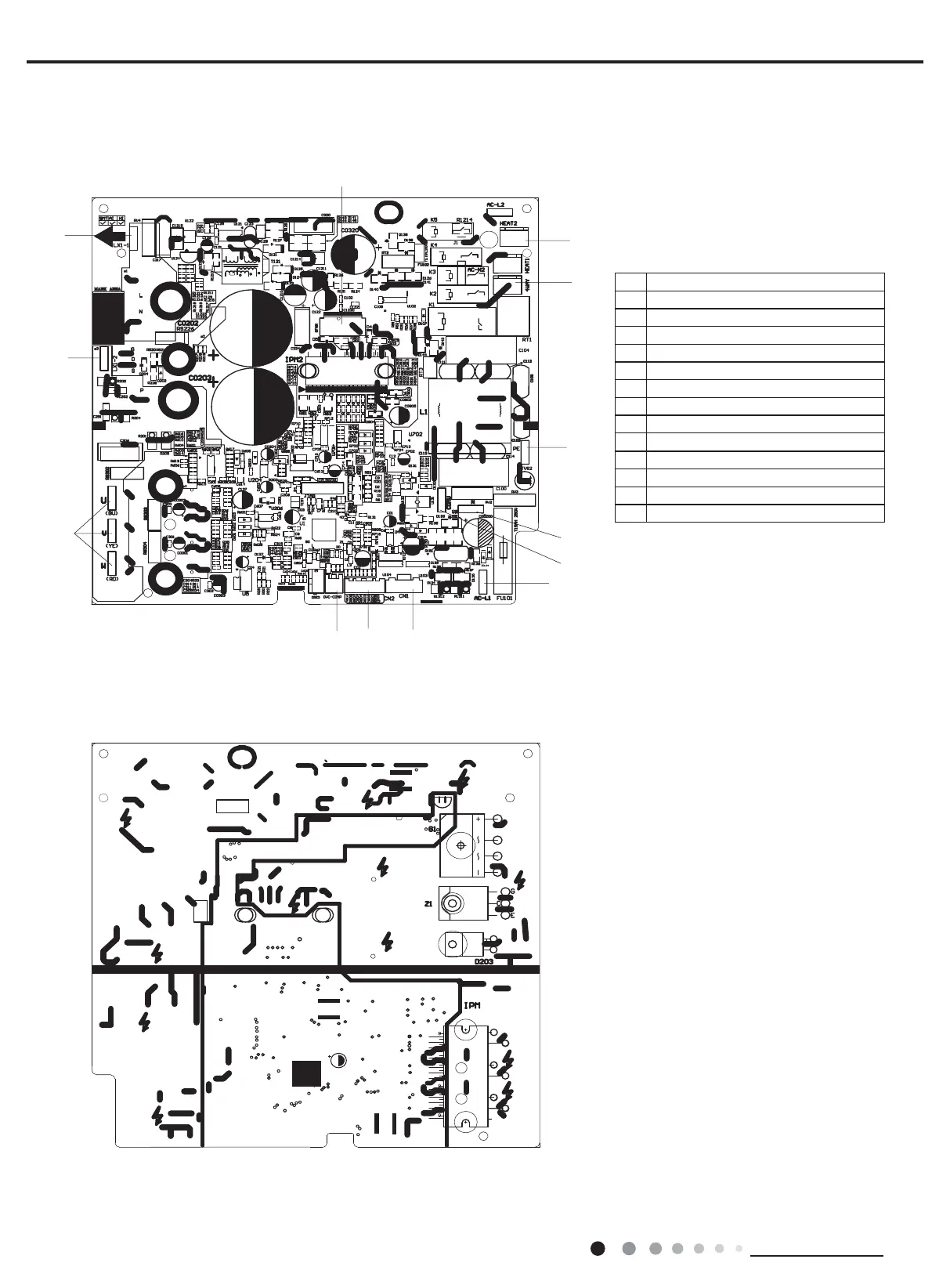

● Bottom view
To Next Page
