GREE Air-ccoled Closed Control Unit Service Manual
23

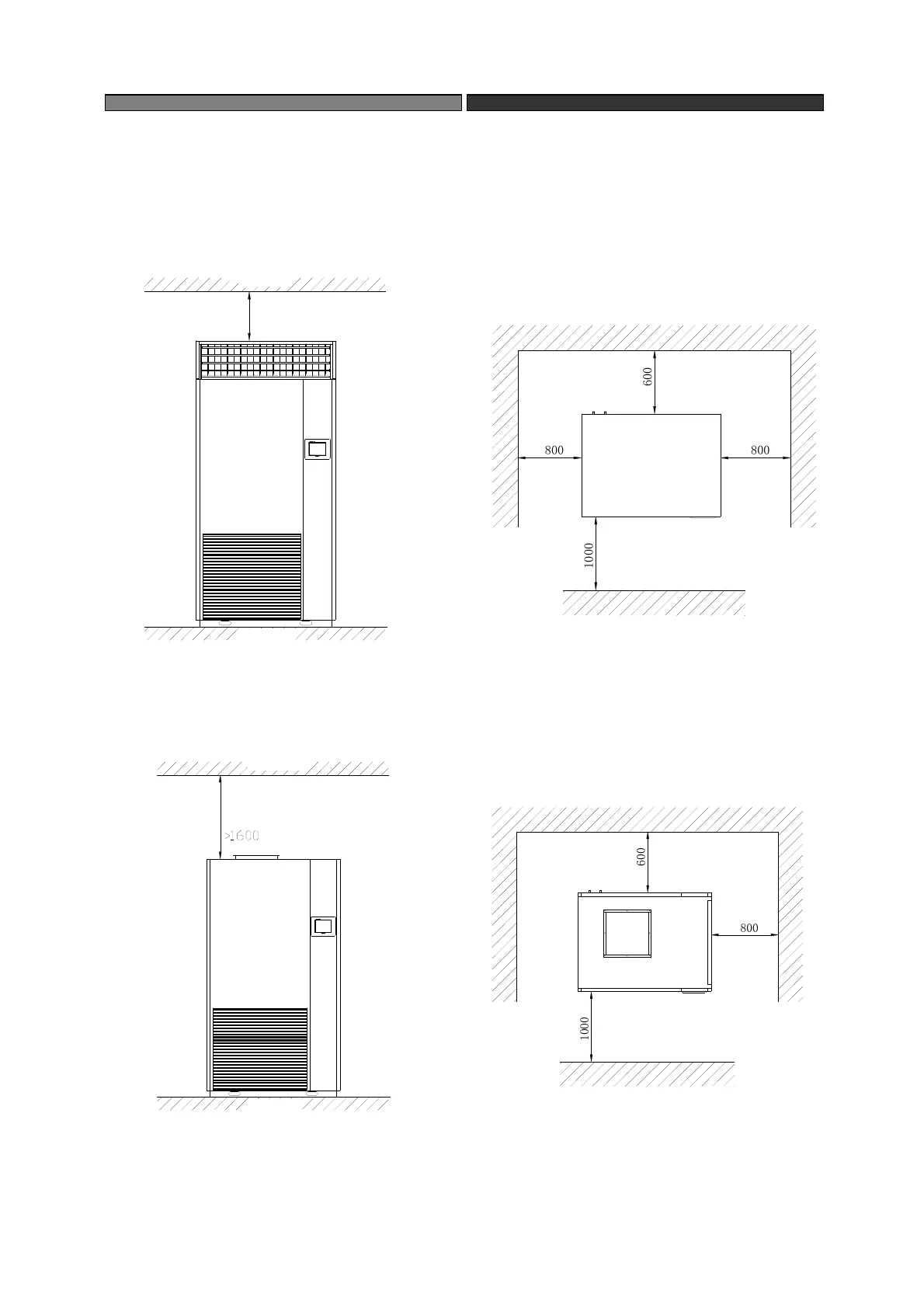

6.3 Installation Dimension and Space
6.3.1 The Installation of Indoor Unit
◆Direct Air Supply (with cowl)
>
6
0
0
>
8 0 0
>
1
0
0
0
>
8 0 0
Ceiling
Ground
Wall Face Wall Face
Wall Face
Wall Face
Facade
No Special Requirement
On Distance
◆Front Air Intake and Top Air Discharge（connecting with air duct）
>
6
0
0
>
8 0 0
>
1
0
0
0
Ceiling
The Recommended Length of
Air Duct Used in Engineering Project
mm
Ground
Wall Face
Wall Face
Wall Face Wall Face
Facade
