GREE Air-ccoled Closed Control Unit Service Manual
48
2.4 Running Status Interface

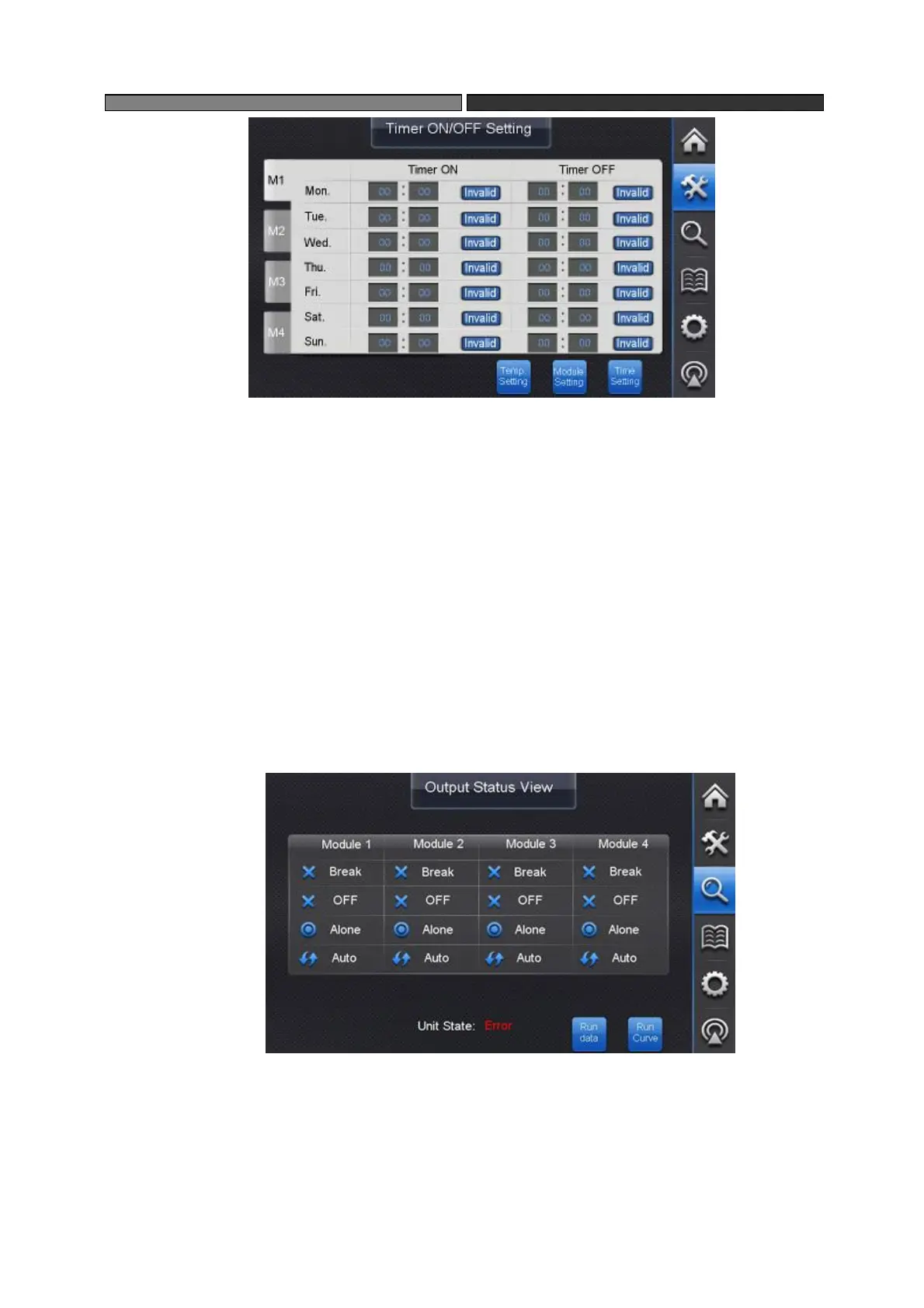

（1）Output Status View
This interface displays the running information of each module (e.g. Connected
/Disconnected, On/Off, Entire control/ Independent operation, Auto operation / Manual
operation, Normal / Error, Emergency).
“Emergency” will not arise in normal running status unless the unit is in emergency running
status.
Slightly press the button “Run Data” to enter the interface of “Data Inquiry”. Slightly press
the button “Run Curve” to enter the interface of “Running Curve Inquiry”. Slightly press the
button “History Curve” to enter the interface of “History Curve Inquiry”.
（2）Data Inquriy
The current inquired module, including the on/off status and parameters of each part, is
displayed. Press the button of “Switch Module” to switch the data from module 1 to module 4.
On this page, running status and parameters of each key part can be viewed, including the
